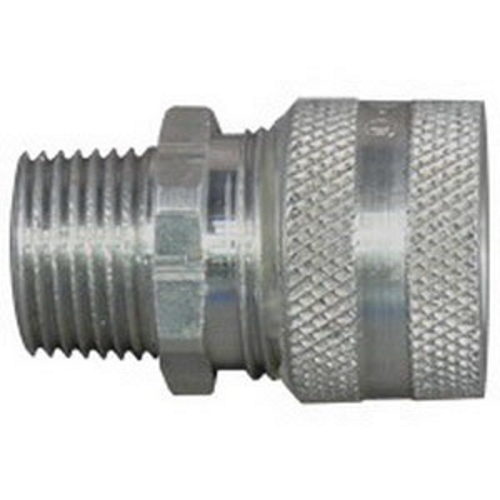

Straight Liquidtight Strain Relief Connector, Size: 3 IN, Conductor Range: 2-1/2 - 2.843 IN, Material: Aluminum, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 4.06 IN Height, Standard: Class I, Division 2, Class II, Divisi

Manuals & Documentation
Catalog Number CG-250300
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
Conductor Range 2-1/2 - 2.843 IN
Connection Threaded Hub
Material Aluminum
NEMA Rating 3R
Special Features For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet
Standard Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817
UPC 781381448291
GTIN 00781381448291
Item Type Straight Liquidtight Strain Relief Connector
Size 3
