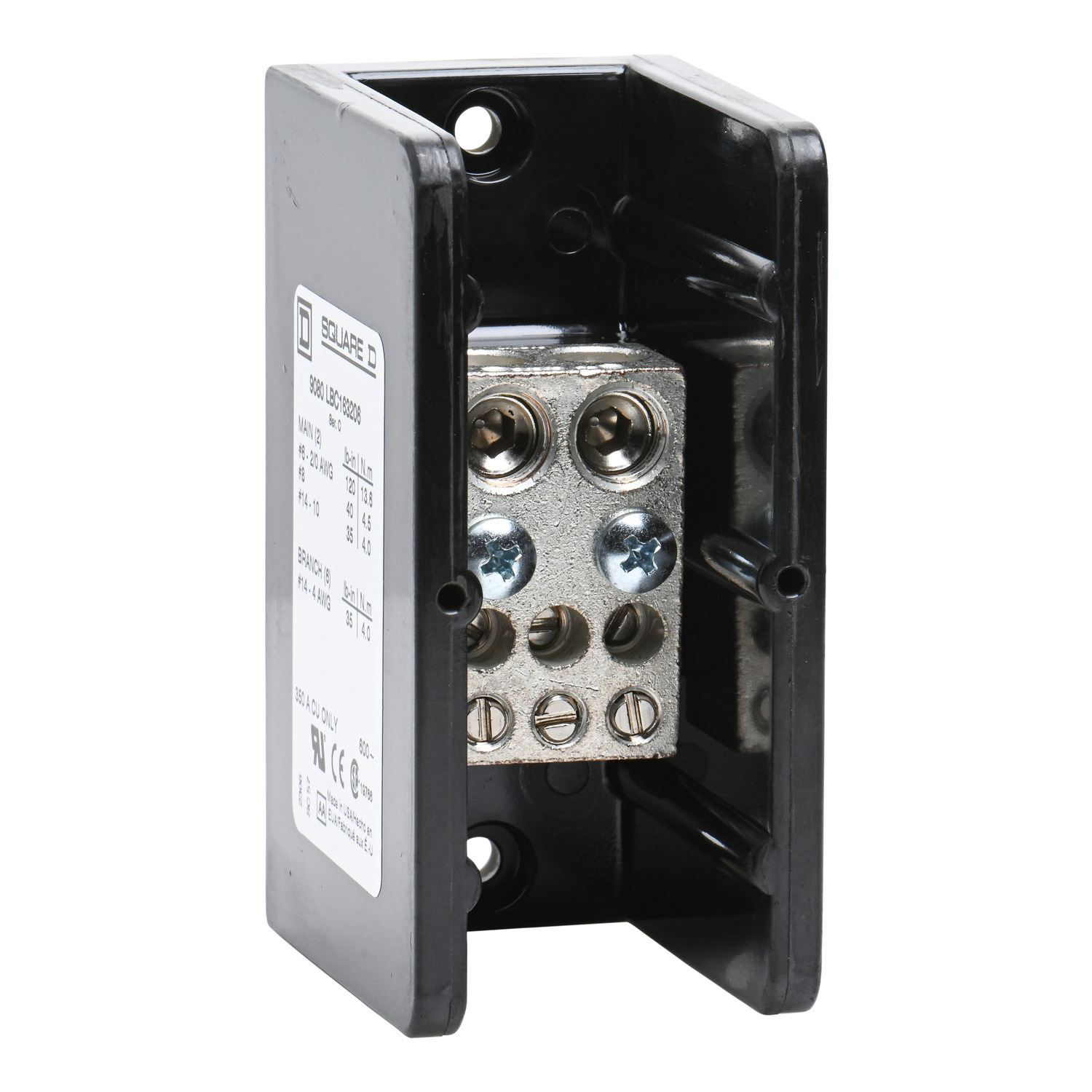

Power distribution block, Linergy, 1 pole, 2 line, 6 load, 350A Cu, 600V
- MFR:
- Schneider Electric
- MFR #:
- 9080LBC163206
- UPC:
- 785901097624
- Item #:
- 248507
Power distribution block, Linergy, 1 pole, 2 line, 6 load, 350A Cu, 600V
- MFR #:
- 9080LBC163206
- UPC:
- 785901097624
- Item #:
- 248507

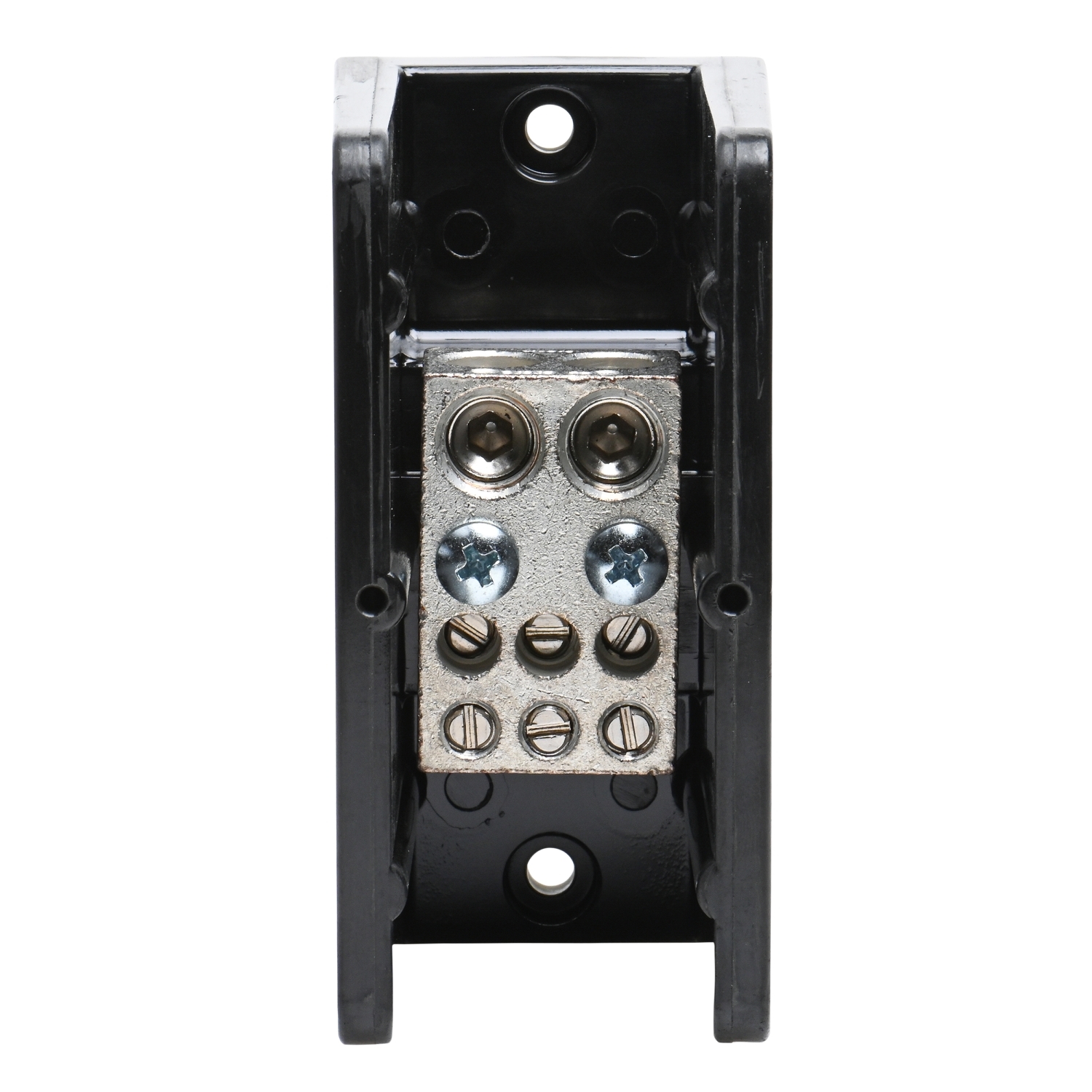

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper wire. The load side lug is rated to accept one #14 to #4 copper wire. The lugs are made of copper. The lugs are rated for 350 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals & Documentation
| Catalog Number | 9080LBC163206 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |

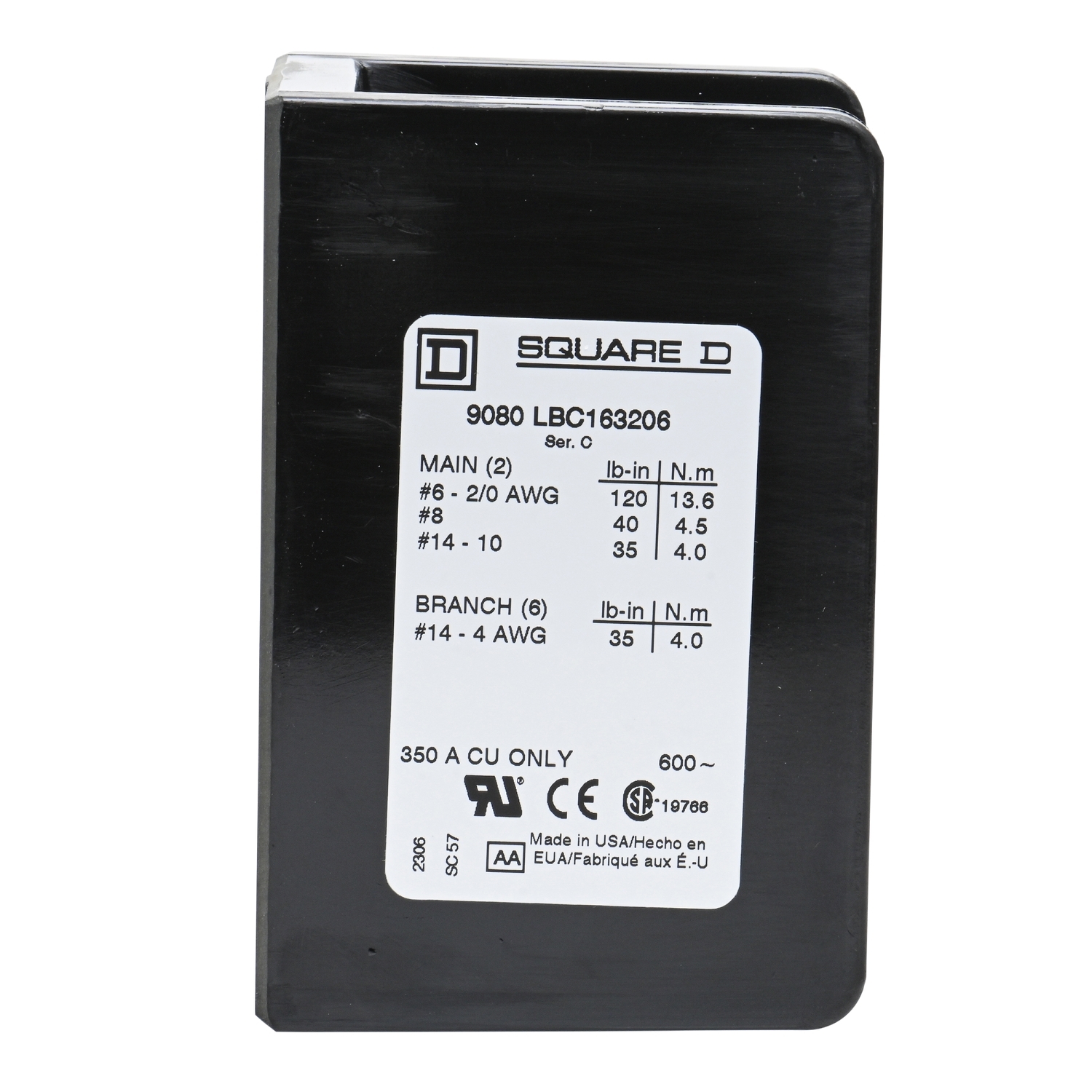

| Connection | Tin plated copper lugs;Line lug 40 lbf.in AWG 8 copper;line lug 35 lbf.in AWG 14...AWG 10 copper;line lug 120 lbf.in AWG 6...AWG 2/0 copper;load lug 35 lbf.in AWG 14...AWG 4 copper |
| Material | Phenolic: block |
| Mounting | Surface |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373021&lang=en-us |
| UPC | 785901097624 |
| GTIN | 00785901097624 |
| Item Type | Power Distribution Block;9080LB31 |
| Width | 1.94 |
| Width UOM | Inch |
| Height | 4.0 |
| Height UOM | Inch |
| Depth | 2.61 IN |
