ACME ELECTRIC

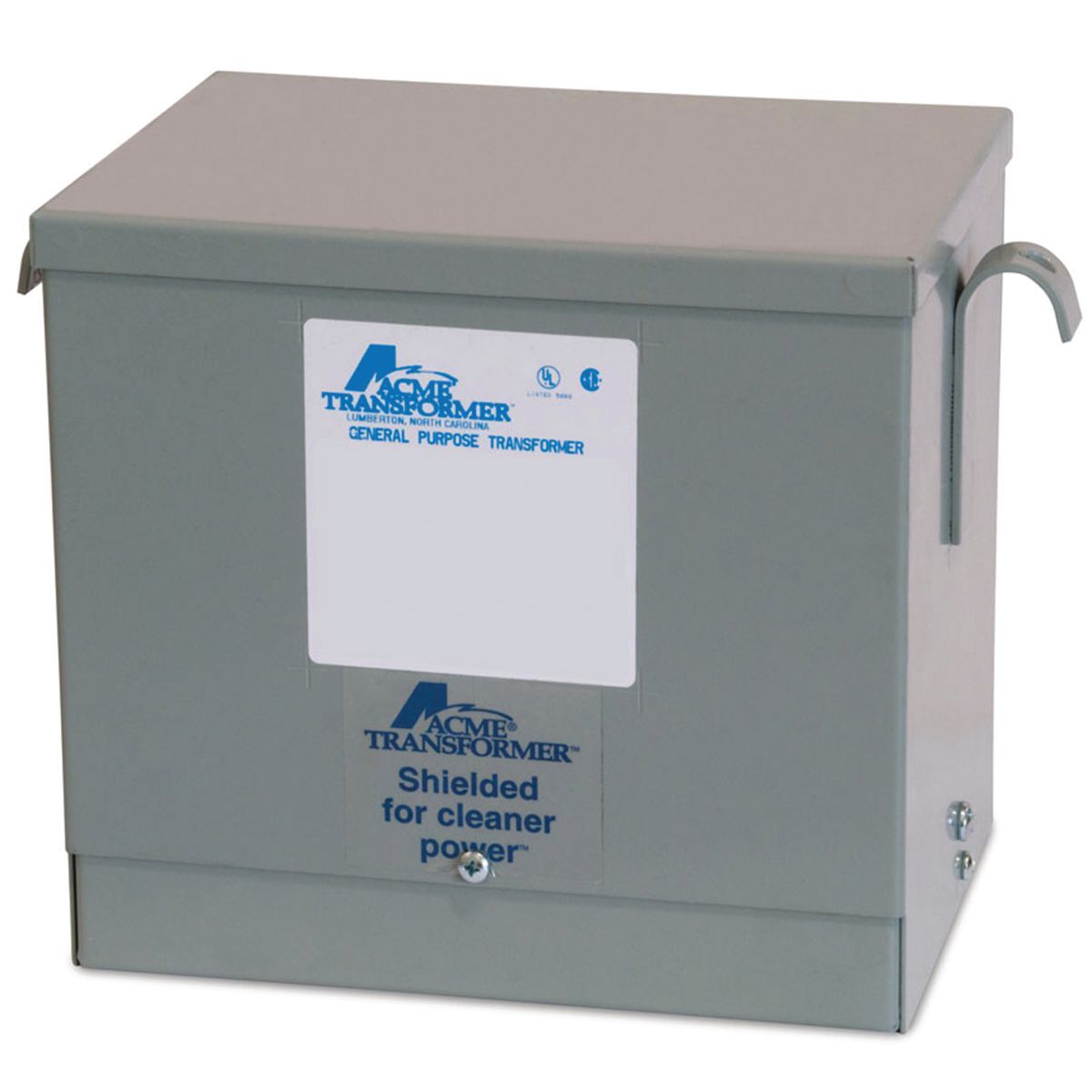

T2A533101S Air Colled/Dry Distribution Transformer, 480D V AC Primary, 208Y/120 VAC Secondary, 9 kVA Power Rating, 60 Hz, 3 Phase

MFR:
Acme Electric, a Hubbell affiliate
MFR #:
T2A533101S
UPC:
047503733608
Item #:
24827
Manuals & Documentation
Catalog Number T2A533101S
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin Mexico
Made in USA No
Enclosure NEMA 3R Steel
Frequency Rating 60 HZ
Mounting Wall
Primary Voltage 480D V
Secondary Voltage 208Y/120 V
Special Features Encapsulated core and coil; Completely enclosed suitable for indoor/outdoor service; Consult selection charts for details; Excellent for dust or lint laden atmosphere; Encapsulated electrical grade silica and resincompound completely encloses the core and coil; Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration; High efficiency and excellent regulation; Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation; Wiring connections can be made outside of wiring compartment due to the use of flexible leads; Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation; Electrostatic shielding; Energy efficient; 10-year limited warranty; 'For Harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and where painted cold roll steel is not adequate
Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number H3221, CSA Certified, NEC Class 1, Division 2, NEC 501-2 (b), OSHA Compliant, ANSI, IEEE
UPC 047503733608
GTIN 00047503733608
Item Type Distribution Transformer
Length 11.52
Length UOM Inch
Width 17.77
Width UOM Inch
Height 14.03
Height UOM Inch
Temperature Rating 115 DEG C Rise
