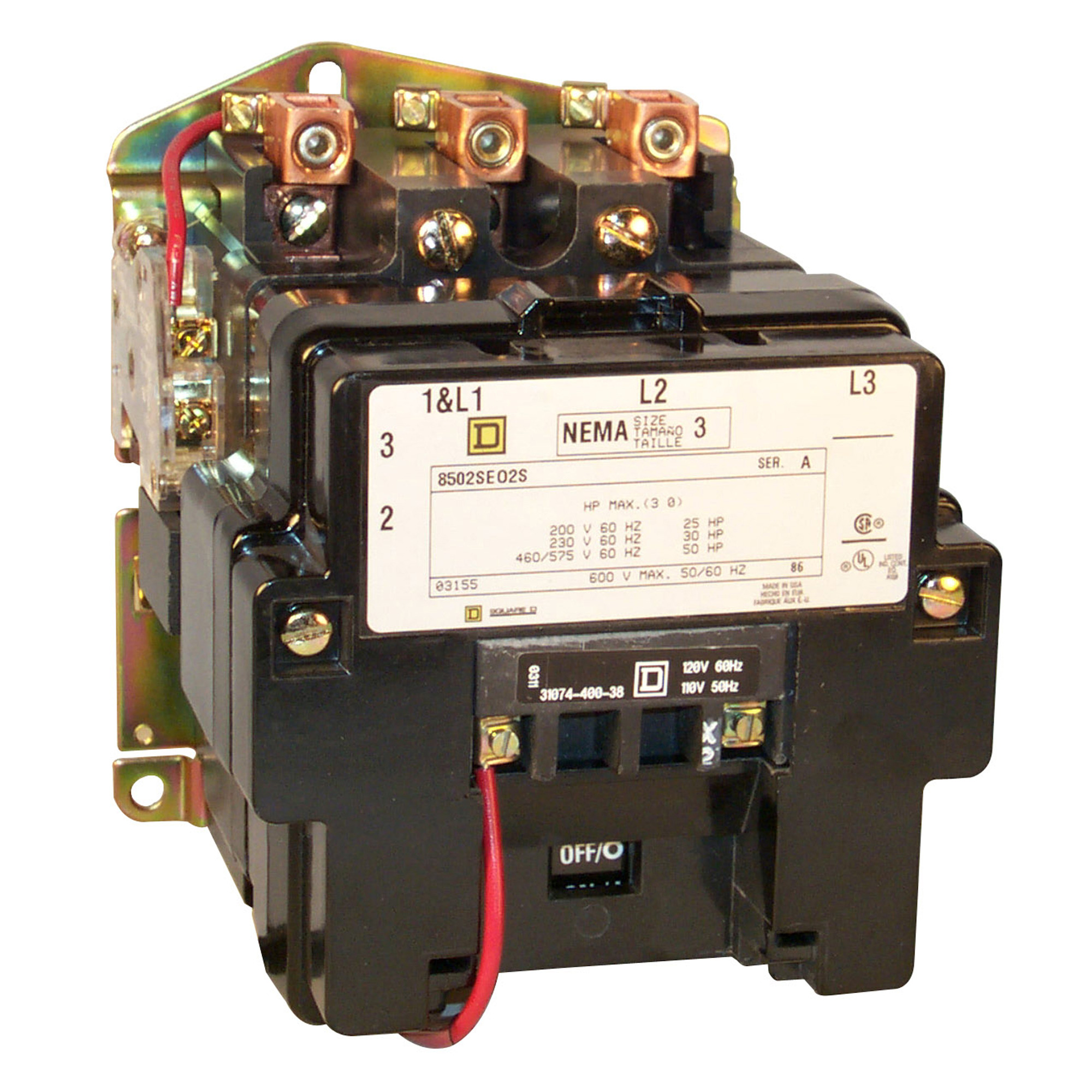

8502SEO3V02S 3-Phase Type S Non-Reversing Contactor, 110/120 V AC V Coil, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- 8502SEO3V02S
- UPC:
- 785901018704
- Item #:
- 248201
8502SEO3V02S 3-Phase Type S Non-Reversing Contactor, 110/120 V AC V Coil, 4 Poles
- MFR #:
- 8502SEO3V02S
- UPC:
- 785901018704
- Item #:
- 248201
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 4 pole NEMA Size 3 non-reversing contactor has a 90 ampere rating. Three phase NEMA Size 3 contactors have 25 HP at 200, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 7.88 inches tall, 9.75 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8502SEO3V02S |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901018704 |
| GTIN | 00785901018704 |
