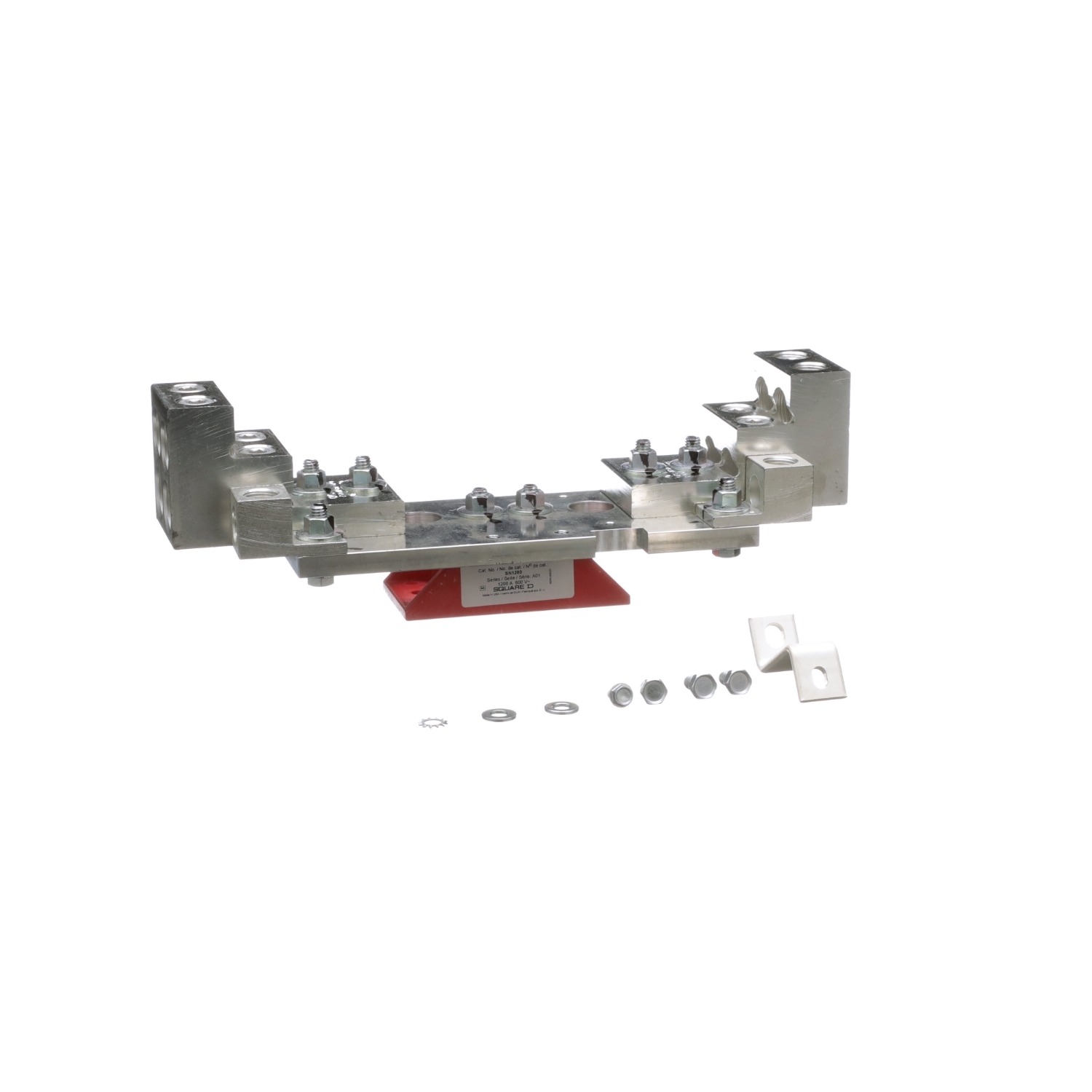

SN1200 Groundable Insulated Neutral Assembly Kit, For Use With PGL, PJL, PKL and PLL Circuit Breaker, 400 to 1200 A, NEMA 1/3R
- MFR:
- Schneider Electric
- MFR #:
- SN1200
- UPC:
- 785901399742
- Item #:
- 2464
SN1200 Groundable Insulated Neutral Assembly Kit, For Use With PGL, PJL, PKL and PLL Circuit Breaker, 400 to 1200 A, NEMA 1/3R
- MFR #:
- SN1200
- UPC:
- 785901399742
- Item #:
- 2464
PowerPacT M- and P-Frame circuit breakers are designed to protect electrical systems from damage cause by overloads, short circuits, and ground faults. PowerPacT circuit breaker enclosures have a wide range of field installable accessories to allow customers to reduce inventory without sacrificing flexibility. This solid neutral assembly is one of those accessories which can be used in either the PowerPacT M, 800A enclosure or the PowerPacT P, 1200A enclosure. The PowerPact M-, P-Frame circuit breakers are dual rated to UL489 and IEC 60947-2. This solid neutral assembly is insulated and groundable. It has four terminals in and four terminals out, with two additional grounding terminal. Each terminal accepts 3/0 AWG to 500kcmil. This accessory complies with UL and CSA standards
Manuals & Documentation
| Catalog Number | SN1200 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423259590&lang=en-us |
| UPC | 785901399742 |
| GTIN | 00785901399742 |
| Cross Reference Products | Eaton INK1200 |
