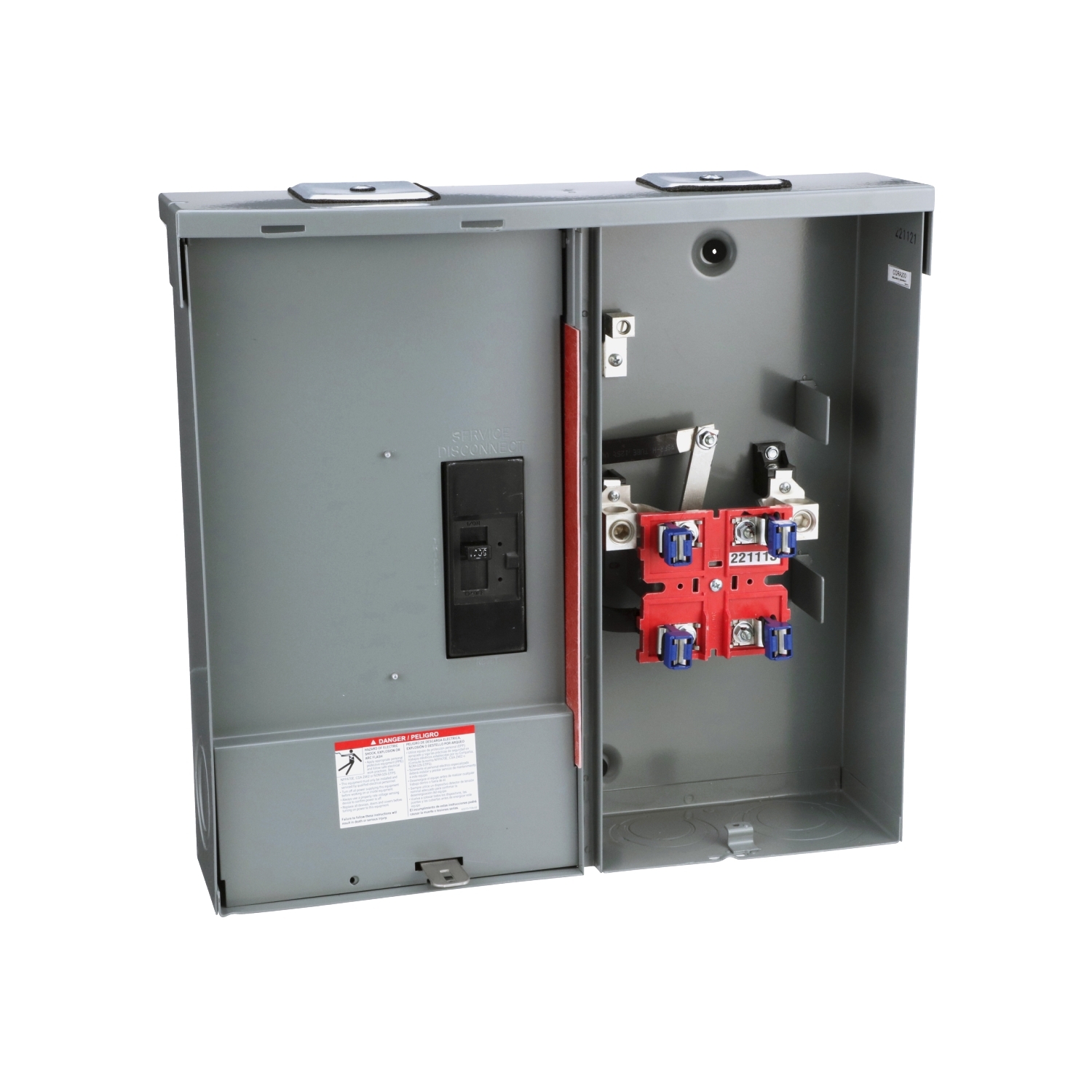

CQRA200 Main Breaker Meter Socket, 120/240 V AC, 200 A, One Phase phase, NEMA 3R enclosure
- MFR:
- Schneider Electric
- MFR #:
- CQRA200
- UPC:
- 047569291807
- Item #:
- 246166
CQRA200 Main Breaker Meter Socket, 120/240 V AC, 200 A, One Phase phase, NEMA 3R enclosure
- MFR #:
- CQRA200
- UPC:
- 047569291807
- Item #:
- 246166
Square D Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these.
Manuals & Documentation
| Catalog Number | CQRA200 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357223&lang=en-us |
| UPC | 047569291807 |
| GTIN | 00047569291807 |
| Width | 19.58 |
| Width UOM | Inch |
| Height | 18.23 |
| Height UOM | Inch |
| Depth | 4.37 IN |
