ACME ELECTRIC

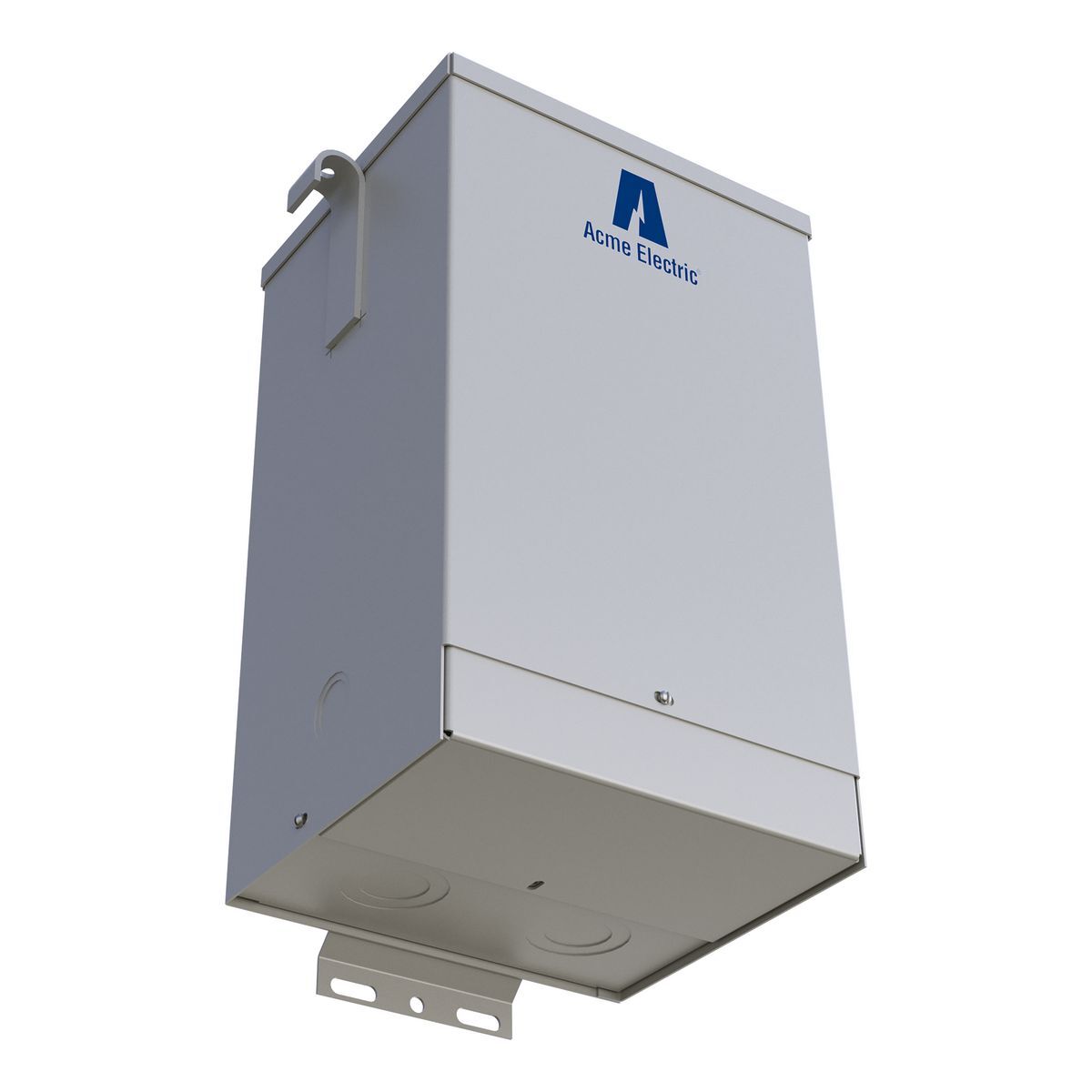

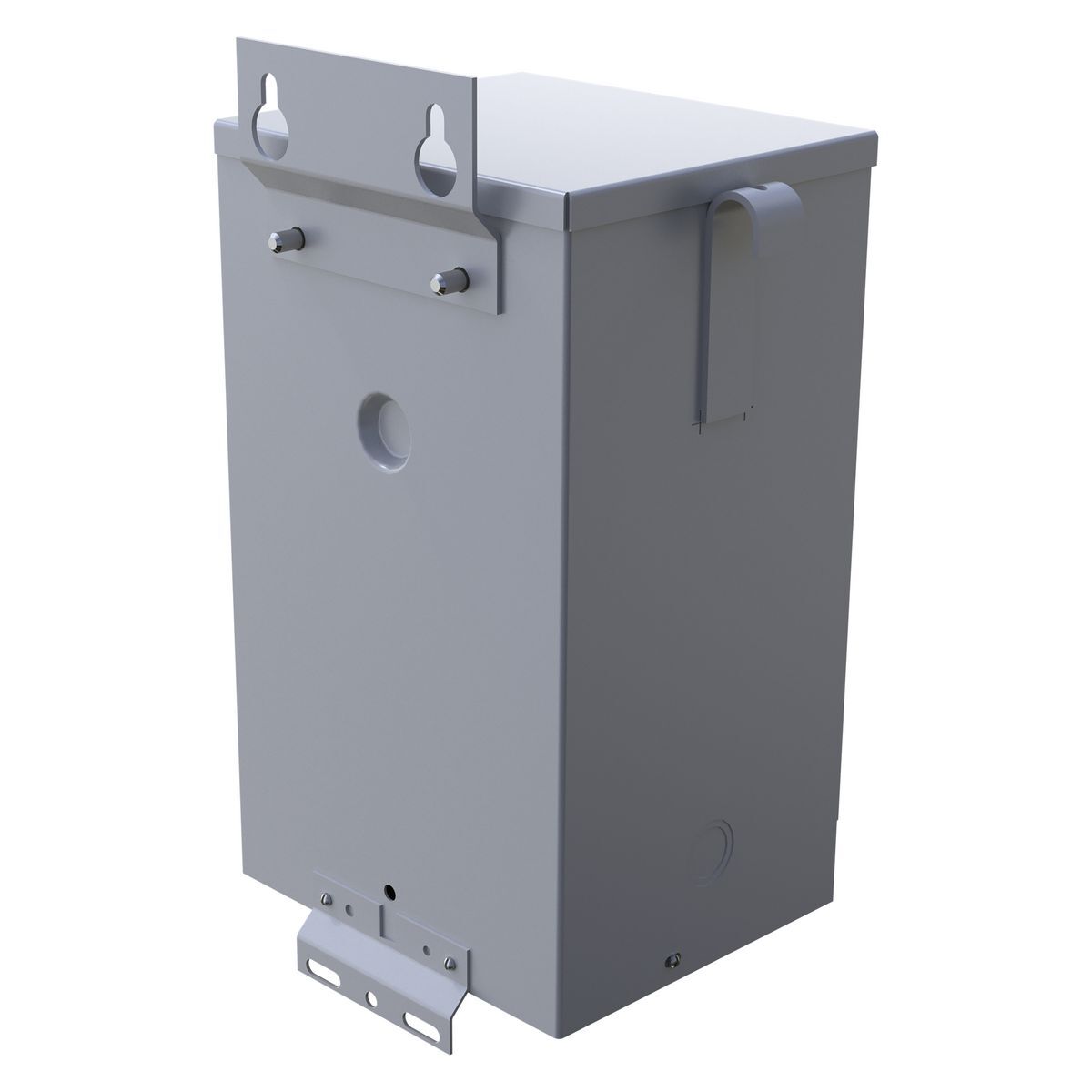

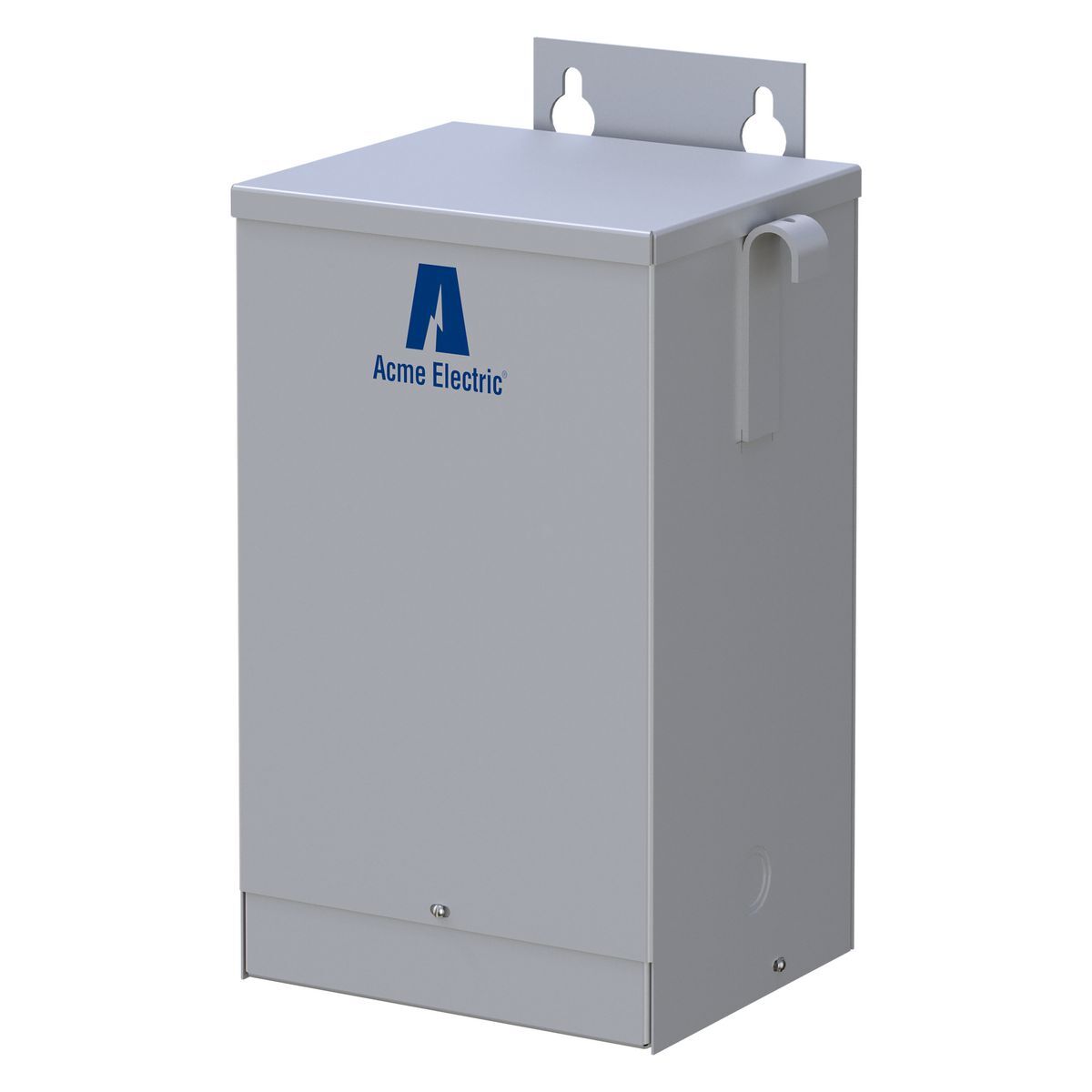

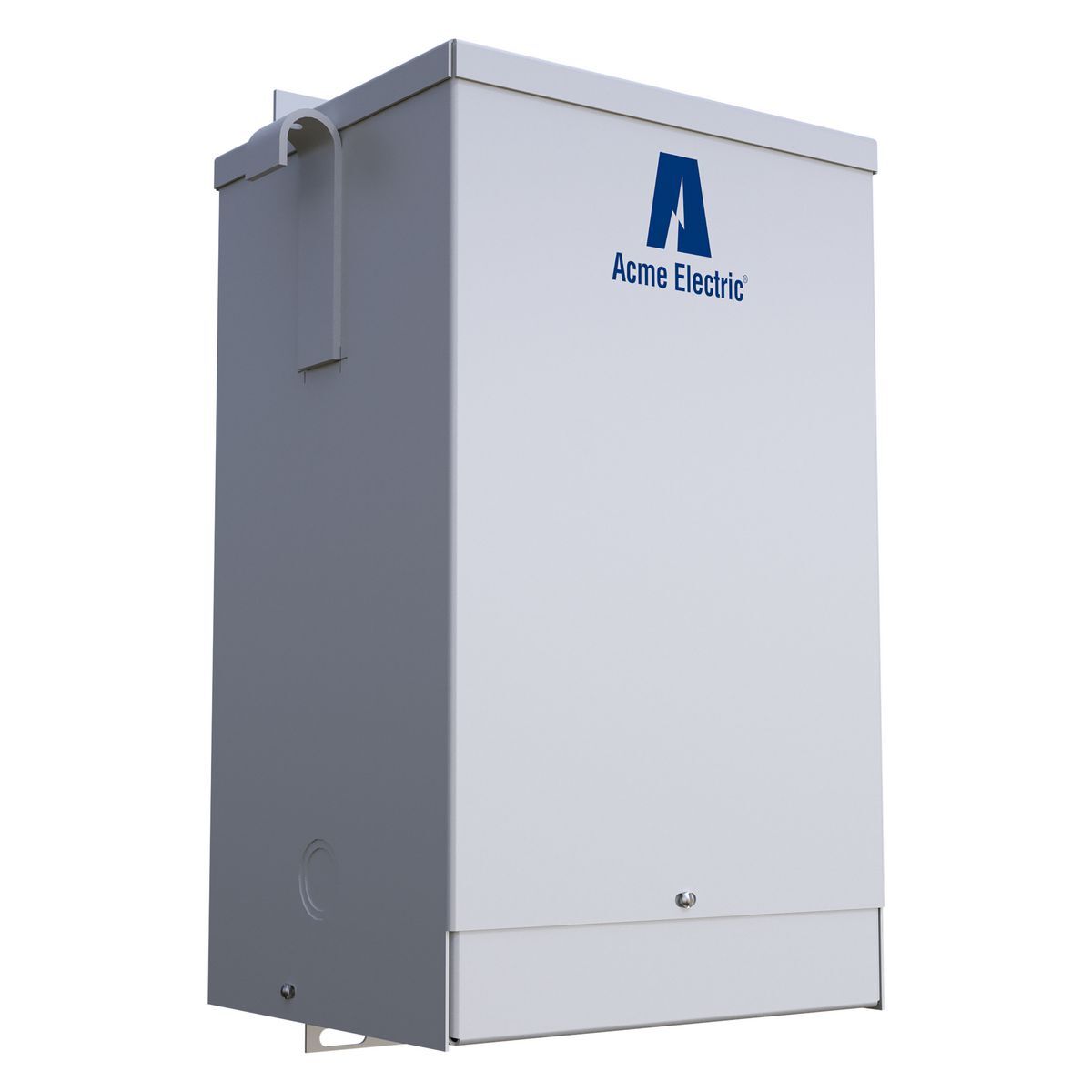

GP123000S Air Colled/Dry Distribution Transformer, 277/480 V AC Primary, 208/277 VAC Secondary, 3 kVA Power Rating, 60 Hz, 1 Phase

MFR:
Acme Electric, a Hubbell affiliate
MFR #:
GP123000S
UPC:
047503086520
Item #:
244021
Manuals & Documentation
Catalog Number GP123000S
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin Mexico
Made in USA No
Enclosure NEMA 3R Steel
Frequency Rating 60 HZ
Mounting Wall
Primary Voltage 277/480 V
Secondary Voltage 208/277 V
Special Features Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; Regulation: 2.7 PCT at 100 PCT PF; Impedance: 3.12 PCT; No load losses: 103.8 WTT; Full load losses: 185.1 WTT; 10-year limited warranty
Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE
UPC 047503086520
GTIN 00047503086520
Item Type Distribution Transformer
Length 7.13
Length UOM Inch
Width 10.31
Width UOM Inch
Height 11.5
Height UOM Inch
Temperature Rating 115 DEG C Rise
