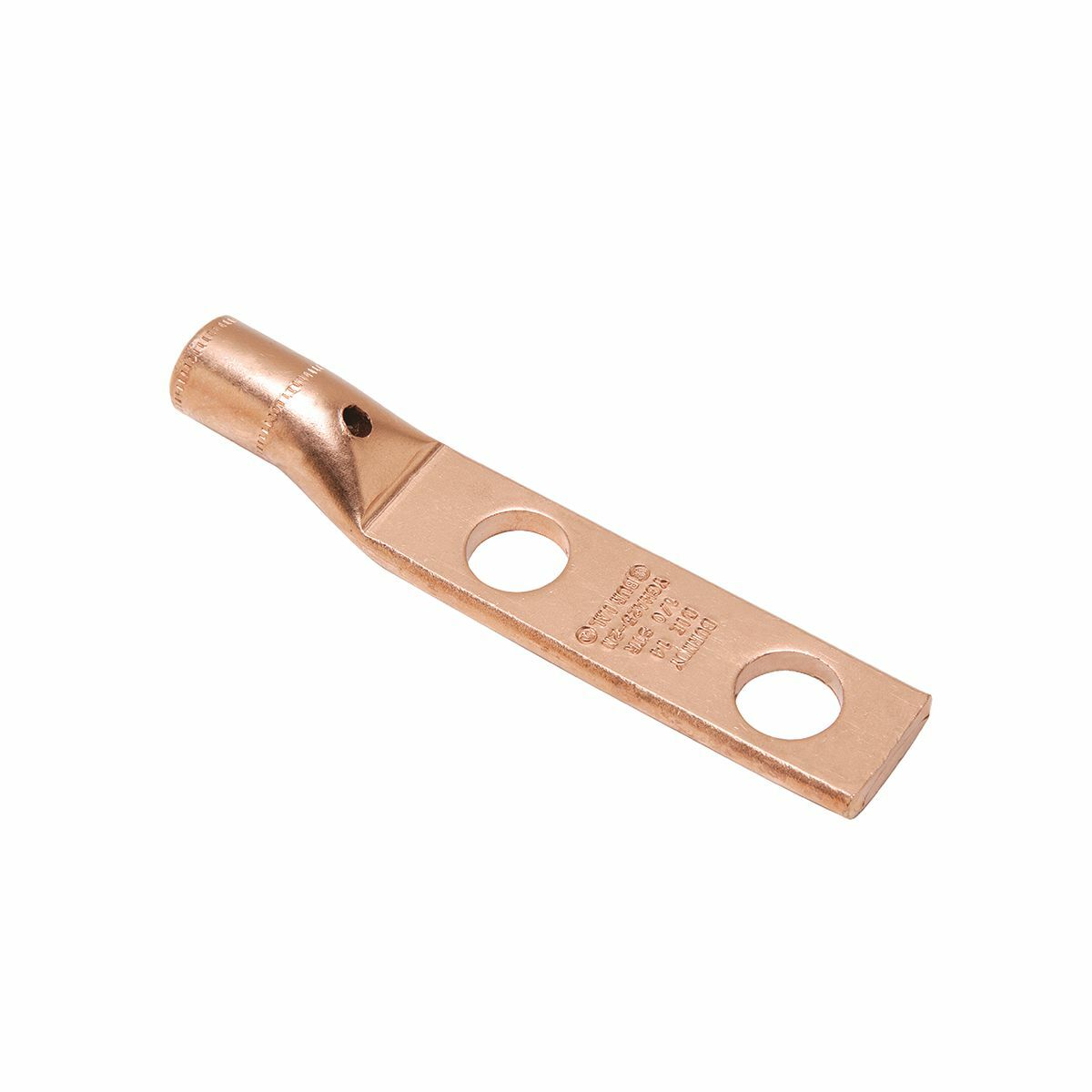

YGHA342N 2-Hole Heavy Duty Irreversible Compression Lug With Inspection Probe Hole, 500 kcmil Stranded Copper Conductor, Die Code: 22, 1/2 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YGHA342N
- UPC:
- 781810220399
- Item #:
- 243987
YGHA342N 2-Hole Heavy Duty Irreversible Compression Lug With Inspection Probe Hole, 500 kcmil Stranded Copper Conductor, Die Code: 22, 1/2 in Stud, Copper
- MFR #:
- YGHA342N
- UPC:
- 781810220399
- Item #:
- 243987
Manuals & Documentation
| Catalog Number | YGHA342N |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Direct Burial In Earth Or Concrete, Grounding Applications |
| Material | Copper |
| Special Features | Features: Heavy Duty HYLUG Irreversible Compression Terminals Designed Not Only To Carry Short Circuit Load, But To Also Withstand High Mechanical Stress, Each Conductor Element Has An Inspection Probe Hole To Ensure Proper Cable Insertion, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, UL486A Listed, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U36RT Die, (3), Y45 Tool, U36RT Die With PT-6515 Adapter, (3), Y46 Tool, U36RT Die With PUADP-1 Adapter, (3), Die Index: 22, Conductor Type: Copper |
| Standard | UL467;UL 486A-486B;IEEE 837 |
| UPC | 781810220399 |
| GTIN | 00781810220399 |
| Item Type | Terminals |
