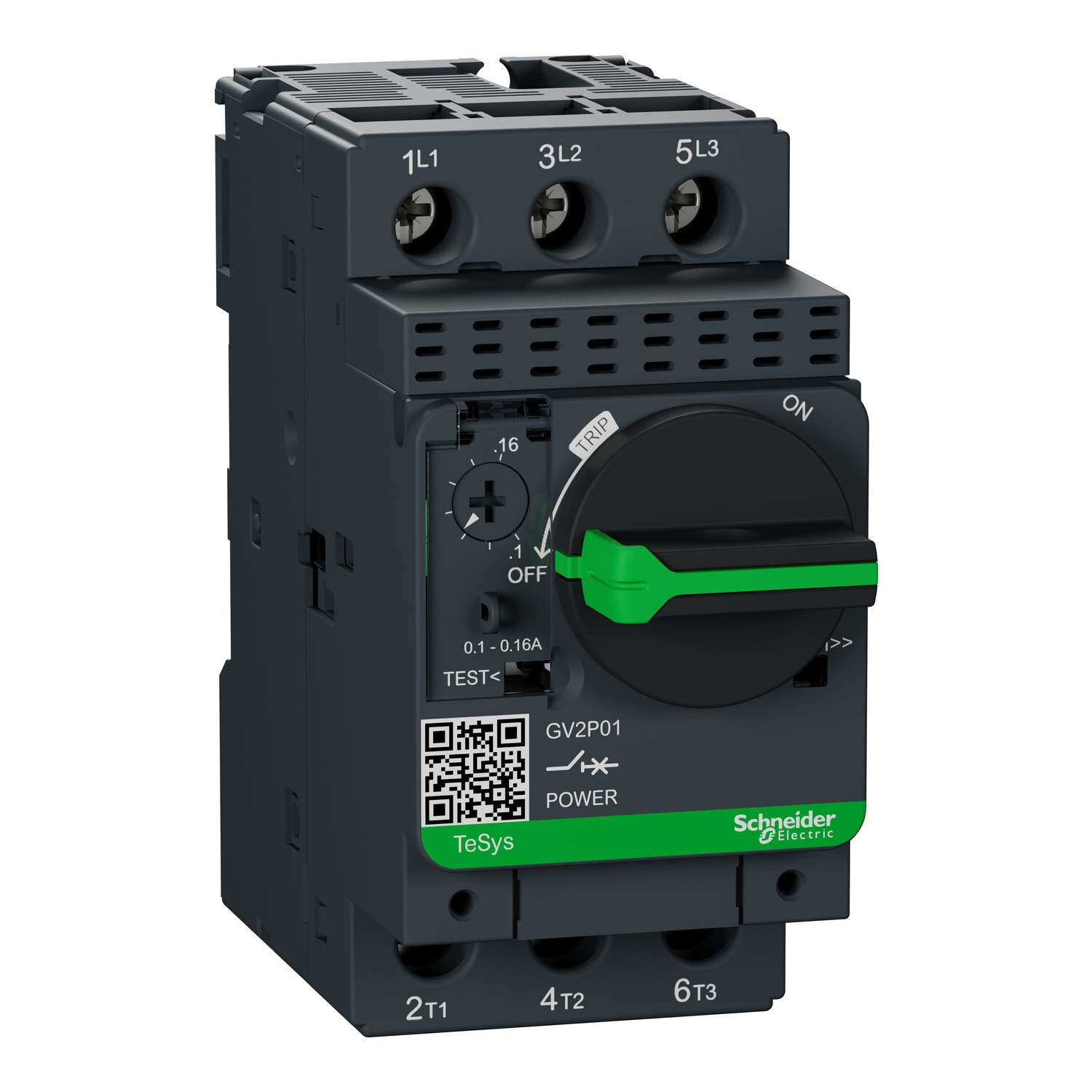

TeSys GV motor circuit breaker, 3 poles (3P), 0.16A/690V, for 3-phase motor applications less than 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Manuals & Documentation
Catalog Number GV2P01
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Thailand
Made in USA No
Color Dark Gray
Mounting Horizontal;Vertical
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607710&lang=en-us
GTIN 03389110213409
