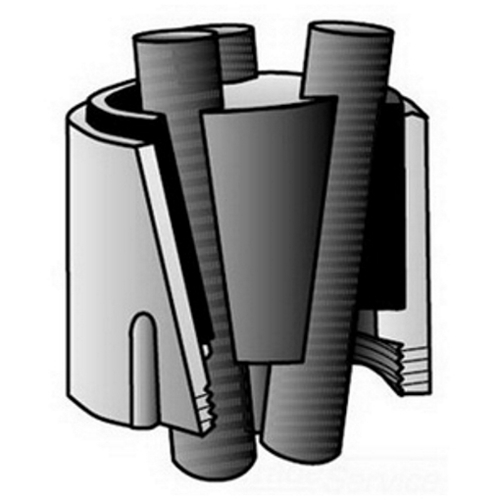

S-4000-2 1-Piece Retrofit Cable Support With Pozi-Grip S-Style Wedging Plug, 4 in, Surface Mount, Ductile Iron/Malleable Iron
- MFR:
- O-Z/Gedney
- MFR #:
- S-4000-2
- UPC:
- 783126022674
- Item #:
- 24160
S-4000-2 1-Piece Retrofit Cable Support With Pozi-Grip S-Style Wedging Plug, 4 in, Surface Mount, Ductile Iron/Malleable Iron
- MFR #:
- S-4000-2
- UPC:
- 783126022674
- Item #:
- 24160
Manuals & Documentation
| Catalog Number | S-4000-2 |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Rigid Conduit, IMC And EMT Conduit With POZI-Grip S-style Wedging Plug |
| Material | Body Of Fitting: Malleable Or Ductile Iron |
| Special Features | Any number of different size wires (5) or more same size wires; Supports non-armored electrical cables in vertical conduit risers; For threadless rigid conduit, threadless IMC or EMT the body can be attached to the male threads of a set-screw or compression connector; For PVC conduit, use a PVC terminal adapter; If mounting on a non-metallic/non-grounded conduit, a Lay-In-Lug grounding lug should be mounted on cable support body; Use with all types of insulations at voltages to and including 600 V; Fastest and easiest type cable support to install; The knurled insulating inner surface and one piece impregnated hardwood pOZi-grip plug provide positive support well in excess of code requirements |
| Standard | Third Party Certification: UL File Number E-11853, CSA 11584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, NEC 300-19 |
| UPC | 783126022674 |
| GTIN | 00783126022674 |
| Item Type | Type S Threaded Cable Support |
| Size | 4 |
