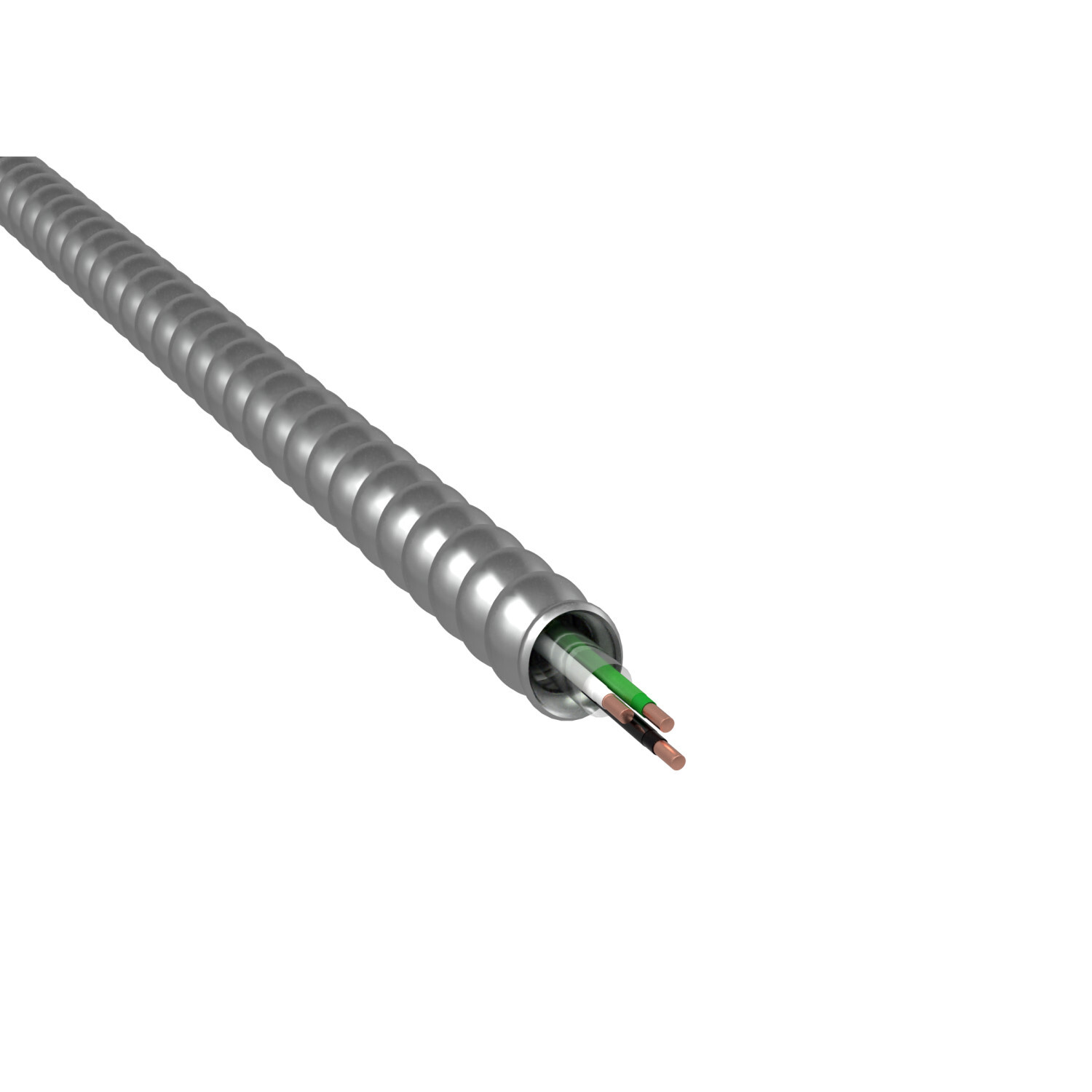

2160S60-01 MC Lite Type MC Traditional Armored Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (4) 12 AWG Stranded Copper Conductor, 1000 ft L
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- 2160S60-01
- UPC:
- 077680230638
- Item #:
- 241167
2160S60-01 MC Lite Type MC Traditional Armored Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (4) 12 AWG Stranded Copper Conductor, 1000 ft L
- MFR #:
- 2160S60-01
- UPC:
- 077680230638
- Item #:
- 241167
Atkore's aluminum interlocked armor Type MC cables are named MC Lite and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.
Manuals & Documentation
| Catalog Number | 2160S60-01 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC CABLE SYSTEMS |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Color | Plain |
| Conductor Material | Copper |
| Insulation Material | THHN |
| Number of Conductors | 5 |
| Special Features | Interlocking Aluminum Strip, utlizilizing ColorSpec® ID System |
| Standard | UL 83, 1479, 1569, 1581, 2556 File Numbers E80042 And R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant |
| Stranding | Stranded |
| UPC | 077680230638 |
| GTIN | 00077680230638 |
| Item Type | MC Lite® Aluminum Armored Cable |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.1694 LB/FT |
| Outside Diameter | 0.613 IN |
| Temperature Rating | 90 |
| Voltage Rating | 600V |
