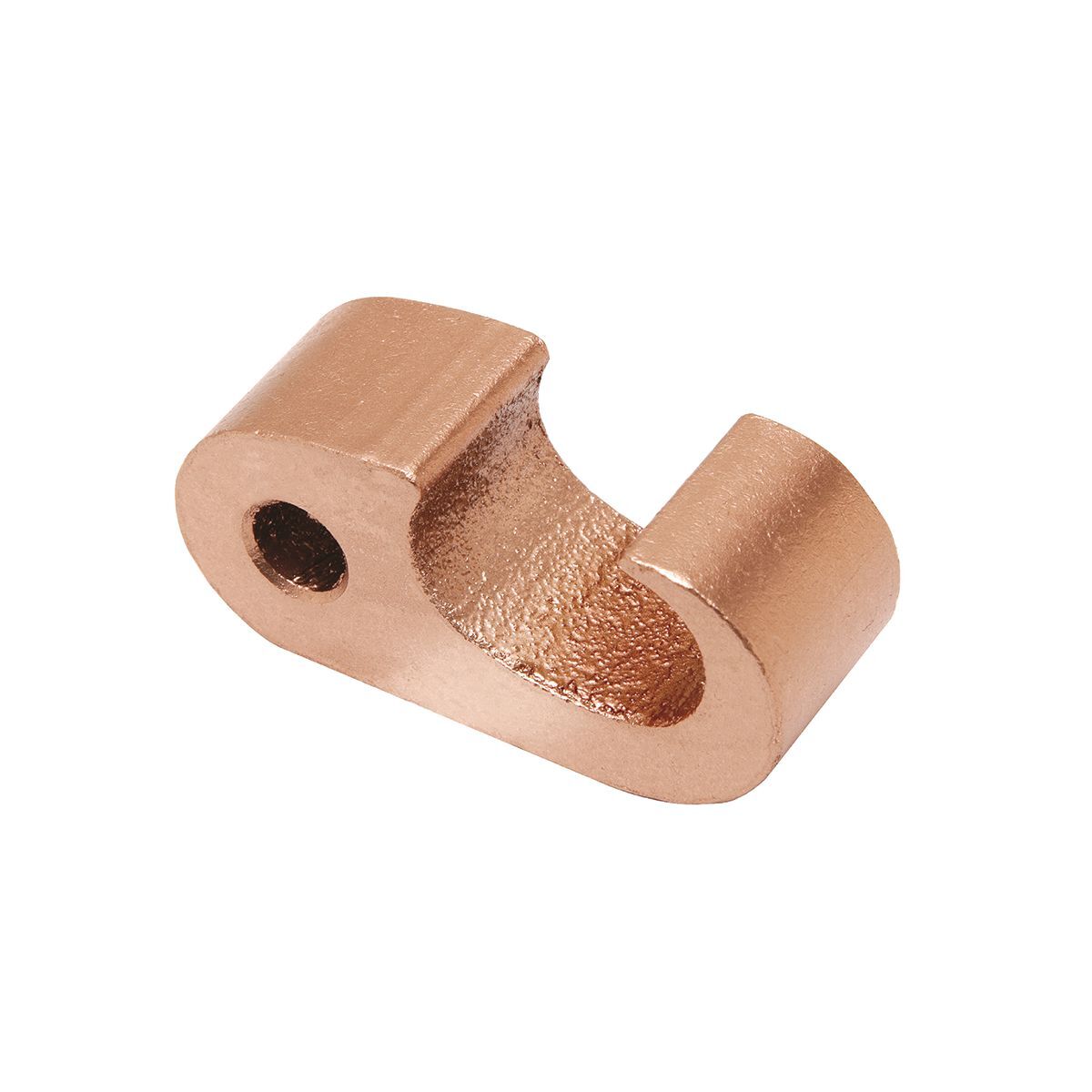

YGHP34C34 Type YGHP-C Mechanical Compression Ground Rod Connector, Figure 6 Shape, 250 to 500 kcmil Main/Run, 350 to 500 kcmil Tap, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YGHP34C34
- UPC:
- 781810220986
- Item #:
- 23963
YGHP34C34 Type YGHP-C Mechanical Compression Ground Rod Connector, Figure 6 Shape, 250 to 500 kcmil Main/Run, 350 to 500 kcmil Tap, Copper
- MFR #:
- YGHP34C34
- UPC:
- 781810220986
- Item #:
- 23963
Manuals & Documentation
| Catalog Number | YGHP34C34 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Direct Burial In Earth And Concrete |
| Material | Copper |
| Special Features | Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Die Index: 1011 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y750 Tool, U1011 Die, (3), PAT750-18V Tool, U1011 Die, (3), Y45 Tool, S1011 Die, (3), Y46 Tool, P1011 Die, (3), Rebar Size: #5 - #6, Ground Rod Size: 5/8 - 3/4 IN, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tap: Commercial Stranded Copper, Conductor Size (tap Range): 350 - 500 KCMIL, Conductor Size (run - Range): 250 - 500 KCMIL, Shape: 6 |
| Standard | Direct Burial |
| UPC | 781810220986 |
| GTIN | 00781810220986 |
| Item Type | Taps |
