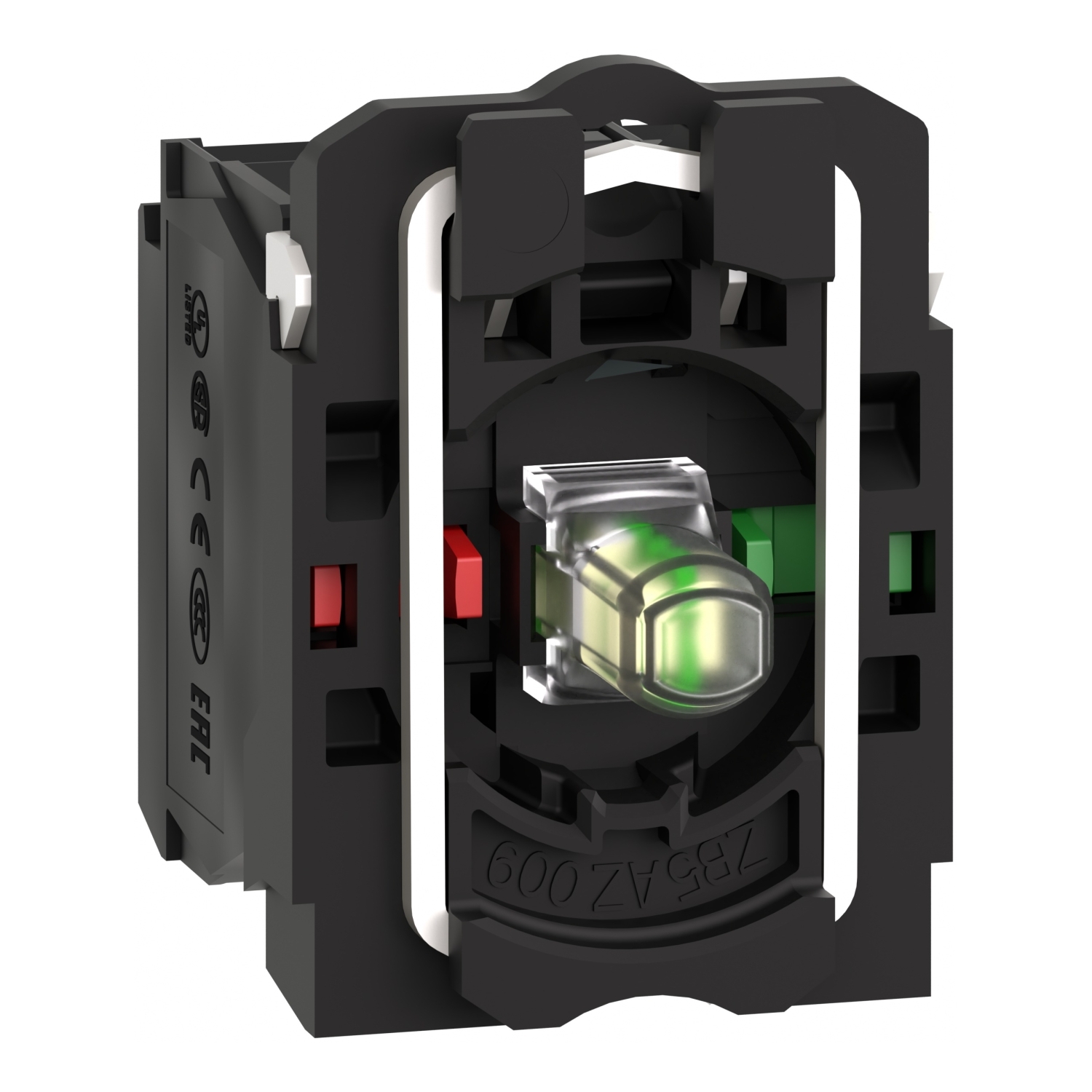

ZB5AW0G15 Harmony Standard Complete Body/Light Block/Contact Assembly, 22 mm, LED Lamp, 1NO-1NC Contact, 110 to 120 V AC, White
- MFR:
- Schneider Electric
- MFR #:
- ZB5AW0G15
- Item #:
- 239596
ZB5AW0G15 Harmony Standard Complete Body/Light Block/Contact Assembly, 22 mm, LED Lamp, 1NO-1NC Contact, 110 to 120 V AC, White
- MFR #:
- ZB5AW0G15
- Item #:
- 239596
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Manuals & Documentation
| Catalog Number | ZB5AW0G15 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | Slow-break |
| Color | White |
| Connection | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1;screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Contact Configuration | 1 NO + 1 NC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=654484&lang=en-us |
| GTIN | 03389110908794 |
| Item Type | Complete body/contact assembly and light block |
| Voltage Rating | 110...120 V AC 50/60 Hz |
