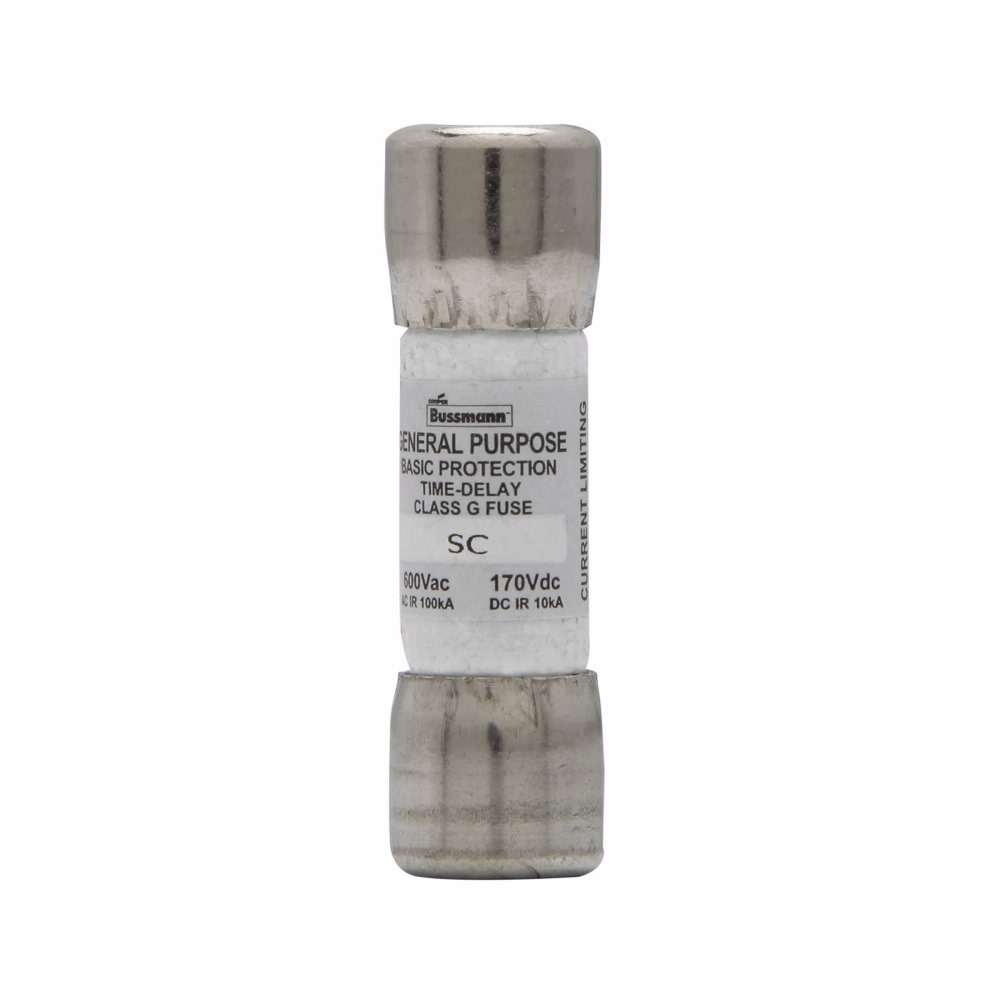

Eaton Bussmann series SC fuse, Current-limiting time-delay fuse, Rejection style, 20 A, Class G, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 10 kAIC at 170 Vdc,100 kAIC at 600 Vac, Standard, 600 V, 170 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- SC-20
- UPC:
- 051712250207
- Item #:
- 239102
Eaton Bussmann series SC fuse, Current-limiting time-delay fuse, Rejection style, 20 A, Class G, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 10 kAIC at 170 Vdc,100 kAIC at 600 Vac, Standard, 600 V, 170 Vdc
- MFR #:
- SC-20
- UPC:
- 051712250207
- Item #:
- 239102
Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing
Manuals & Documentation
| Catalog Number | SC-20 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule End X Ferrule End |
| Interrupt Rating | 100000 Amp (RMS Symmetrical), 10000 Amp (DC) |
| Special Features | Rejection Style |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712250207 |
| GTIN | 00051712250207 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.41 In Diameter X 1.41 In Length |
| Voltage Rating | 600 Vac, 170 Vdc |
