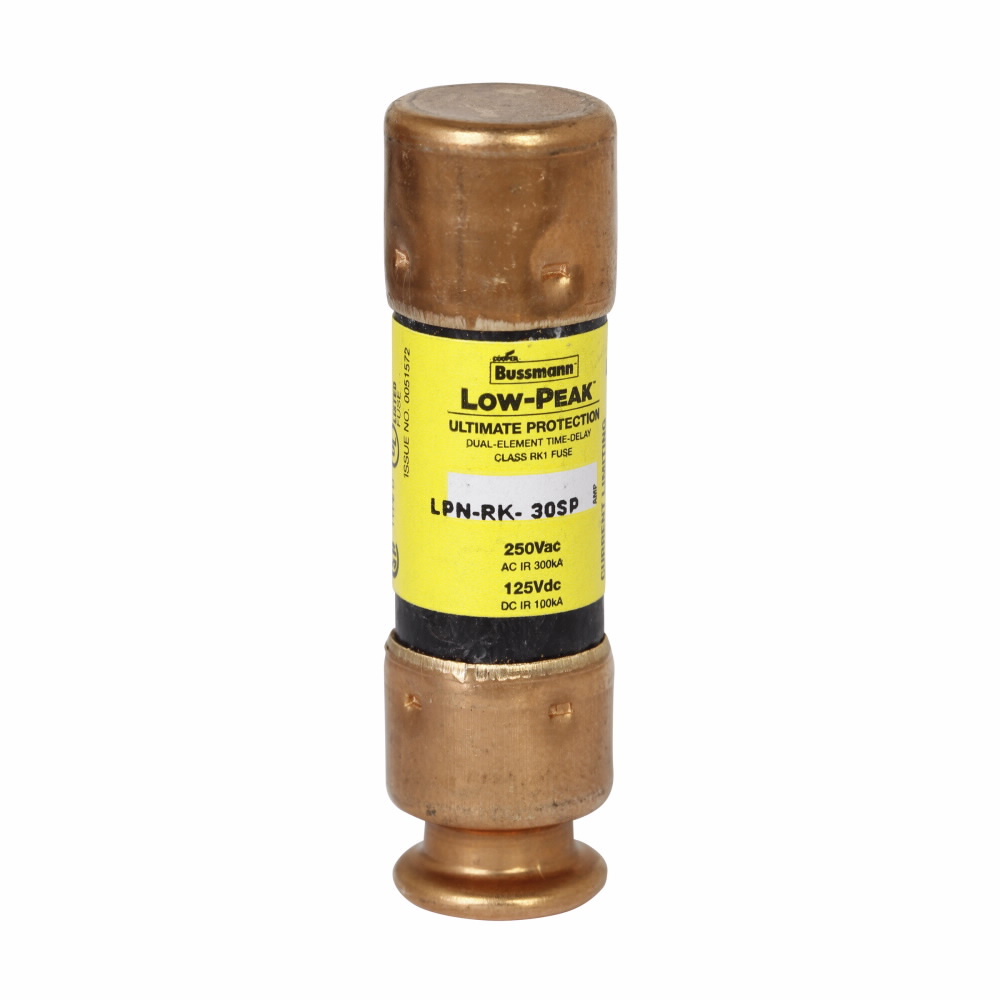

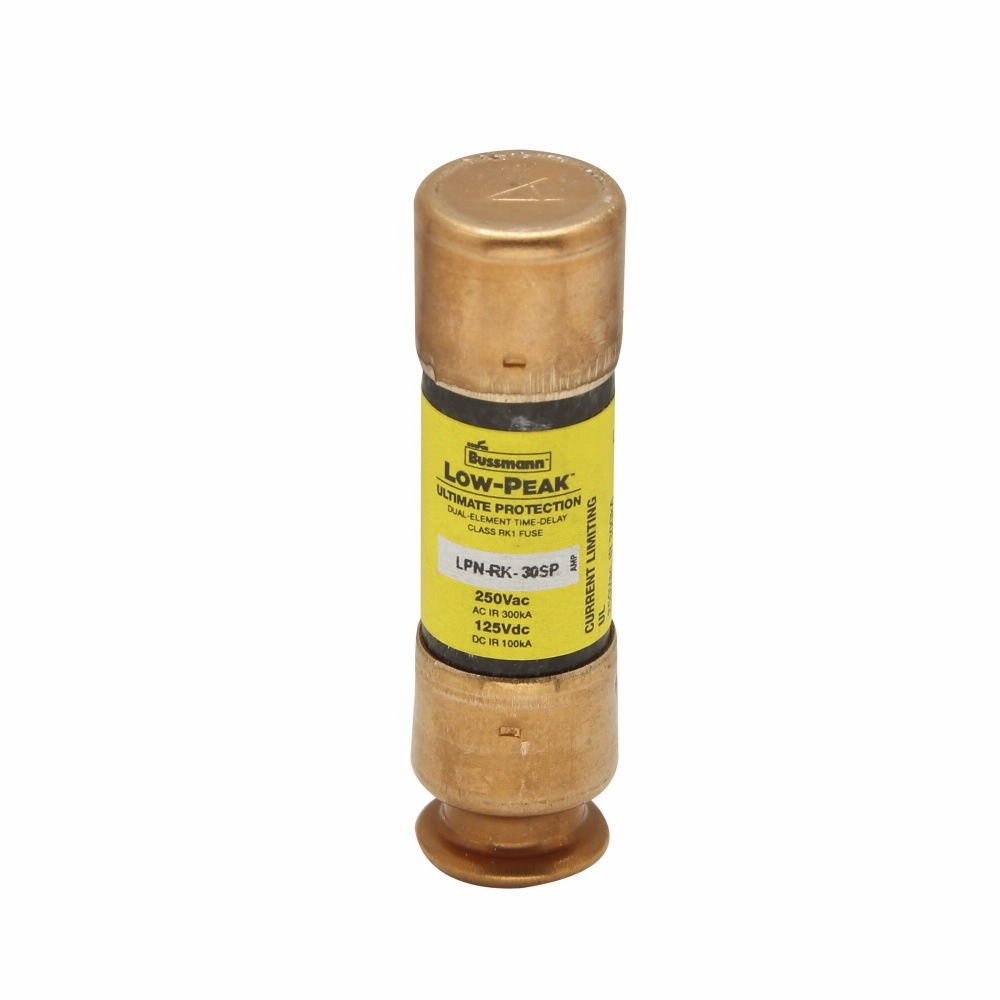

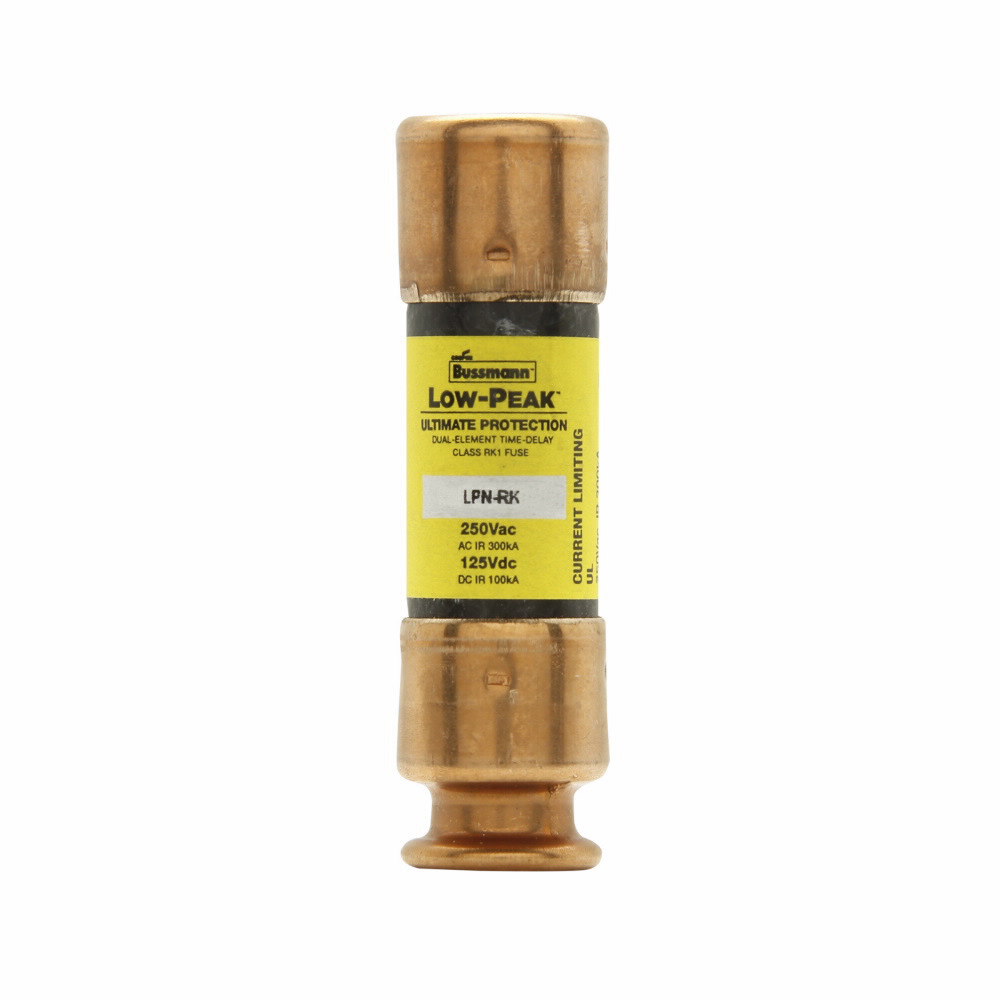

Eaton Bussmann series LPN-RK fuse, Low-peak fuse, 30 A, Dual, Class RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 8 sec at 500%, 300 kAIC at 250 V,100 kAIC at 125 Vdc, Standard, 10, 250 V, 125 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- LPN-RK-30SP
- UPC:
- 051712538367
- Item #:
- 239060
Eaton Bussmann series LPN-RK fuse, Low-peak fuse, 30 A, Dual, Class RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 8 sec at 500%, 300 kAIC at 250 V,100 kAIC at 125 Vdc, Standard, 10, 250 V, 125 Vdc
- MFR #:
- LPN-RK-30SP
- UPC:
- 051712538367
- Item #:
- 239060
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
Manuals & Documentation
| Catalog Number | LPN-RK-30SP |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 300 kAIC at 250 Vac|100 kAIC at 125 Vdc |
| Response Time | 8 S at 500% |
| Special Features | Indicating, High in-rush current motor protection |
| Standard | CE Marked |
| UPC | 051712538367 |
| GTIN | 00051712538367 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.56 In Diameter X 2.00 In Length |
| Voltage Rating | 250 Vac, 125 Vdc |
