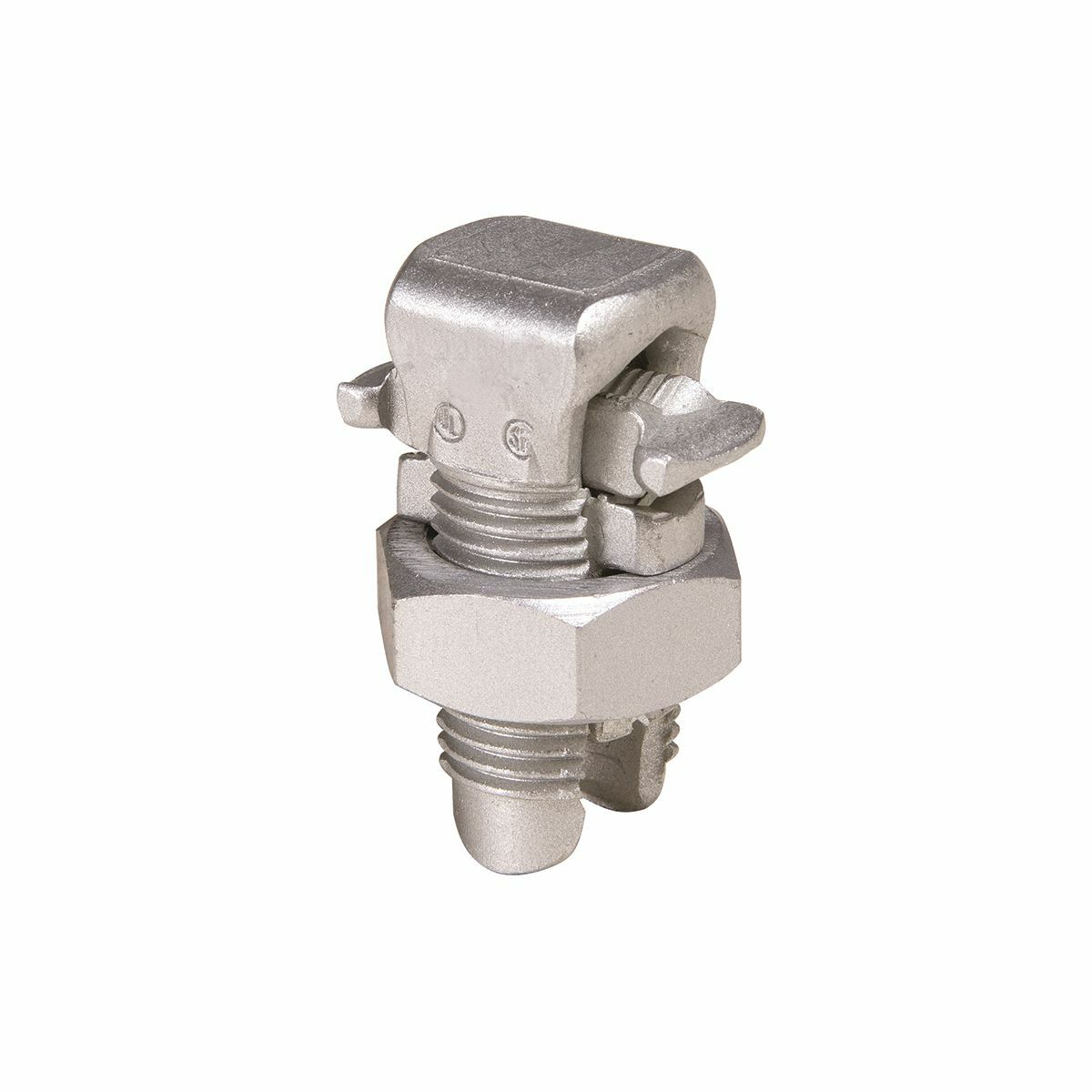

KSA4 Split Bolt Connector, (1) 10 to 4 AWG, 8 to 4 AWG Conductor, 1.38 in L, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KSA4
- UPC:
- 781810015407
- Item #:
- 238822
KSA4 Split Bolt Connector, (1) 10 to 4 AWG, 8 to 4 AWG Conductor, 1.38 in L, Aluminum
- MFR #:
- KSA4
- UPC:
- 781810015407
- Item #:
- 238822
Manuals & Documentation
| Catalog Number | KSA4 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For All Combinations Of Aluminum To Aluminum, Aluminum To Copper And Copper To Copper, Aluminum Alloy Tin Plated |
| Material | Aluminum |
| Special Features | Features: No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors, Facilitates Piercing The Aluminum Conductor Surface Oxides, UL 486B Listed, 90 DEG C Rated, Provides A Low Contact Resistance, Provides Equal Coefficient Of Expansion Inhibits The Reformation Of Oxides By Producing A Gas-Tight Seal, Provides Improved Retention Of Minimum To Maximum Conductor Combinations, Servit Cover: SC2, Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded and Solid Copper, Installation Torque: 165 IN-LB, Width: 0.62 IN, Length: 1.38 IN, Cross Flats: 0.81 IN |
| Standard | UL 486A-486B |
| UPC | 781810015407 |
| GTIN | 00781810015407 |
| Item Type | KSA |
| Temperature Rating | 194 |
| Cross Reference Products | APS04, APS04 |
