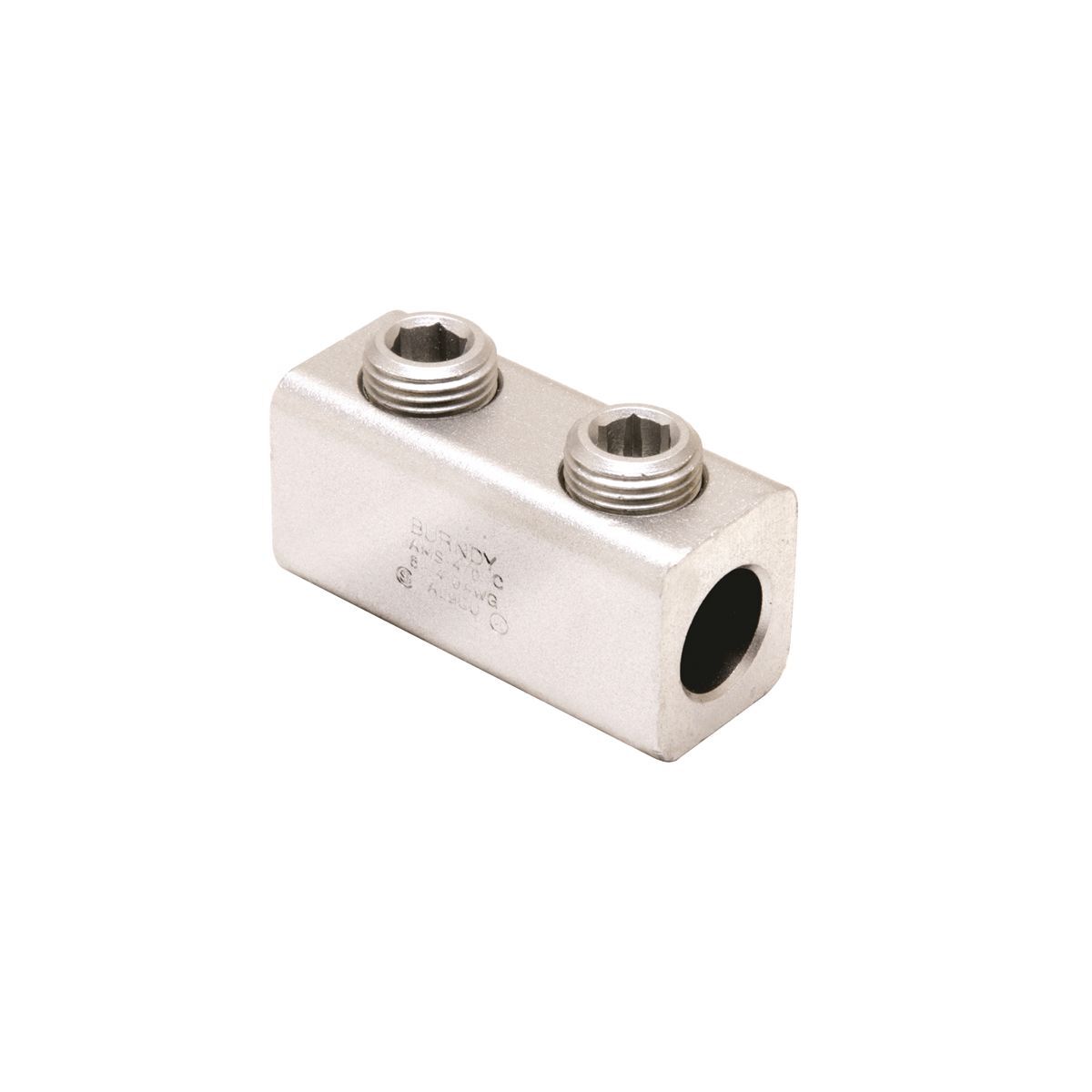

AMS2 Dual Rated Non-Insulated Mechanical Splicer/Reducer Connector, 14 to 2 AWG Solid/Stranded Aluminum/Copper Conductor, 2 Screws, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- AMS2
- UPC:
- 781810241004
- Item #:
- 238810
AMS2 Dual Rated Non-Insulated Mechanical Splicer/Reducer Connector, 14 to 2 AWG Solid/Stranded Aluminum/Copper Conductor, 2 Screws, Aluminum
- MFR #:
- AMS2
- UPC:
- 781810241004
- Item #:
- 238810
Manuals & Documentation
| Catalog Number | AMS2 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Use With Copper And Aluminum Conductors |
| Material | Aluminum |
| Special Features | Features: All Splicer/Reducers Are Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum, PENTROX Oxide Inhibiting Joint Compounds Are Recommended For All Aluminum Applications, All Connectors Are Tin-Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, Connectors Feature Rounded Bottoms: Facilitates Taping, Solid Center Barrier: Prevents Contact Of Dissimilar Metals, Large Screw Diameters: Ensures Greater Surface Contact With Wires For Maximum Pullout Force, Large Cable Ranges: Each Splice Is Also An Effective Reducing Connector, Slotted Screws: H2 Measured With Maximum Conductors, Reference Only, Conductor Type: Copper, Aluminium, Number Of Screws: 2, Screw Diameter: 3/8 IN, Hex Size: S |
| Standard | ANSI C119.4 |
| UPC | 781810241004 |
| GTIN | 00781810241004 |
| Item Type | AMS, Dual Rated |
| Temperature Rating | 194 Degrees F |
| Cross Reference Products | ASR0214 |
