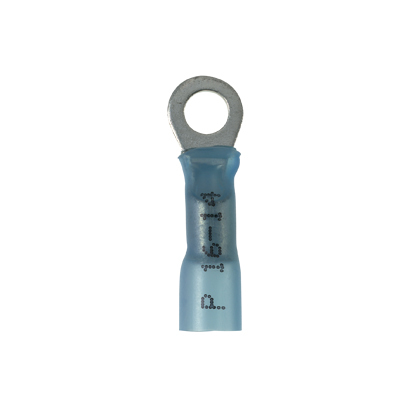

PH14-14R-Q Pan-Term Type PH-R Heat Shrink Insulated Ring Terminal, 14 AWG Conductor, 1.24 in L, Brazed Seam/Standard Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- PH14-14R-Q
- UPC:
- 074983818075
- Item #:
- 237280
PH14-14R-Q Pan-Term Type PH-R Heat Shrink Insulated Ring Terminal, 14 AWG Conductor, 1.24 in L, Brazed Seam/Standard Barrel, Copper, Blue
- MFR #:
- PH14-14R-Q
- UPC:
- 074983818075
- Item #:
- 237280
Heat Shrink Ring Terminal 16 14 AWG, 1/4 stud size.
Manuals & Documentation
| Catalog Number | PH14-14R-Q |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Blue |
| Connection | Standard |
| Enclosure | ring shaped |
| Finish | Tin-Plated |
| Insulation | Heat Shrink |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983818075 |
| GTIN | 00074983818075 |
| Item Type | Ring Terminal |
| Size | 1/4" |
| Temperature Rating | 230 Degrees Fahrenheit (110 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
