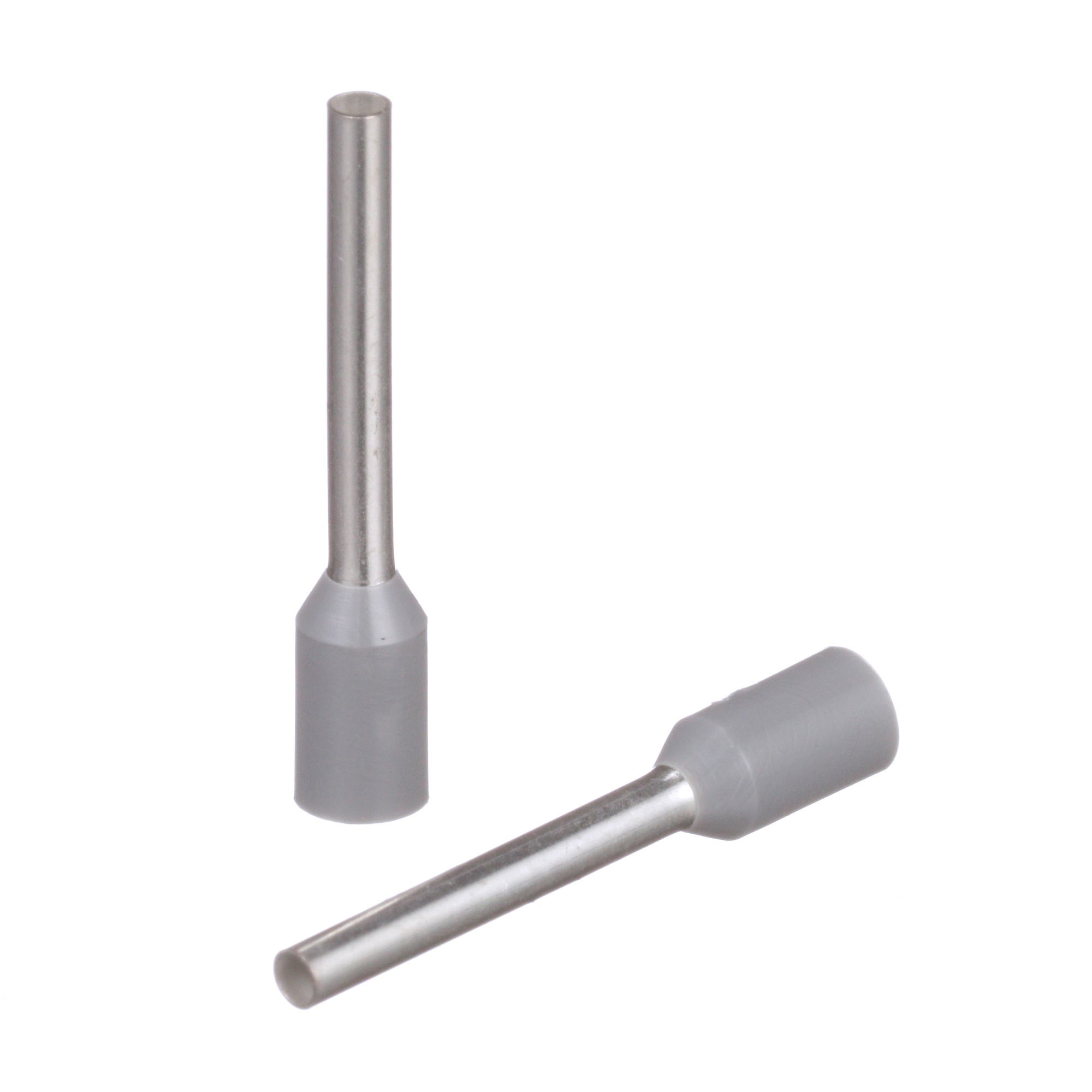

Polypropylene insulated ferrules single wire gray DIN end sleeve,18 AWG (.75mm), .47(12.0mm) pin length.
Manuals & Documentation
| Catalog Number | FSD76-12-D |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Gray |
| Finish | Tin-Plated |
| Insulation | Polypropylene |
| Material | Copper |
| Standard | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| UPC | 074983762507 |
| GTIN | 00074983762507 |
| Item Type | Covered Single Wire Ferrule |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Wire Size | 18 AWG |
