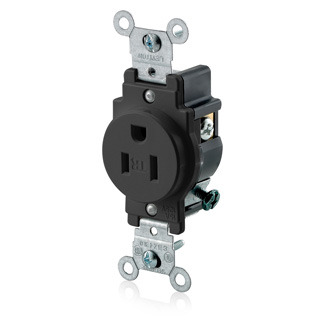

T5015-E 1-Phase Grounding Single Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR:
- Leviton
- MFR #:
- T5015-E
- UPC:
- 078477441602
- Item #:
- 236420
T5015-E 1-Phase Grounding Single Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
- MFR #:
- T5015-E
- UPC:
- 078477441602
- Item #:
- 236420
| Catalog Number | T5015-E |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Commercial |
| Color | Black |
| Connection | Side Wired |
| Material | Thermoplastic |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| UPC | 078477441602 |
| GTIN | 00078477441602 |
| Item Type | Straight Blade;Single Outlet |
| Size | 46 H x 1.31 W x 16 D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Temperature Rating | -40 to +60 DEG C |
| Voltage Rating | 125 |
| Wire Size | 14-10 AWG |
| Cross Reference Products | Bryant RR151BKTR|EatonWD TR817BK|HublWiring RR151BKTR|Leviton T5015-E |
