Rittal Corp

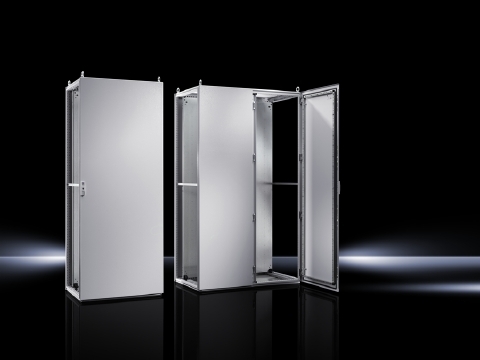

8025500 TS/TS8 Compact Baying Enclosure System With Single Door, 39 in W x 20 in D, NEMA 12/IP55 NEMA Rating, Carbon Steel

MFR:
Rittal
MFR #:
8025500
UPC:
639889007512
Item #:
236328

Baying systems TS 8, Single, material: Enclosure frame: Sheet steel, 1.5 mm, Roof: Sheet steel, 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, Gland plates: Sheet steel, 1.5 mm, Mounting plate: Sheet steel 3.0 mm, surface: Enclosure frame: Dipcoat-primed, Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint, Mounting plate and gland plates: Zinc-plated, color: RAL 7035, supply includes: Enclosure frame with door, Roof plate, Rear panel, detachable, 4 eyebolts, Lock: 3 mm double-bit, Gland plates, Mounting plate, description: Baying systems TS 8 with mounting plate. Protection category IP 55. For the North American market, we have enhanced our product offerings to include the below additional size options.

Features

  • Size: 39.400 Inch Width x 19.700 Inch Depth x 86.600 Inch Height
Catalog Number 8025500
Manufacturer Rittal
Brand Rittal Corp
Country of Origin United States
Made in USA Yes
Application Industrial, Data Center, Outdoor, Hybrid
Color RAL 7035
Material Carbon Steel
Mounting Din Rail
NEMA Rating 12
Special Features Features: 16-Fold Tubular Frame System, Flexible Baying Options, Modular Design
Standard UL Listed, CSA, TUV, Norske Veritas, Germanischer Lloyd, Russian Maritime Register of Shipping, Lloyds Register of Shipping, Bureau Veritas, cUL Listed
RoHS Indicator Yes
UPC 639889007512
GTIN 00639889007512
Item Type Compact Enclosure
Length 48.0000
Length UOM Inch
Width 32.0000
Width UOM Inch
Height 93.0000
Height UOM Inch
Weight 330.000
Weight UOM Pounds
Size 87 (H) x 39 (W) x 20 (D)
