SQUARE D

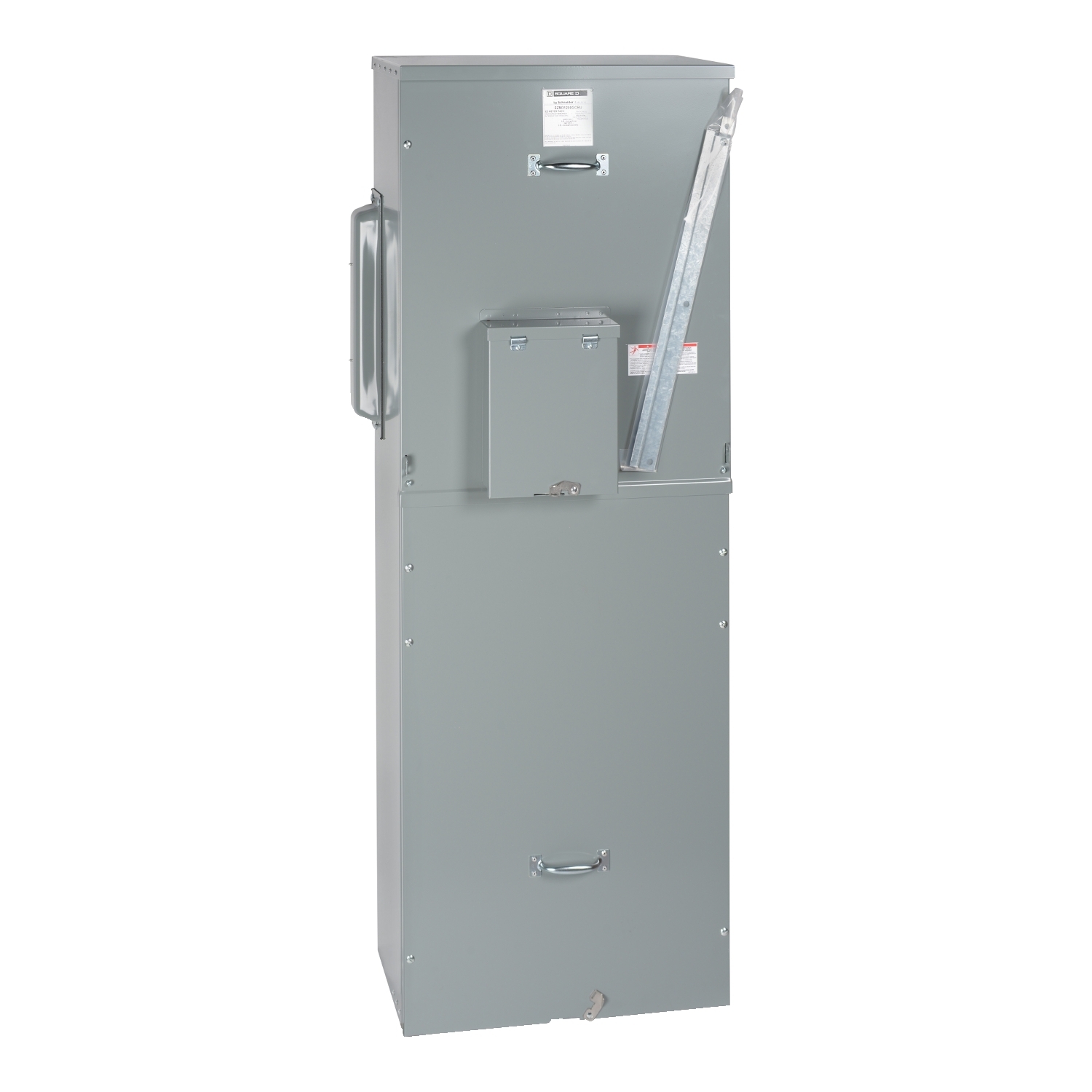

EZM31200GCBU Main Unit, EZ Meter Pak, 1200 Amp, 208Y/120V, 3 Phase, 4 Wire, Aluminum Busbar, 65 kA SCCR, Main Breaker, UG

MFR:
Schneider Electric
MFR #:
EZM31200GCBU
UPC:
785901865896
Item #:
235977

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. It has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Manuals & Documentation
Catalog Number EZM31200GCBU
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type Review
Enclosure Painted steel
Mounting Surface
Phase 3
Special Features Main Circuit Breaker
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267978613&lang=en-us
UPC 785901865896
GTIN 00785901865896
Item Type Meter center main unit
Width 23.69
Width UOM Inch
Height 65.3
Height UOM Inch
Depth 13.69 IN
