Telemecanique

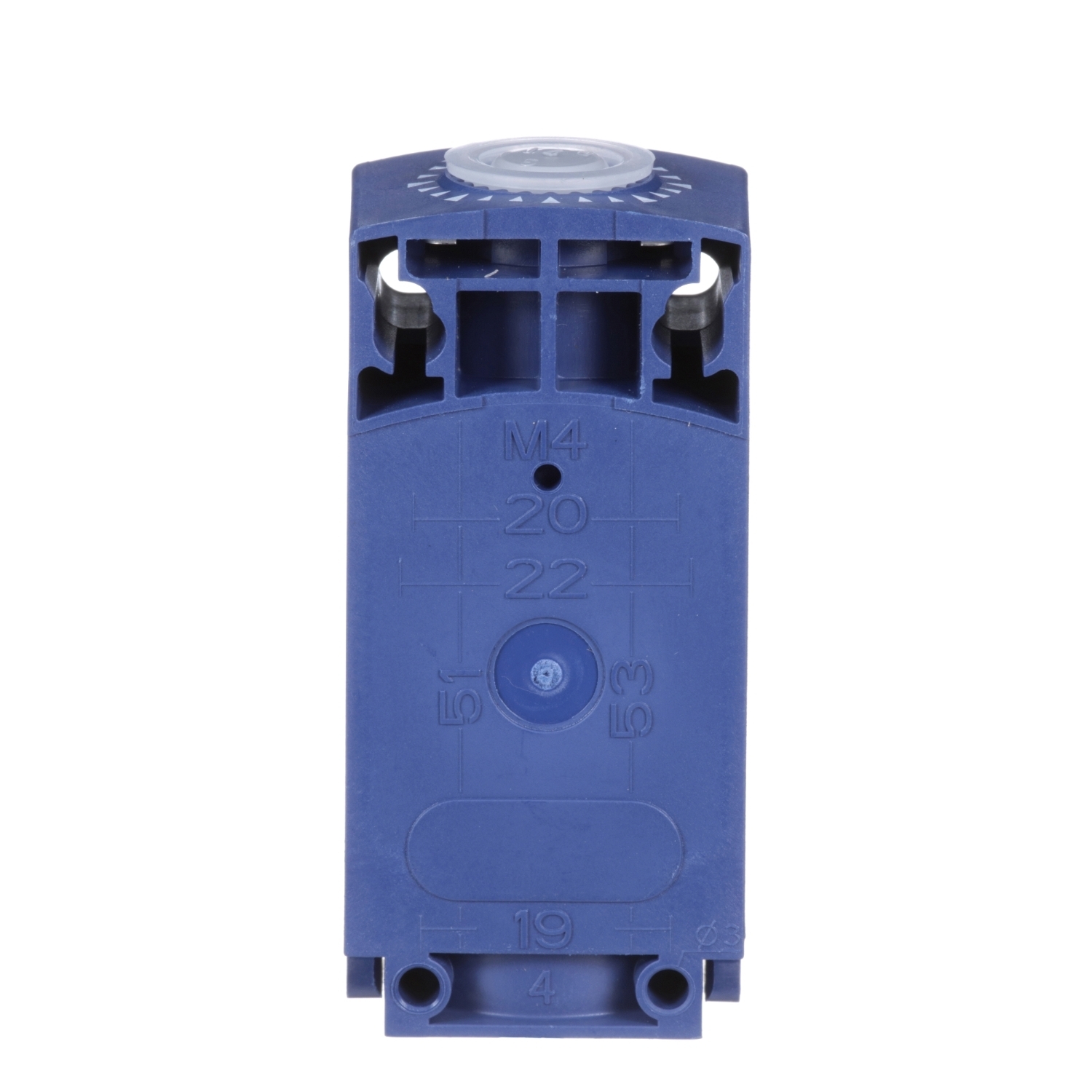

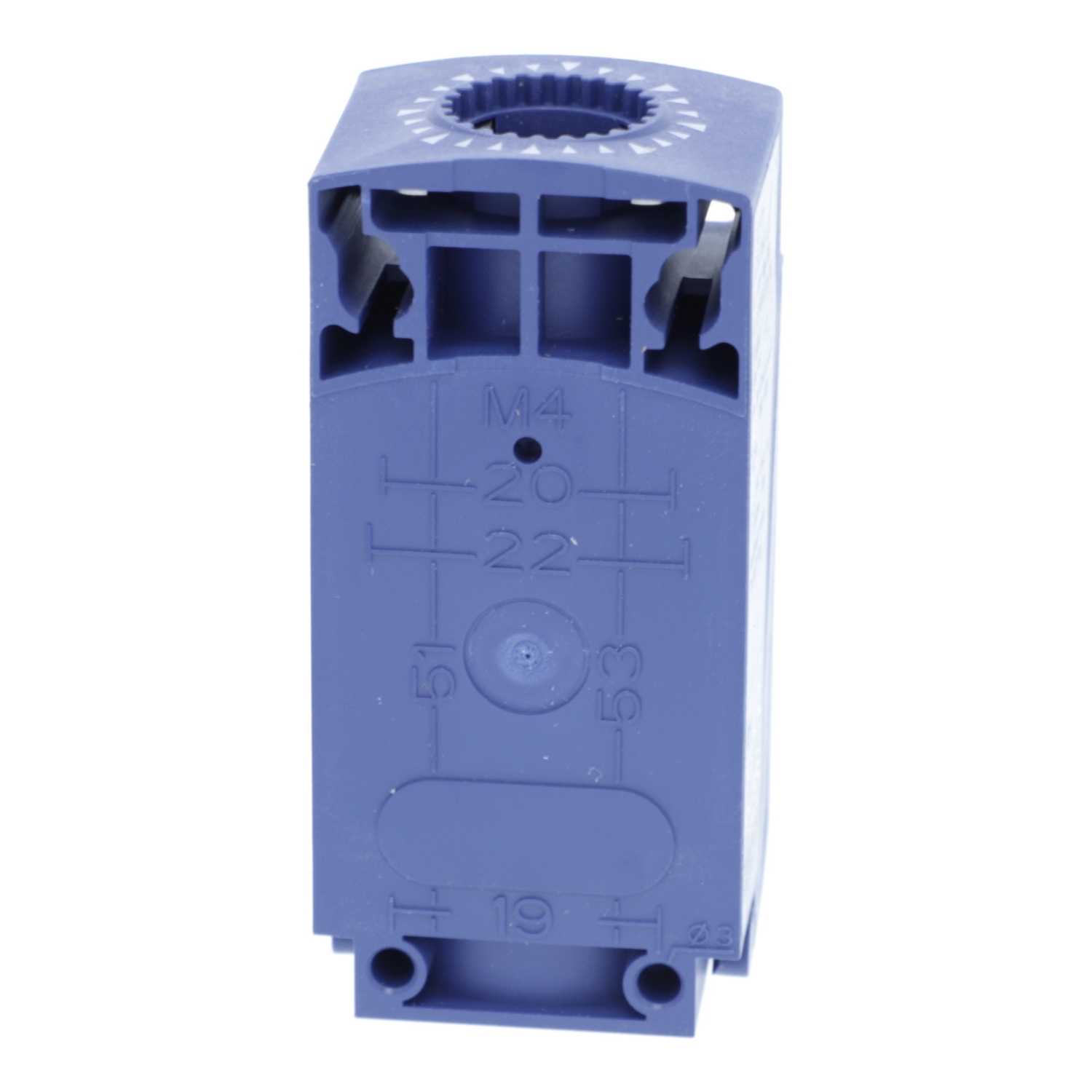

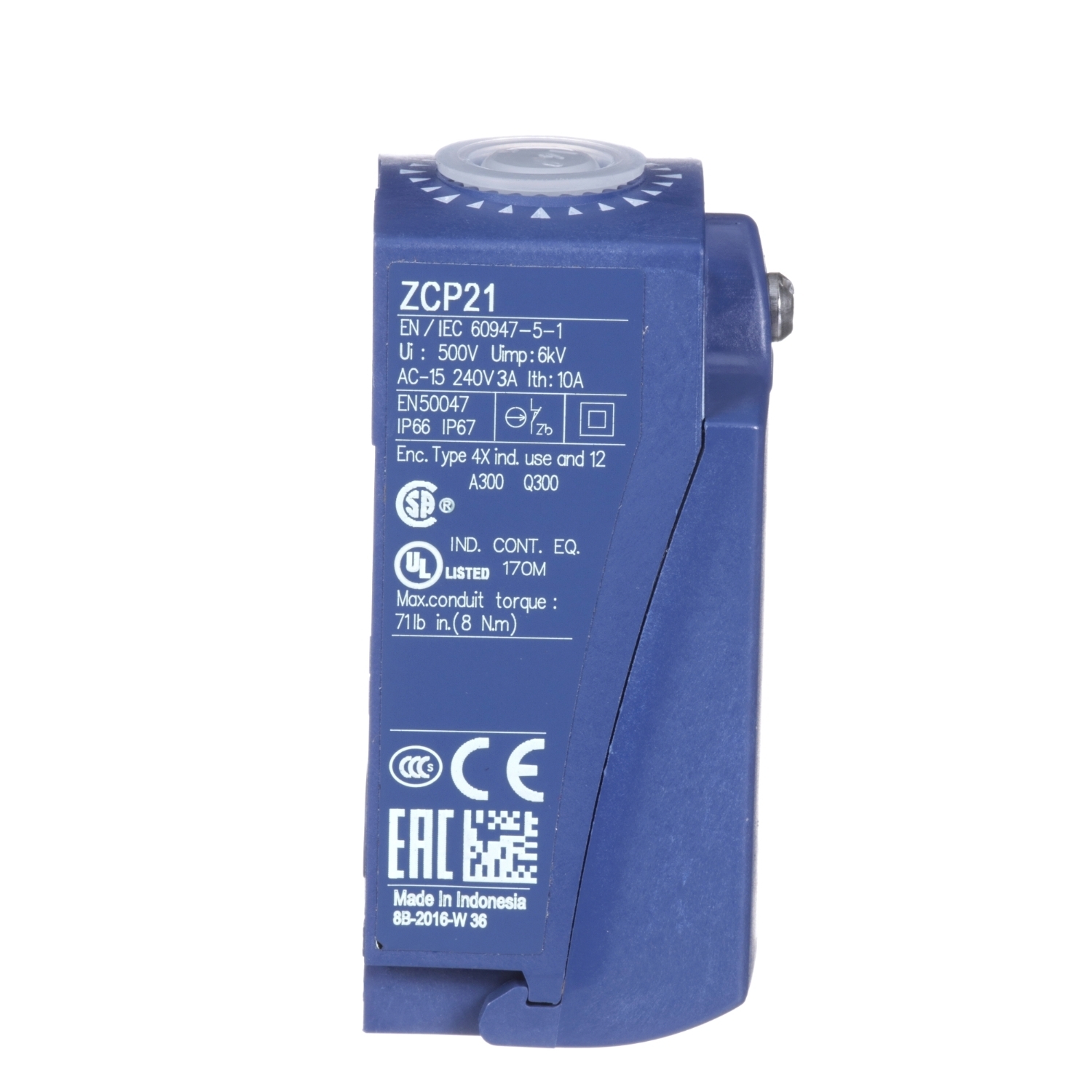

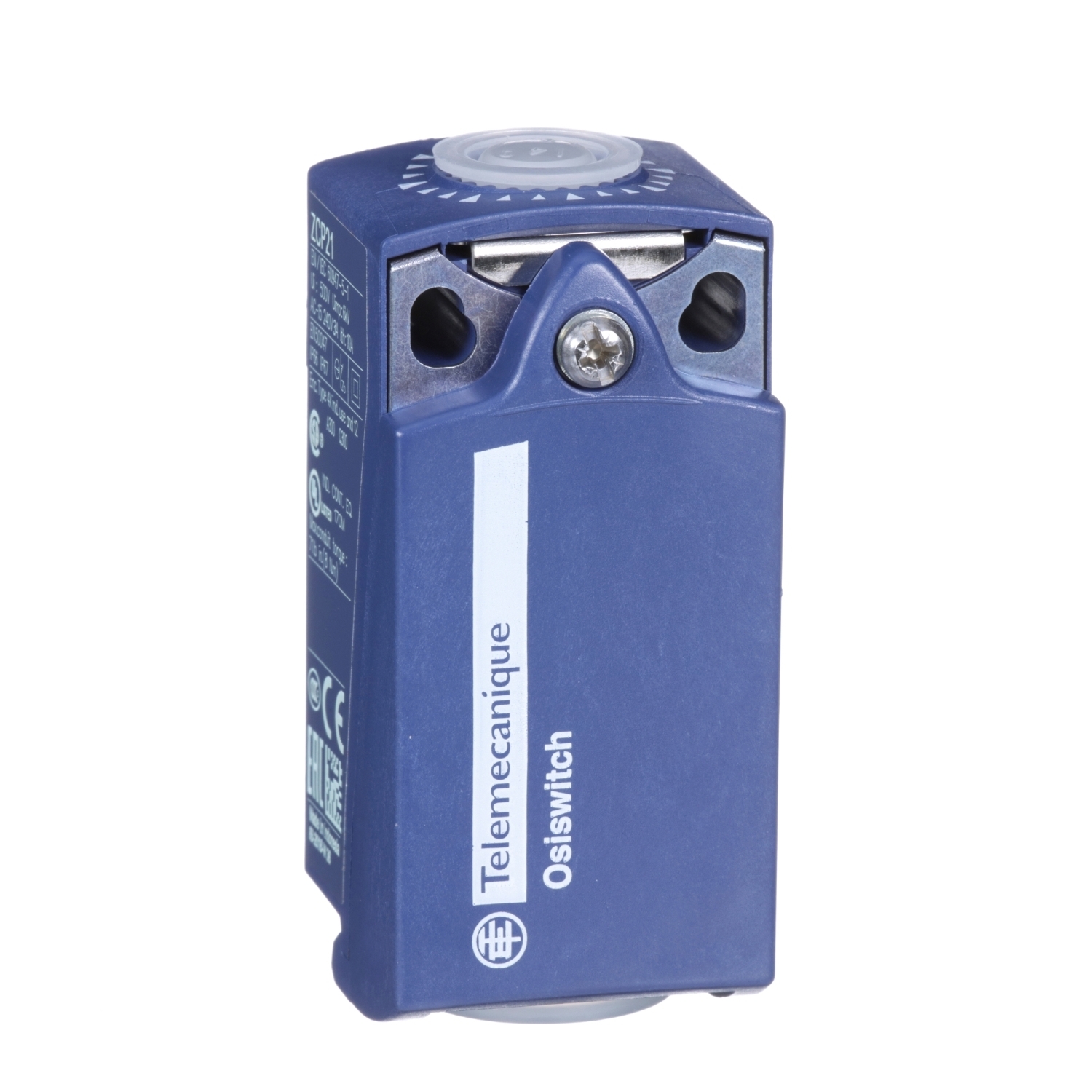

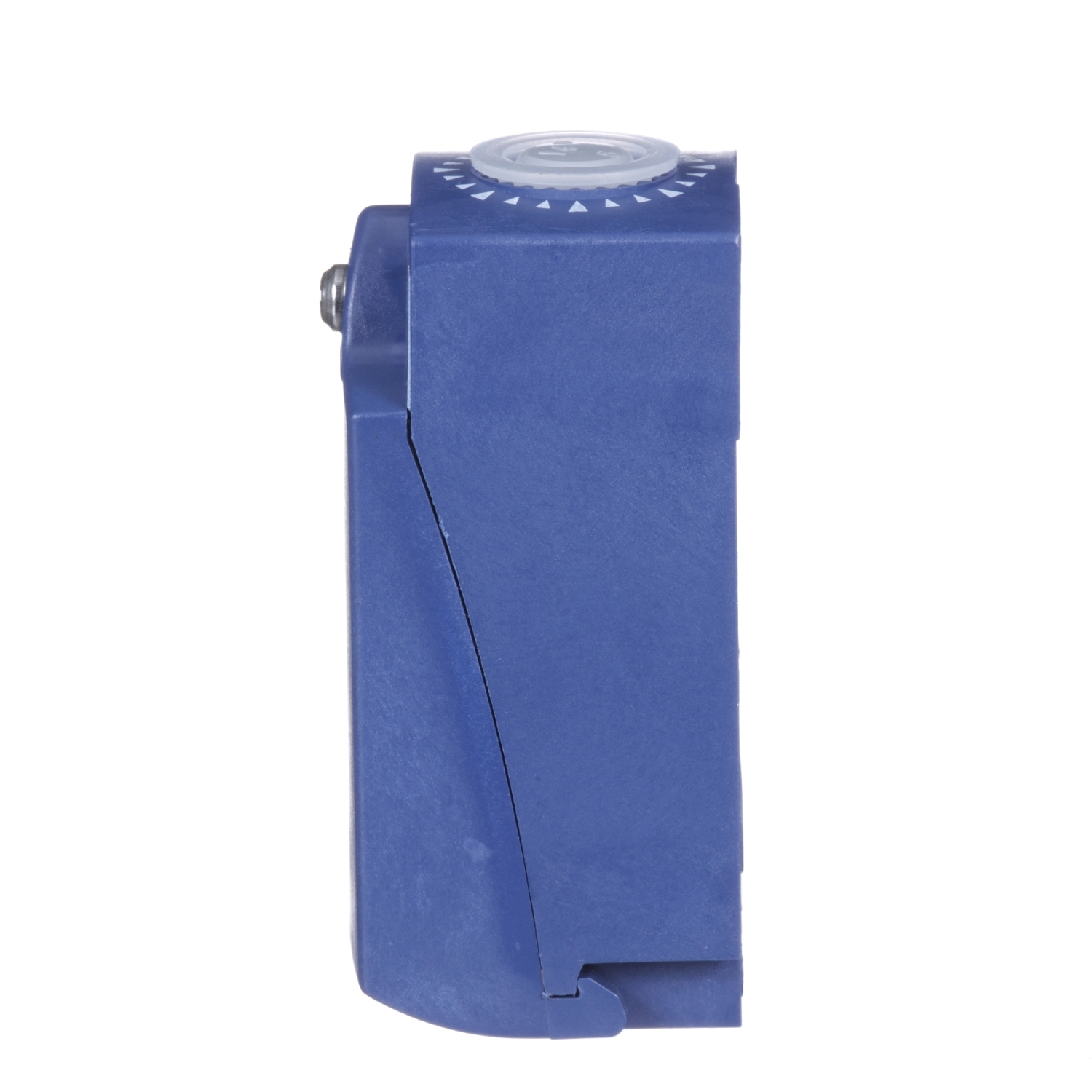

ZCP21 ZCP Fixed Limit Switch Body, 1NO-1NC Contact, For Use With XCKP and ZCP Series Standard Compact Limit Switch, 10 A at 300 V AC Contact, NEMA 1/4/12/IP65 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCP21
UPC:
785901290384
Item #:
23495

OsiSense XC compact modular metal limit switches meet the European standard (EN50047) for positive opening contacts, even in snap action versions which allow use in safety applications. XCKD range has a wide range of body types, different types of heads, and many limit switch arms that can be purchased as complete limit switches or as subcomponents that can be assemblied by the user to meet their specific requirement. OsiSense XC compact modular metal limit switches are often used in the packaging, materials handling, conveying, machining, food and beverage, service sector, and many more applications. These limit switches are UL Listed, CSA Certified, meet the appropriate IEC standards and are CCC.

Manuals & Documentation
Catalog Number ZCP21
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKP
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880392&lang=en-us
UPC 785901290384
GTIN 03389110180206
Item Type Limit switch body
Size 1.18
Operating Temperature -25-70 A Degrees C
