Telemecanique

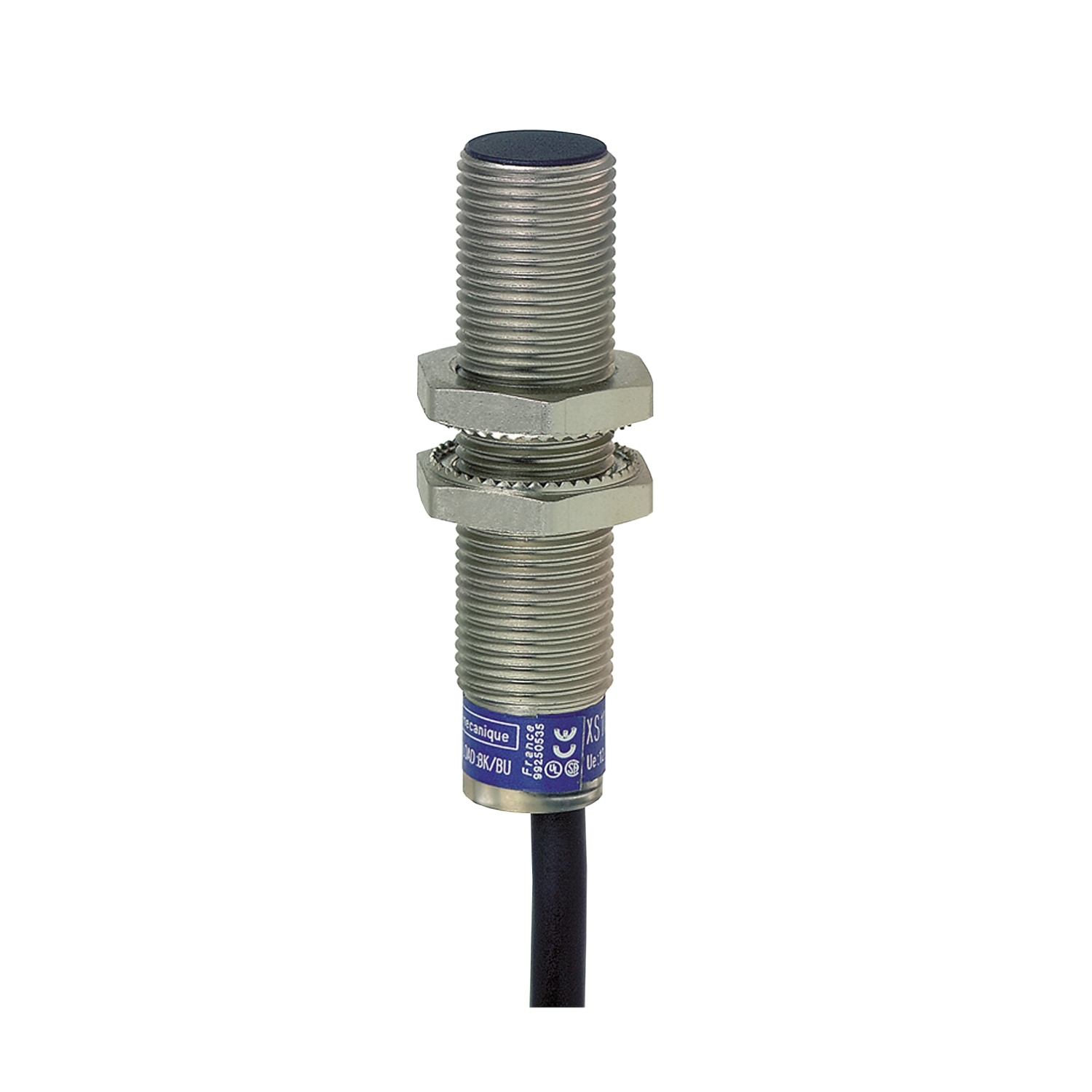

XS1M12KP340 OsiSense XS Fixed Cylindrical Proximity Sensor With Reverse Polarity Protection, Inductive, NPN/PNP Output, 1NO-1NC Contact, 10 to 36/12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1M12KP340
UPC:
785901913450
Item #:
233009

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 2mm Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO/NC programmable output.

Manuals & Documentation
Catalog Number XS1M12KP340
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connector Cable
Control Output 1 NO OR 1 NC (PROGRAMMABLE)
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range 2 MM,> 0...0.1 IN (> 0...2.5 MM)
Sensor 12 MM,54 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP68 double insulation conforming to IEC 60529;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866352&lang=en-us
UPC 785901913450
GTIN 03389110515039
Item Type Inductive proximity sensor;Cylindrical M12
Operating Temperature -25-70 A Degrees C
