Appleton

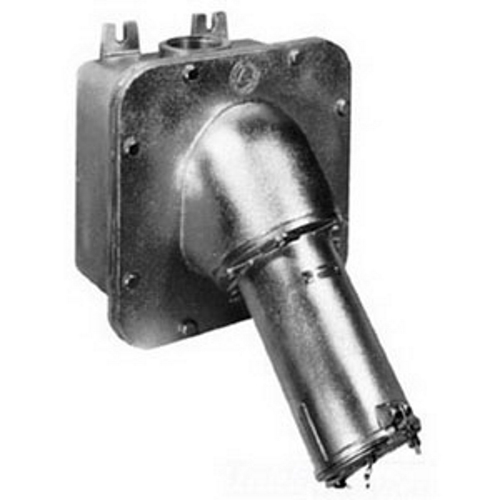

AJA40033400 Powertite 3-Phase Grounding Style 1 Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 400 A, 3 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
AJA40033400
UPC:
781381295017
Item #:
230388

Powertite Grounding Style 1 Receptacle With AJA Mounting Box, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperf

Manuals & Documentation

Features

  • Discontinued
Catalog Number AJA40033400
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 400
Application For AP40033E Plug
Connection Solder Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
Number of Poles 3
Number of Wires 3
Phase 3
Special Features Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.84 IN; Has feed-through 4 IN tapped openings, supplied with one 4 IN to 3 IN reducer and one 4 IN close-up plug
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381295017
GTIN 00781381295017
Item Type Grounding Style 1 Receptacle With AJA Mounting Box
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 400 - 1000 MCM
