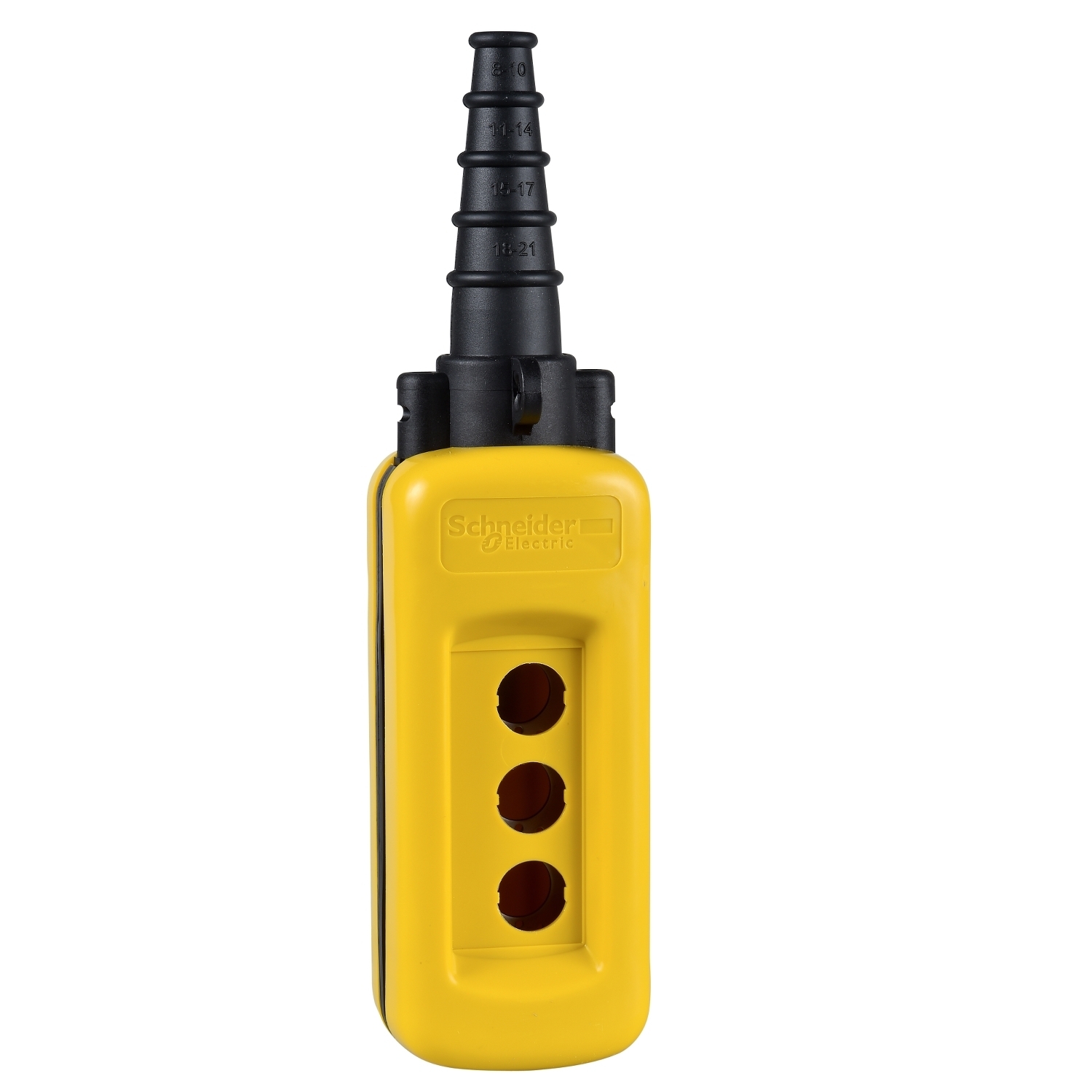

XACA03H7 XACA Corrosion-Resistant Dusttight Type XACA Watertight 3 Outlet Pendant Station Enclosure, 314 mm L x 80 mm W x 70 mm D, NEMA 4/4X NEMA Rating, Polypropylene
- MFR:
- Schneider Electric
- MFR #:
- XACA03H7
- Item #:
- 230208
XACA03H7 XACA Corrosion-Resistant Dusttight Type XACA Watertight 3 Outlet Pendant Station Enclosure, 314 mm L x 80 mm W x 70 mm D, NEMA 4/4X NEMA Rating, Polypropylene
- MFR #:
- XACA03H7
- Item #:
- 230208

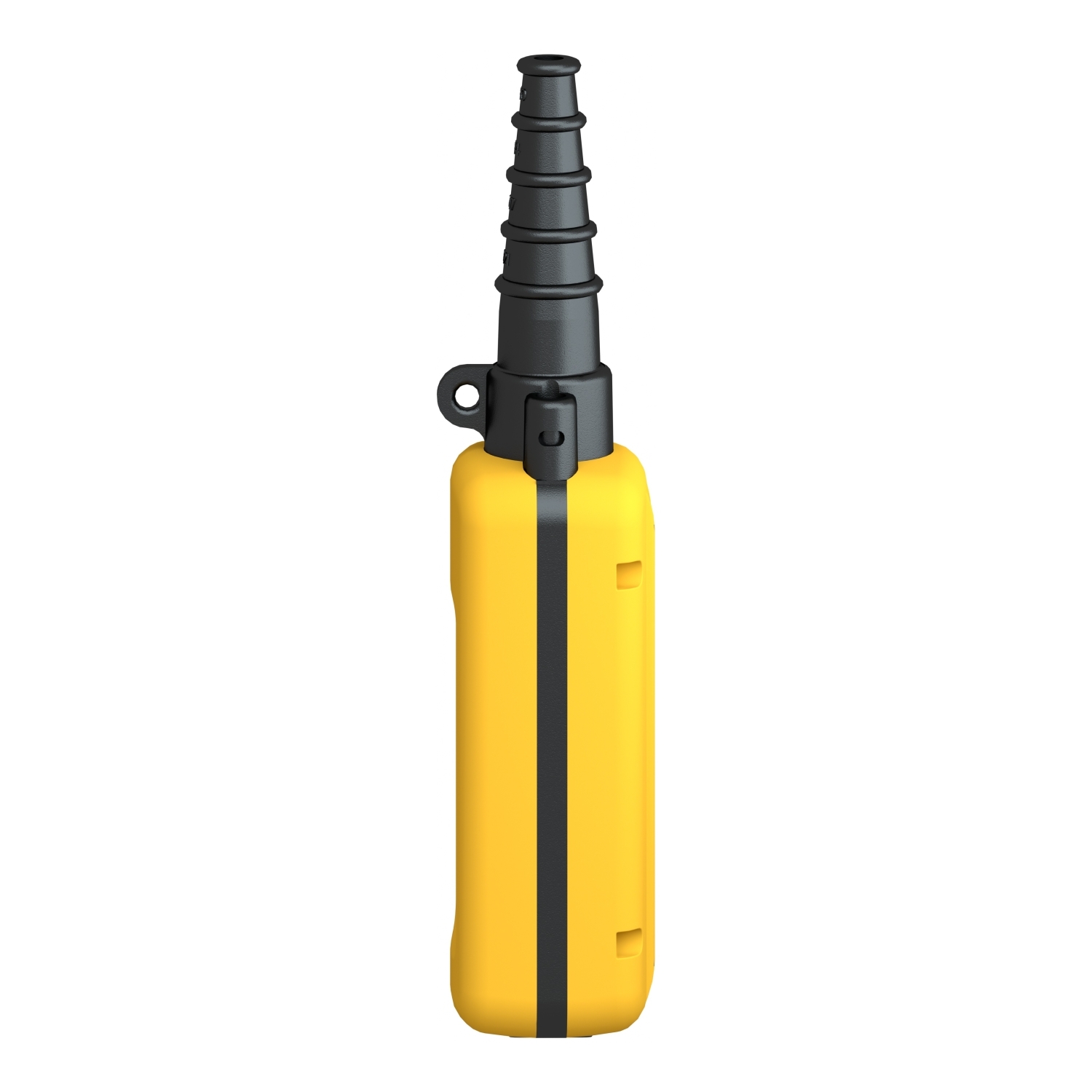

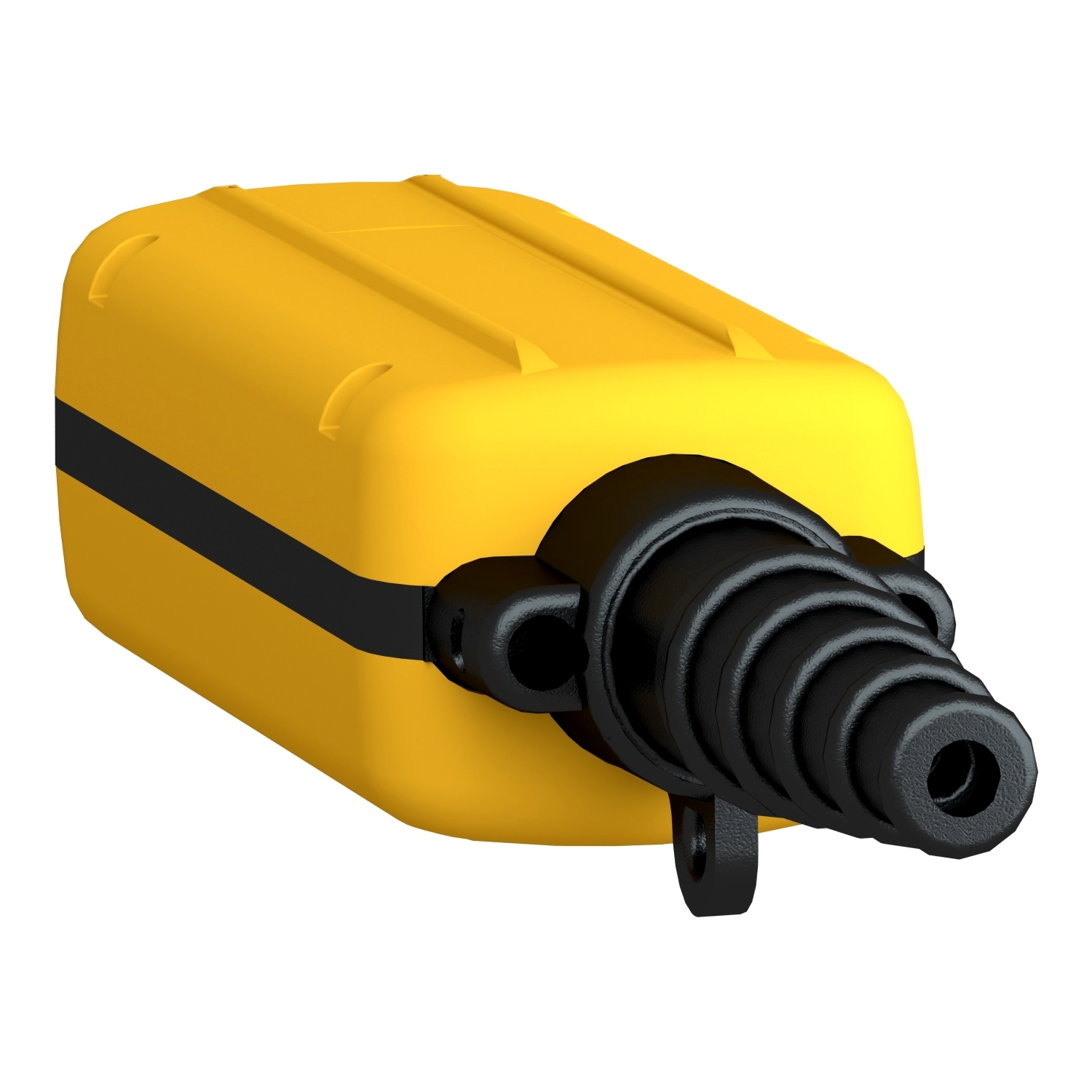

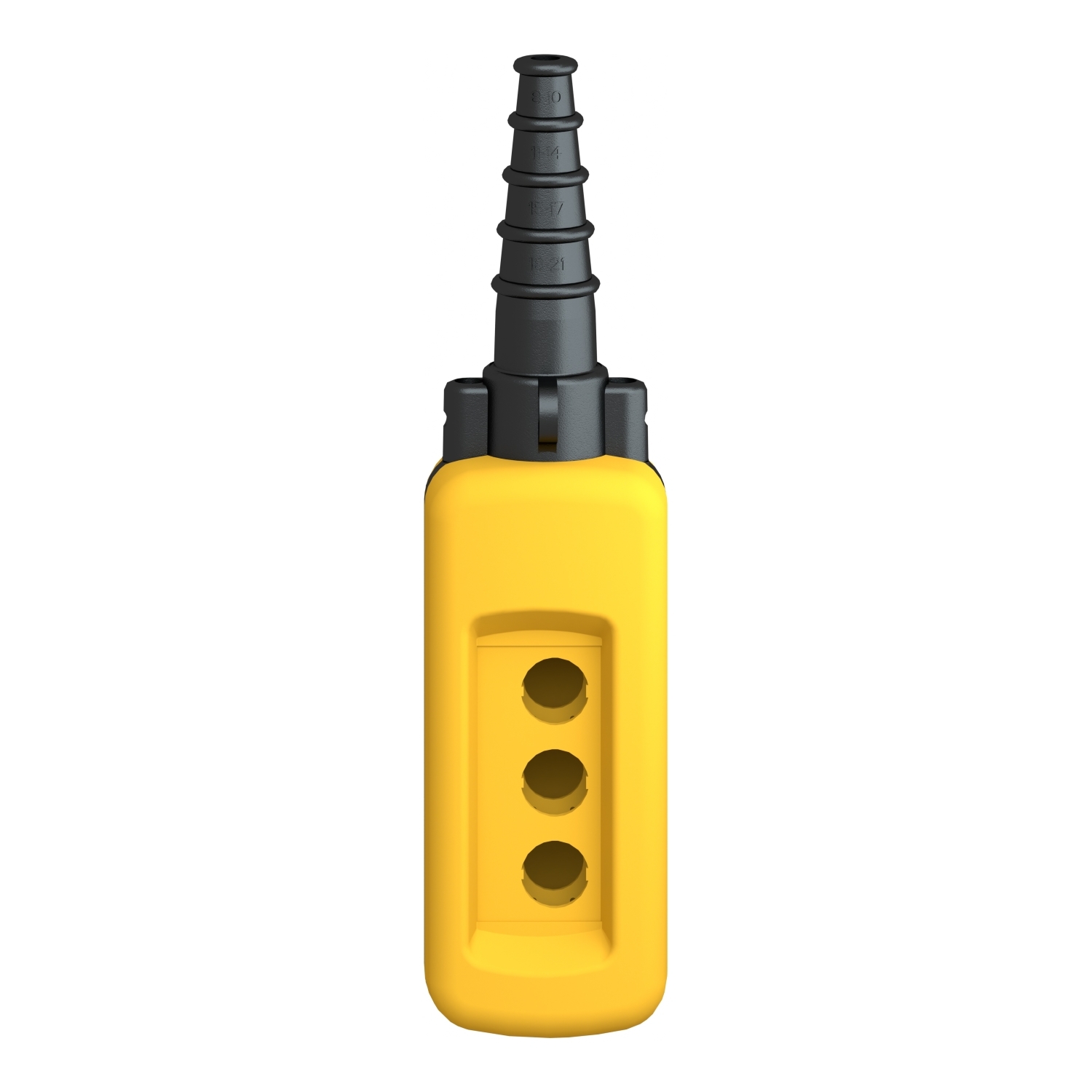

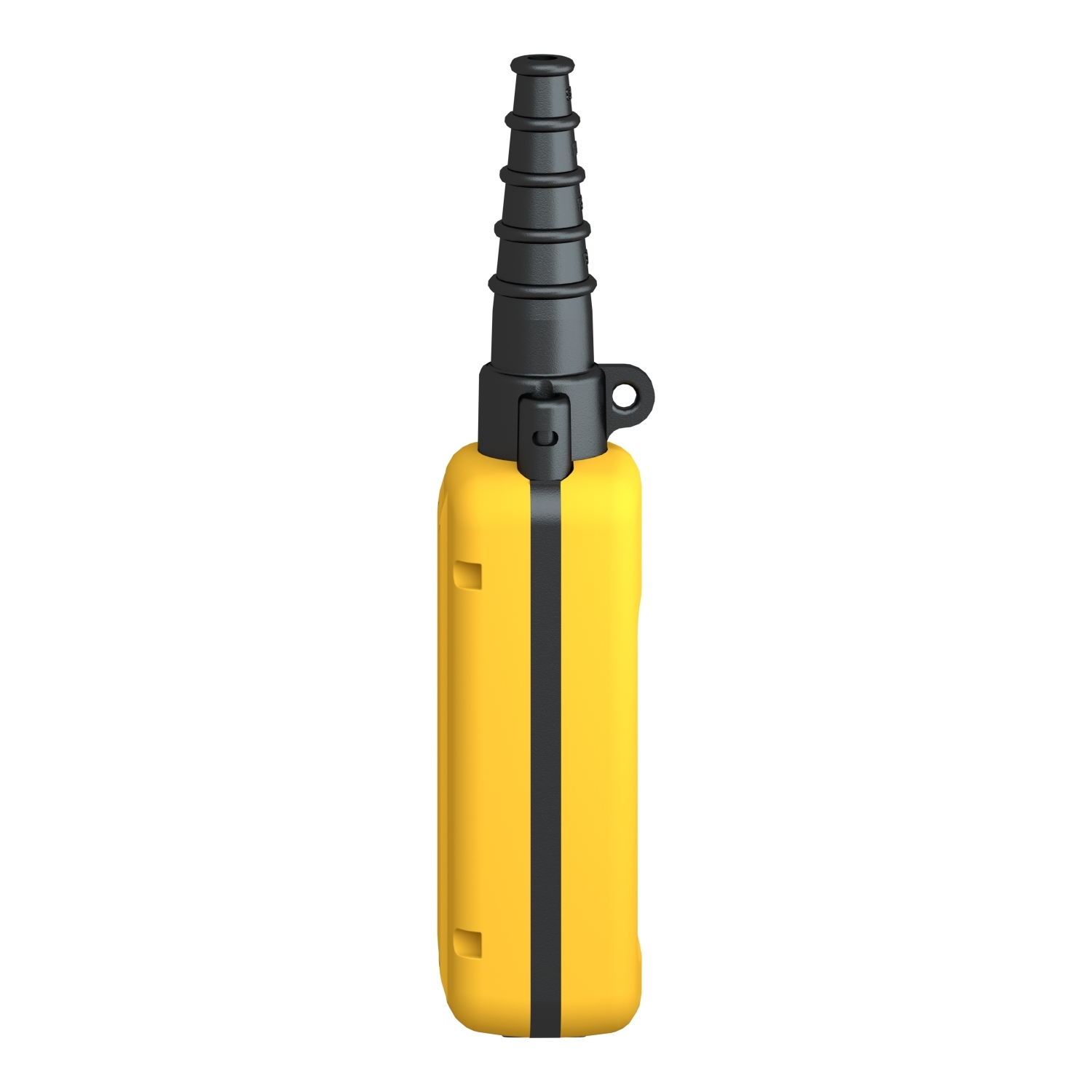

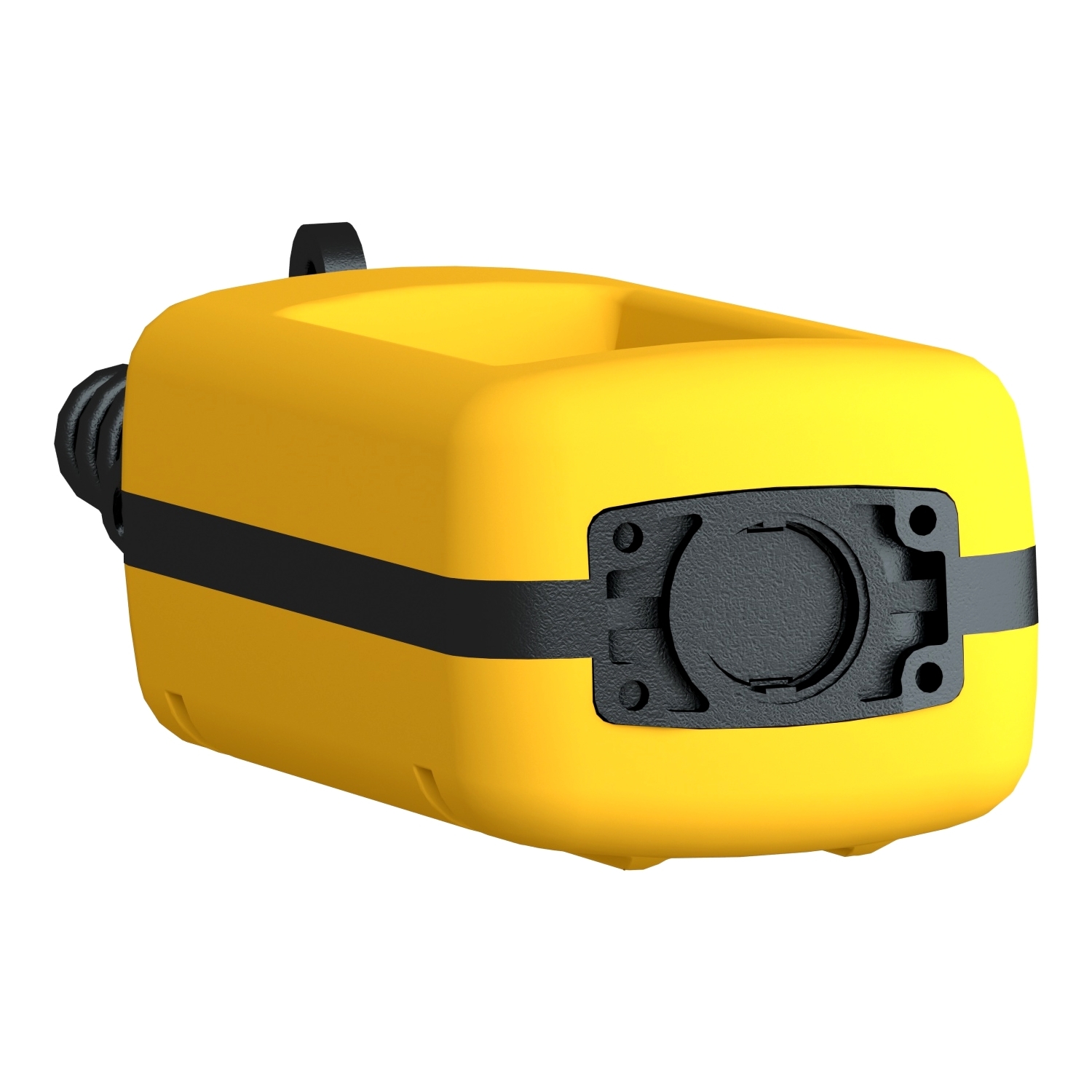

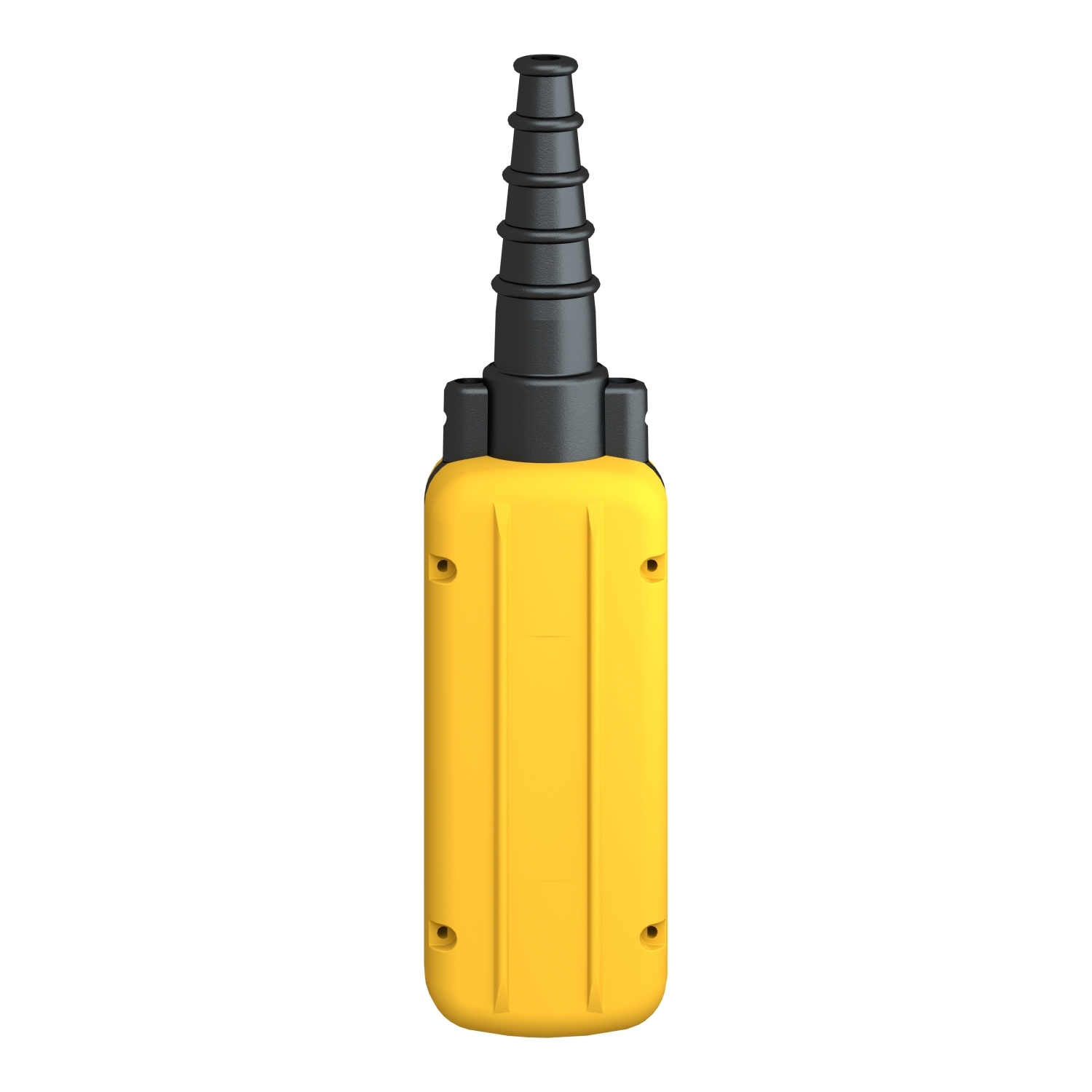

This Harmony XACA03H7 is a empty pendant control station with 3 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Manuals & Documentation
| Catalog Number | XACA03H7 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control circuit |
| Cable Entry | Rubber sleeve with stepped entry 8-26 mm |
| Enclosure | Polypropylene |
| Special Features | Empty enclosure |
| Standard | CSA;GOST;UL;CCC;IK08 conforming to EN 50102;UL 508;EN/IEC 60204-32;CSA C22.2 No 14;EN/IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674452&lang=en-us |
| GTIN | 03389118117686 |
| Item Type | Pendant control station;Double insulated |
