Kaf-Tech

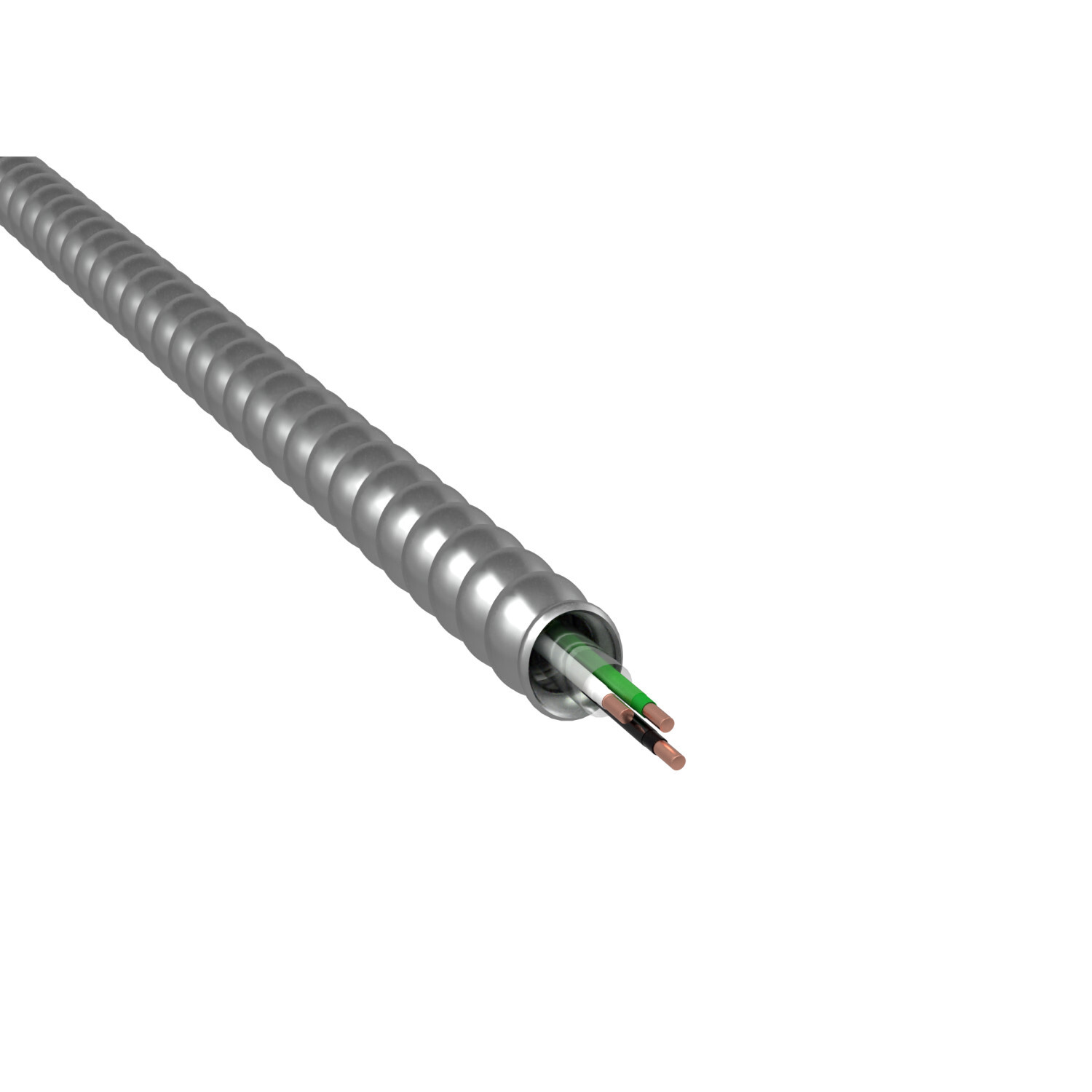

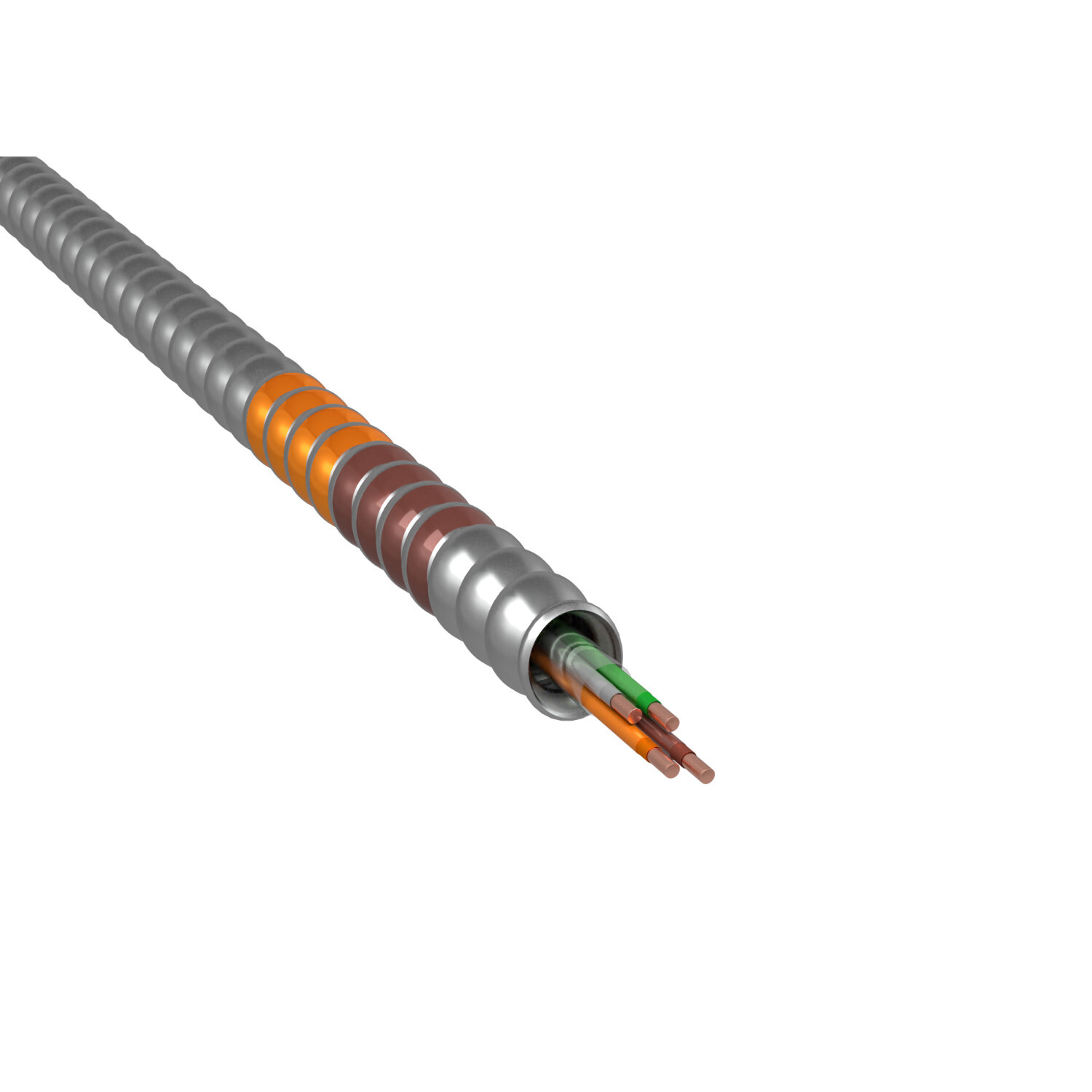

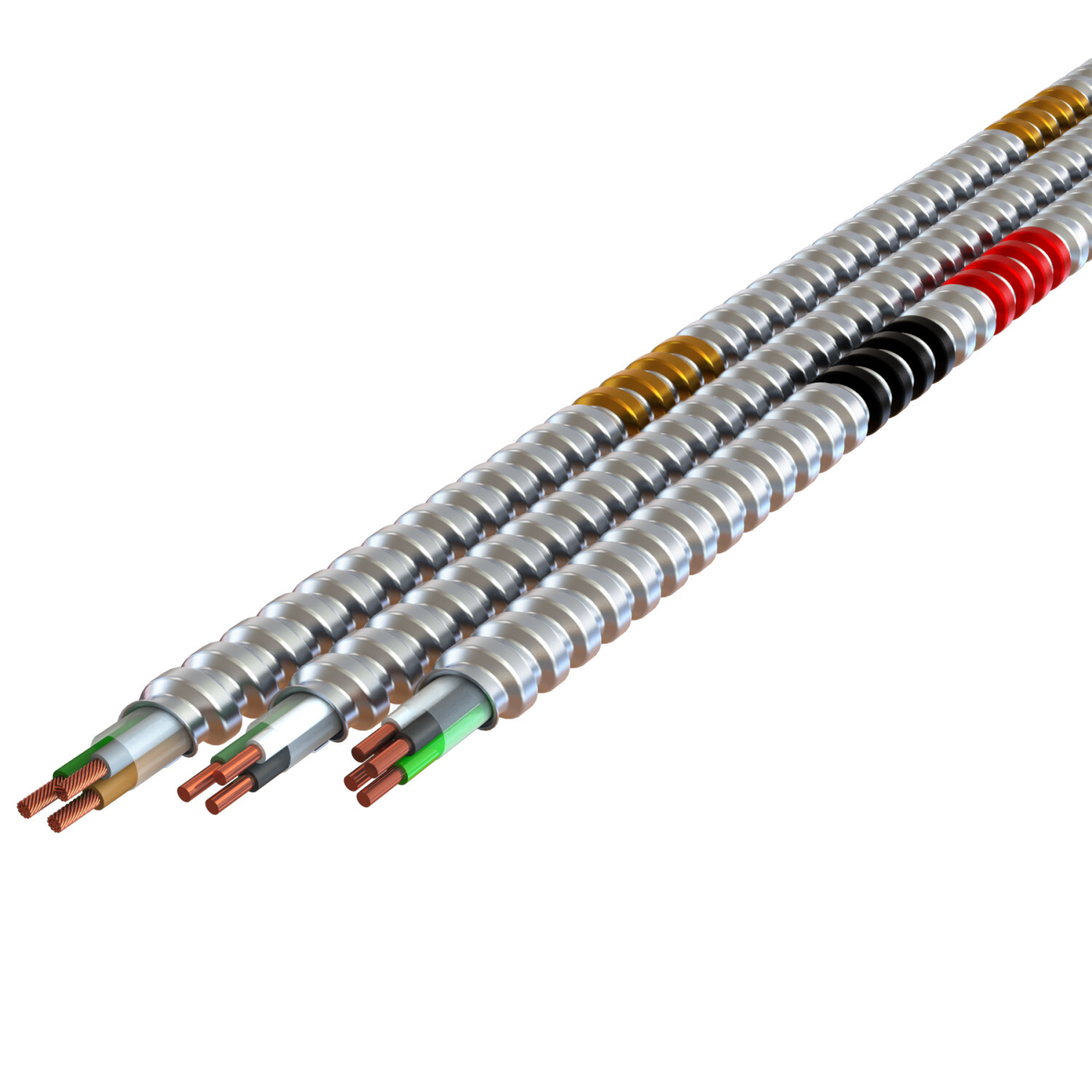

2163-42-01 MC Lite Type MC Traditional Metal Clad Armored Cable With Grounding and Neutral Conductor, Coil Packaging, 600 V AC, (4) 10 AWG Stranded Copper Conductor, 250 ft L

MFR:
ATKORE - KAF-TECH
MFR #:
2163-42-01
UPC:
077680182845
Item #:
230011

Atkore's aluminum interlocked armor Type MC cables are named MC Lite and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

Manuals & Documentation
Catalog Number 2163-42-01
Manufacturer ATKORE - KAF-TECH
Brand Kaf-Tech
Country of Origin United States
Made in USA Yes
Armour Interlocked Aluminum Strip
Color Plain
Conductor Material Copper
Conductor Size 4 AWG
Insulation Material THHN
Number of Conductors 5
Special Features May be surface mounted, fished and/or embedded in plaster; Cable tray rated, install per NEC; UL Classified 1, 2, and 3 hour through (Fire) penetration product, R-14141; Environmental air-handling space installation per NEC 300.22; Made in USA of US and/or imported materials
Standard UL 83, 1479, 1569, 1581, 2556 File Numbers E80042 And R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant
UPC 077680182845
GTIN 00077680182845
Item Type Traditional Type MC Cable With Ground And Neutral
Length 250
Length UOM Foot
Weight 0.2552 LB/FT
Outside Diameter 0.704 IN
Temperature Rating 90
Voltage Rating 600V
