Appleton

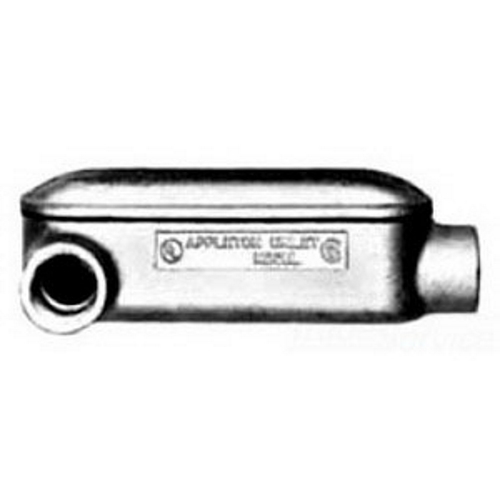

Mogul Unilet; Type LR Conduit Outlet Body; 2 Inch, Threaded, Malleable Iron

MFR:
Appleton Electric
MFR #:
BLR200-M
UPC:
781381463614
Item #:
229870

Mogul UNILETS Type LR NEC 6X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 2 IN, Length: 14.63 IN, Width: 4.13 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connec

Manuals & Documentation
Catalog Number BLR200-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit And IMC
Connection Tapered Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Hub Size 2 IN
Material Malleable Iron
Special Features Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; The second hub is in the side LR right instead of the back; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 134 CU-IN
Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381463614
GTIN 00781381463614
Item Type Type LR NEC 6X Conduit Outlet Body With Assembled Cover And Gasket
Length 14.63
Length UOM Inch
Width 4.13
Width UOM Inch
