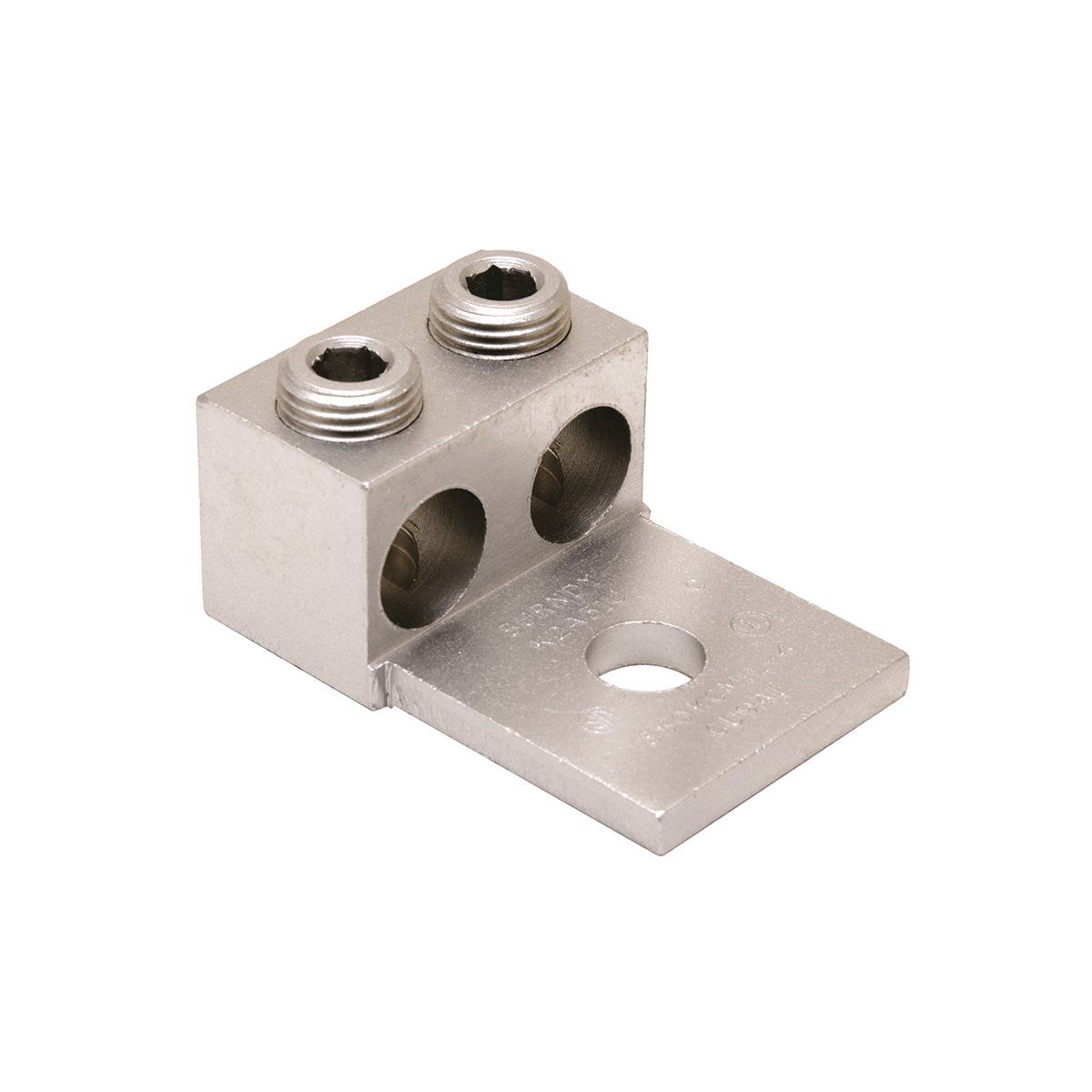

K2A31U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- K2A31U
- UPC:
- 781810600153
- Item #:
- 229563
K2A31U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum
- MFR #:
- K2A31U
- UPC:
- 781810600153
- Item #:
- 229563
Manuals & Documentation
| Catalog Number | K2A31U |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Aluminum And Copper Conductors |
| Material | Aluminum |
| Number of Conductors | 2 |
| Special Features | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension D: 1.69 IN, Dimension N: 0.88 IN, Dimension T: 0.25 IN, Installation Torque: 275 IN-LB, Length: 2.88 IN, Width: 1.94 IN, Height: 1.25 IN, Stud/bolt Hole Size: 1/2 IN |
| Standard | UL 486A-486B |
| UPC | 781810600153 |
| GTIN | 00781810600153 |
| Item Type | Bolted Lugs & Terminals |
| Temperature Rating | 194 |
| Cross Reference Products | AU-350 |
