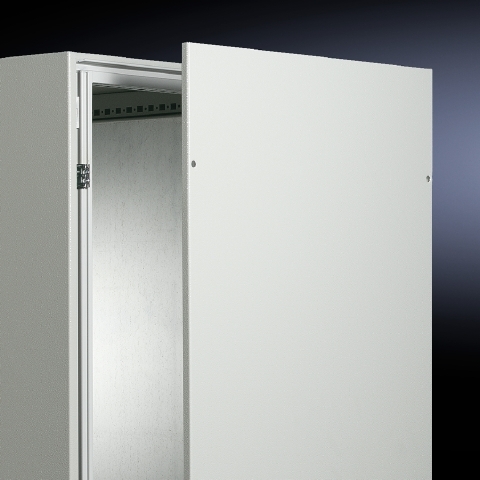

8175235 Side Wall Panel, 1200 mm H 800 mm D, For Use With TS, TS IT Series IP55 Enclosure, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 8175235
- UPC:
- 639889372337
- Item #:
- 22936
8175235 Side Wall Panel, 1200 mm H 800 mm D, For Use With TS, TS IT Series IP55 Enclosure, Sheet Steel
- MFR #:
- 8175235
- UPC:
- 639889372337
- Item #:
- 22936
Side panels, screw-fastened, sheet steel, for TS, TS IT, material: Sheet steel, 1.5 mm, surface: dipcoat-primed, powder-coated on the outside, color: RAL 7035, supply includes: Assembly parts, description: Side panels, screw-fastened, sheet steel, for TS. Packaging Unit: 2 pc(s).
Features
- Automatic potential equalisation and higher EMC protection due to enclosure panel holders with earthing insert
- Easy positioning with the location aid
- Earthing bolt with contact surface
- Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure
| Catalog Number | 8175235 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035 |
| Consist of | Assembly Components |
| Material | Sheet Steel |
| Special Features | Features: Automatic Potential Equalization and Higher EMC Protection, Easy Positioning with the Location Aid, Grounding Bolt with Contact Surface |
| RoHS Indicator | Yes |
| UPC | 639889372337 |
| GTIN | 00639889372337 |
| Item Type | Side Panel |
| Length | 2.9530 |
| Length UOM | Inch |
| Width | 33.8580 |
| Width UOM | Inch |
| Height | 51.1810 |
| Height UOM | Inch |
| Weight | 26.235 |
| Weight UOM | Pounds |
