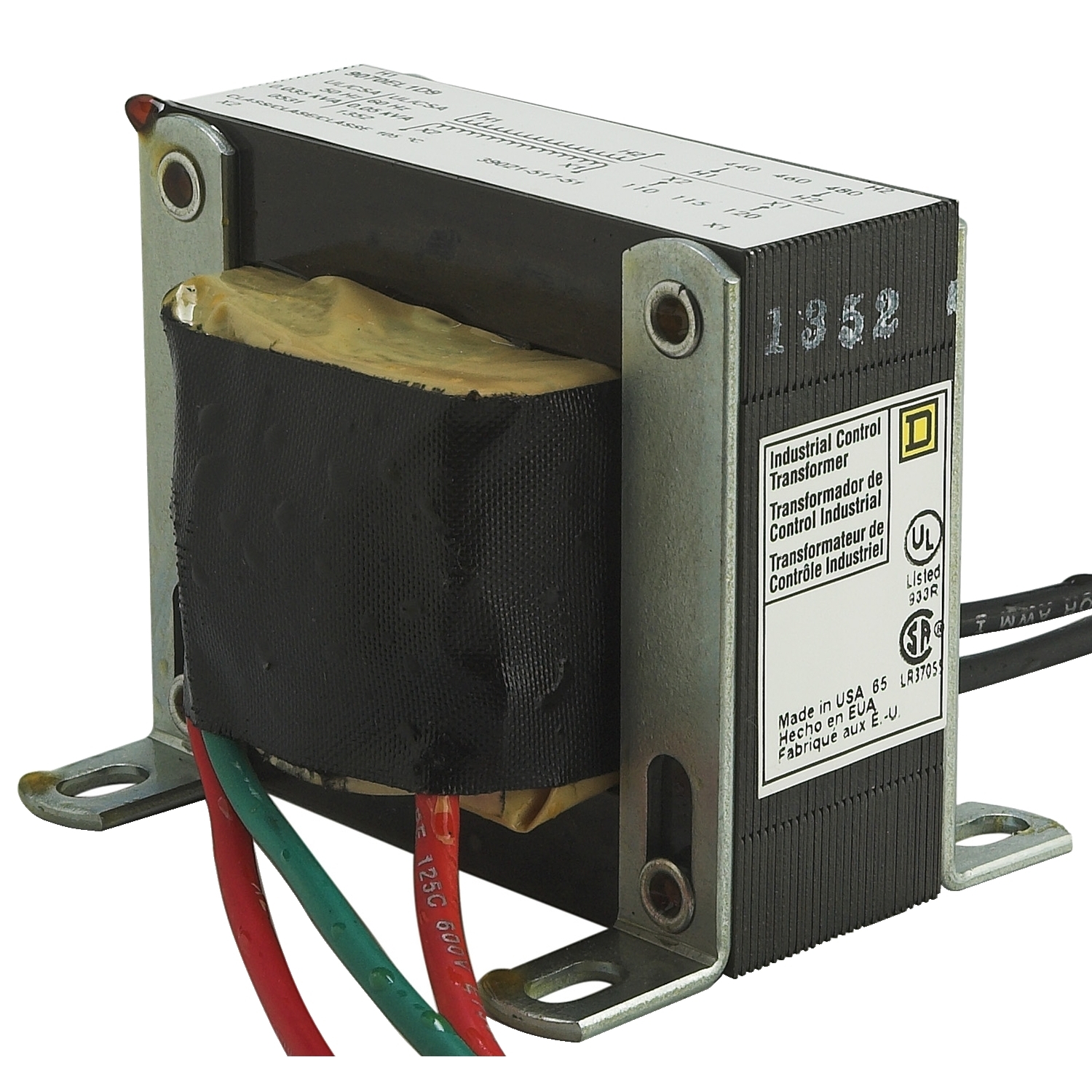

9070EL1D9 OsiSense Type EL Industrial Wire Wound Control Transformer With 24 in Lead, 440/460/480 V AC Primary, 110/115/120 VAC Secondary, 50 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Schneider Electric
- MFR #:
- 9070EL1D9
- UPC:
- 785901020219
- Item #:
- 229231
9070EL1D9 OsiSense Type EL Industrial Wire Wound Control Transformer With 24 in Lead, 440/460/480 V AC Primary, 110/115/120 VAC Secondary, 50 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- 9070EL1D9
- UPC:
- 785901020219
- Item #:
- 229231
Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. This Industrial Control transformer, is 1 phase, with a rated voltage of 50 VA. This transformer, has primary voltages of 480/440/460 V and secondary voltages of 115/120/110 V. This product has a temperature rise of 55 C and a insulated temperautre of 105 C. This product complys to UL listed,CSA & CE standards. This product comes with a 610 m lead and has screw clamp terminals connections.
Manuals & Documentation
| Catalog Number | 9070EL1D9 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=450643&lang=en-us |
| UPC | 785901020219 |
| GTIN | 00785901020219 |
