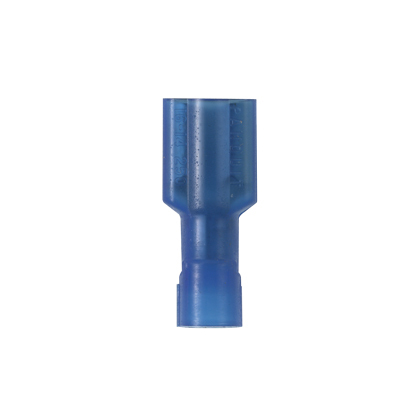

DNF14-250FI-L Pan-Term Type DNF-FI Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Blue, Fully Barrel Insulated
- MFR:
- Panduit
- MFR #:
- DNF14-250FI-L
- UPC:
- 074983119066
- Item #:
- 228493
DNF14-250FI-L Pan-Term Type DNF-FI Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Blue, Fully Barrel Insulated
- MFR #:
- DNF14-250FI-L
- UPC:
- 074983119066
- Item #:
- 228493
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.94 (23.9 mm) long and 0.36 (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 50.
Manuals & Documentation
| Catalog Number | DNF14-250FI-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983119066 |
| GTIN | 00074983119066 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
