Appleton

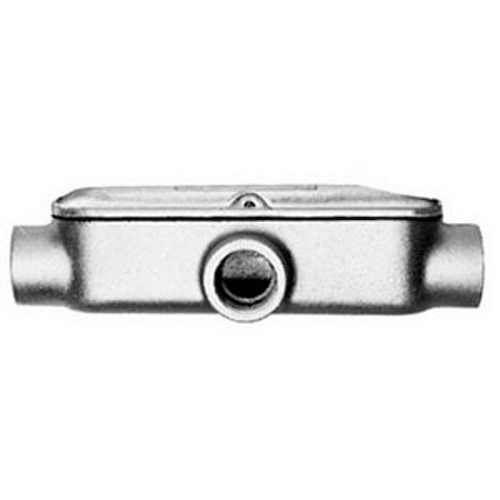

Unilet; Mogul Type T Conduit Outlet Body; 1 Inch, Malleable Iron Body, Neoprene Gasket, Triple Coat (Zinc Electroplate, Chromate and Epoxy Powder Coated)

MFR:
Appleton Electric
MFR #:
BT100-M
UPC:
781381459532
Item #:
228367

Mogul UNILETS Type T NEC 8X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 1 IN, Length: 9.81 IN, Width: 3-1/4 IN, Height: 2-3/4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powd

Manuals & Documentation
Catalog Number BT100-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit And IMC
Connection Tapered Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Hub Size 1 IN
Material Malleable Iron
Special Features Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; These are like C moguls (1 IN through 4 IN), except with an additional middle side hub-distance between the centerline of each C hub conduit stop exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1); Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 31 CU-IN
Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381459532
GTIN 00781381459532
Item Type Type T NEC 8X Conduit Outlet Body With Assembled Cover And Gasket
Length 9.81
Length UOM Inch
Width 3-1/4
Width UOM Inch
Height 2-3/4
Height UOM Inch
