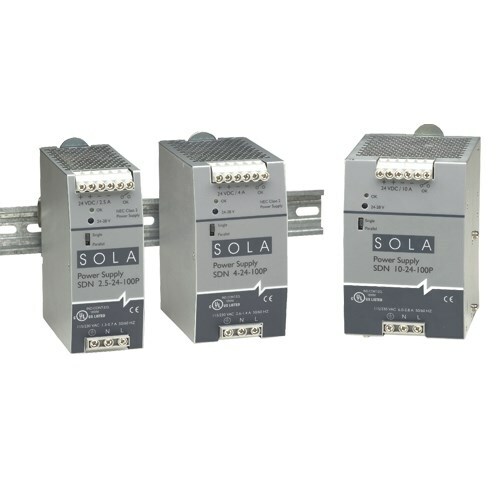

SDN5-48-100P SDN-P Compact Power Supply, 115/230 V AC Input, 48 VDC Output, 240 W Power Rating, 3.8 A, DIN Rail Mount
- MFR:
- SolaHD
- MFR #:
- SDN5-48-100P
- UPC:
- 783472001910
- Item #:
- 228357
SDN5-48-100P SDN-P Compact Power Supply, 115/230 V AC Input, 48 VDC Output, 240 W Power Rating, 3.8 A, DIN Rail Mount
- MFR #:
- SDN5-48-100P
- UPC:
- 783472001910
- Item #:
- 228357
Manuals & Documentation
| Catalog Number | SDN5-48-100P |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Application | Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation |
| Cable Size | 16 - 10 AWG Solid |
| Enclosure | Nema 4X, IP66/67 |
| Frequency Rating | 50/60/400 |
| Material | Metal Housing |
| Mounting | Chassis |
| Phase | 1 |
| Special Features | IP66/67 Versatile/NEMA 4X Rated, 24 Vdc, 115/230 Vac, 3.8A Nominal Current, Listed power supply for stand-alone applications, Can be mounted in any orientation without limitation, Universal input, High ambient temperature up to 60oC without derating, DC OK Green LED. |
| Standard | cULus Listed Ind. Control Equipment, E61379, ITE, E137632, UL 508, CSA C22.2 No. 107.1, UL 60950-1/CSA C22.2 No. 60950-1, 2nd Edition, UL Recognized Component Haz. Loc. E234790; CE Low Voltage Directive IEC/EN60950-1, 2nd Edition, RoHS Compliant |
| UPC | 783472001910 |
| GTIN | 00783472001910 |
| Item Type | SCP-X Extreme Environment Series |
| Length | 6.54 |
| Width | 5.33 |
| Height | 1.8 |
| Environmental Conditions | 110 RH Humidity Range |
| Voltage Rating | 24 |
| Wattage | 95 |
| Cross Reference Products | SolaHD SDN5-48-100P|VInfinity VSBU12048 |
