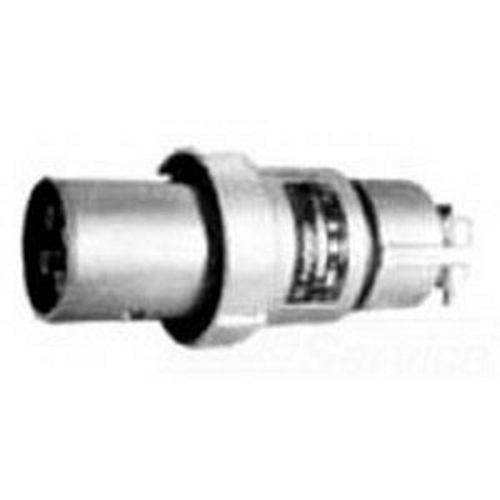

ACP15034CD Powertite ACP 3-Phase Grounding Style 2 Clamping Ring Plug, 250/600 V AC/V DC, 150 A, 4 Poles, 3 Wires
- MFR:
- Appleton Electric
- MFR #:
- ACP15034CD
- UPC:
- 781381098571
- Item #:
- 228274
ACP15034CD Powertite ACP 3-Phase Grounding Style 2 Clamping Ring Plug, 250/600 V AC/V DC, 150 A, 4 Poles, 3 Wires
- MFR #:
- ACP15034CD
- UPC:
- 781381098571
- Item #:
- 228274
Powertite Grounding Style 2 Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2 - 2/0 AWG (Building And Extra Flex), Amperage Rating: 150 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material:
Manuals & Documentation
| Catalog Number | ACP15034CD |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 150 |
| Application | For ADR15034 Receptacle And ARC15034CD Connector Body |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 0.525 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381098571 |
| GTIN | 00781381098571 |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| Cross Reference Products | Crouse APJ15487 |
