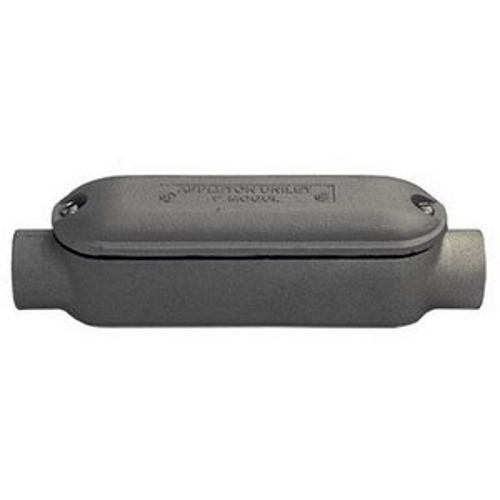

Mogul Unilet; Type C Conduit Outlet Body; 1 Inch, Threaded, Malleable Iron
- MFR:
- Appleton Electric
- MFR #:
- BC100-M
- UPC:
- 781381456746
- Item #:
- 228073
Mogul Unilet; Type C Conduit Outlet Body; 1 Inch, Threaded, Malleable Iron
- MFR #:
- BC100-M
- UPC:
- 781381456746
- Item #:
- 228073
Mogul UNILETS Type C NEC 8X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 1 IN, Length: 9.81 IN, Width: 2.38 IN, Height: 2-3/4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powde
Manuals & Documentation
| Catalog Number | BC100-M |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Rigid Metal Conduit And IMC |
| Connection | Tapered Female Threaded |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Hub Size | 1 IN |
| Material | Malleable Iron |
| Special Features | Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1); Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 31 CU-IN |
| Standard | UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| UPC | 781381456746 |
| GTIN | 00781381456746 |
| Item Type | Type C NEC 8X Conduit Outlet Body With Assembled Cover And Gasket |
| Length | 9.81 |
| Length UOM | Inch |
| Width | 2.38 |
| Width UOM | Inch |
| Height | 2-3/4 |
| Height UOM | Inch |
