IDEAL®

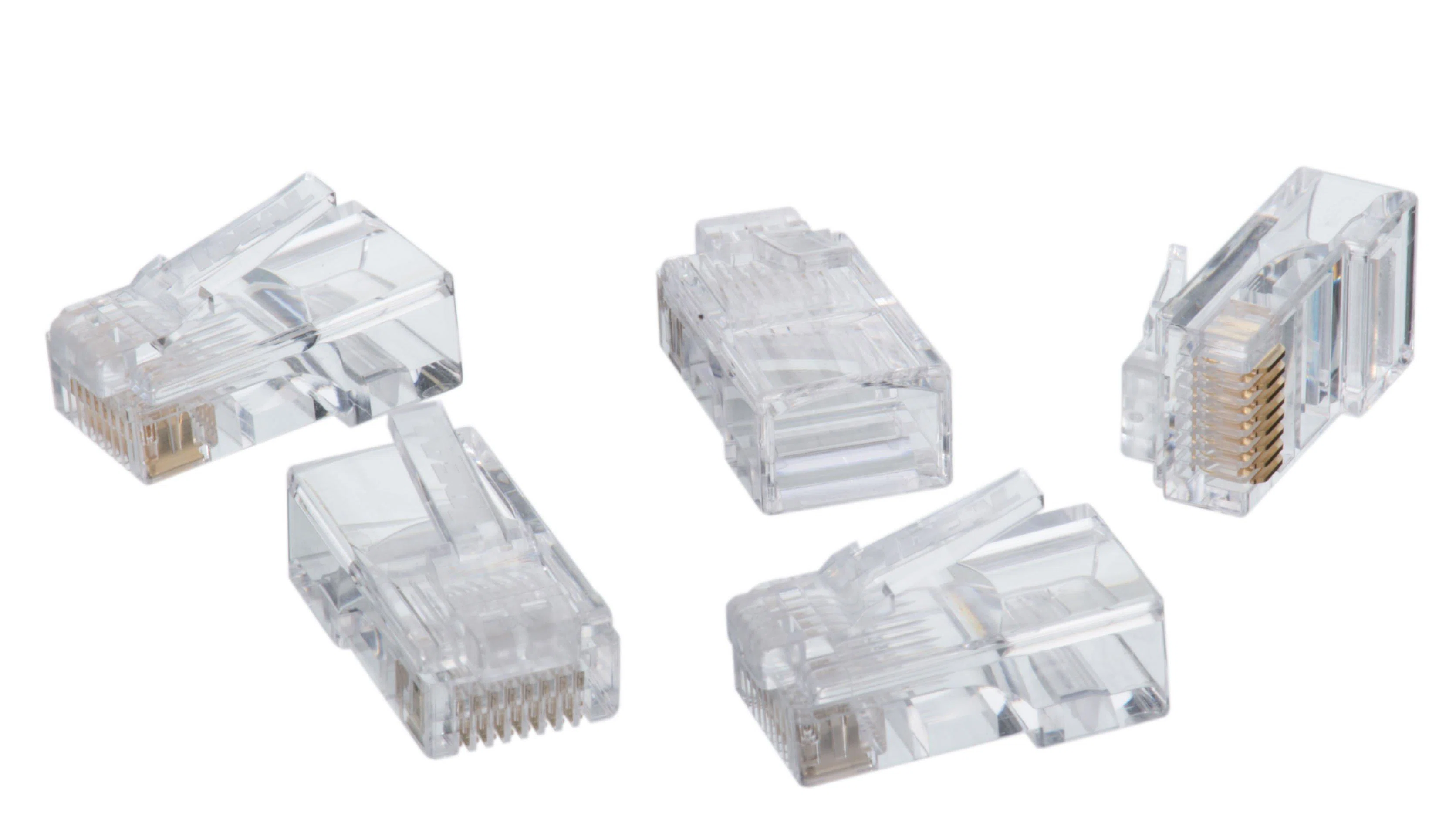

86-396 8P8C Non-Keyed Round Modular Plug, Solid Conductor, Plastic

MFR:
Ideal Industries
MFR #:
86-396
UPC:
783250863969
Item #:
227657

CAT5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100 MHz. IDEAL modular plugs are designed to work seamlessly with the IDEAL Telemaster and FT-45 series of modular plug crimp tools. Plugs are designed and manufactured to support all 100O cable wiring schemes including the widely used TIA-568A and TIA-568B configurations.

Manuals & Documentation

Features

  • 8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 100 MHz cables
  • 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
  • Designed to work seamlessly with IDEAL Telemastercrimping tools
  • Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors
Manufacturer Part Number 86-396
Brand IDEAL®
Manufacturer Ideal Industries
UPC 783250863969
EAN 0783250863969
Country Of Origin TW
Cable Type Cat 5e/Cat 3
Color Clear
Conductor Size 24 AWG
Conductor Type Solid
Dimensions 7 in L x 4 in W x 2 in H
Material Plastic
Type 8P8C Non-Keyed Round
Alternative Part Number 8171454
Manufacturer Item Status Active
Country USA
Standards Approvals RoHS Compliant | UL Listed
Application Mod Plug Terminating of UTP 24 AWG Cat 5 or 5E
Termination Type Crimp
