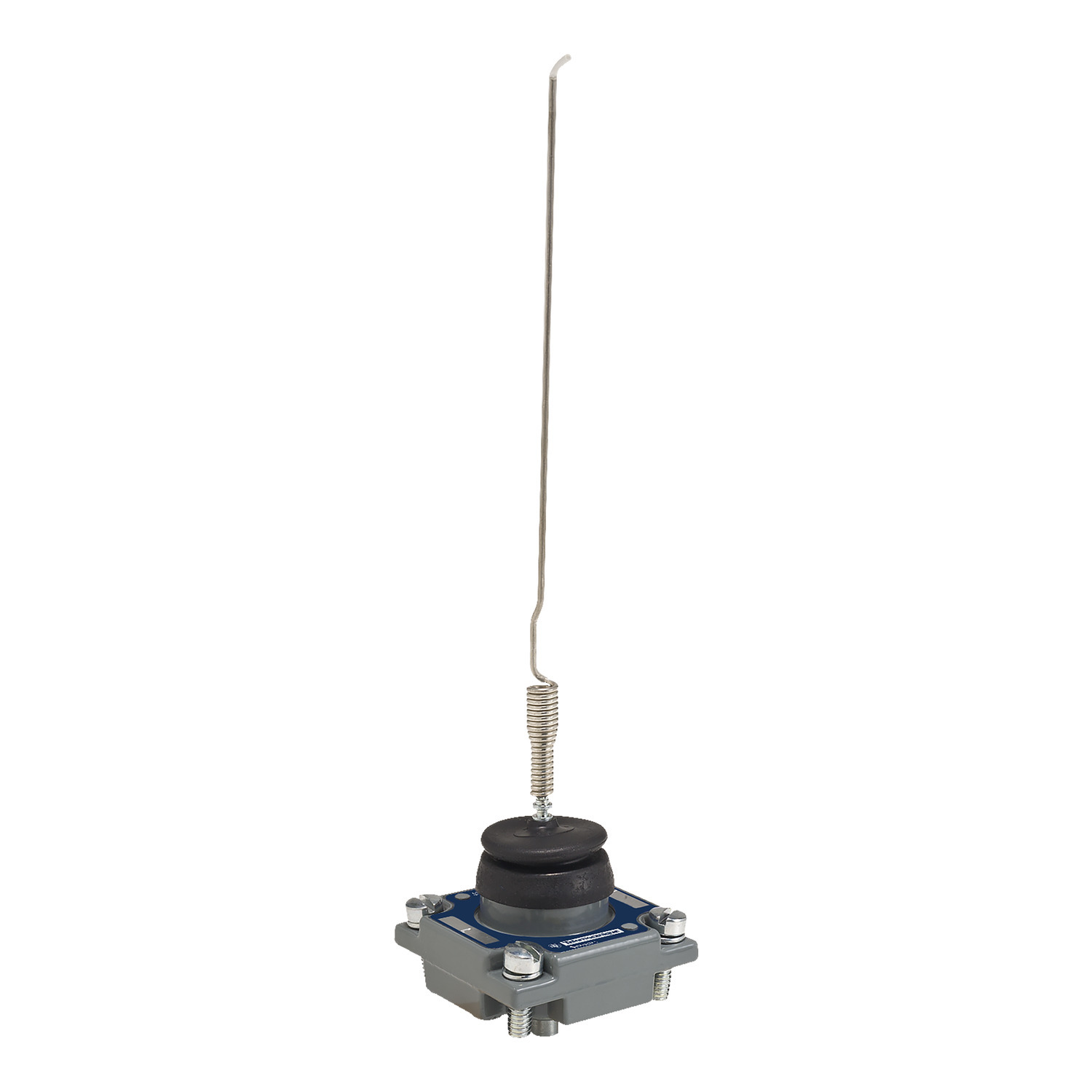

9007L Osisense Heavy Duty Multi-Directional Limit Switch Head, Top Cat Whisker, For Use With 9007C Series Limit Switch, 1/2/4/6/6P/12/13 NEMA Rating

MFR:
Telemecanique Sensors
MFR #:
9007L
UPC:
785901543558
Item #:
225002

These industrial heavy duty limit switches are applied in almost any environments. This replacement cat whisker limit switch head can be used on any of the 9007C bodies types. The limit switch head will actuate the snap action contacts as the cat whisker is moved in any direction. This limit switch head is NEMA 1, 2 4, 6, 6P, 12 and 13 rated when properly assembled to a 9007C body. It is also rated IP67. Limit switch head is UL listed and CSA certified. It weighs 0.17kg. It is compatible with 9007C heavy duty metal limit switches. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Manuals & Documentation
Catalog Number 9007L
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Multi-directional approach, multi-directional approach;Any direction
Actuator Spring return wire whisker steel -
Application 9007C
Standard UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=377551&lang=en-us
UPC 785901543558
GTIN 00785901543558
Item Type Limit switch head
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature 0-185 A Degrees F
