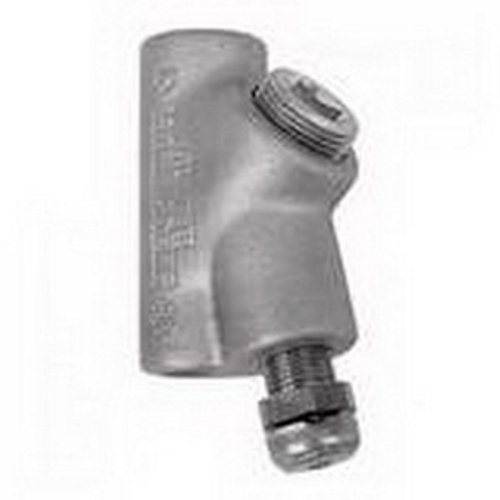

Vertical Drain Seal Fitting, 1 inch, FNPT x FNPT, Gray Iron
- MFR:
- Appleton Electric
- MFR #:
- EYD3
- UPC:
- 781381620772
- Item #:
- 224516
Vertical Drain Seal Fitting, 1 inch, FNPT x FNPT, Gray Iron
- MFR #:
- EYD3
- UPC:
- 781381620772
- Item #:
- 224516
UNILETS EYD Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting, Size: 1 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered FNPT, Turning Radius: 1.38 I
Manuals & Documentation
Features
- Explosion proof, dust-ignition proof and raintight
- Smooth, rounded integral bushing
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- UL listed
- CSA certified
| Catalog Number | EYD3 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Color | Gray |
| Connection | Tapered FNPT |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Material | Grayloy-Iron |
| Special Features | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; U |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381620772 |
| GTIN | 00781381620772 |
| Item Type | EYD Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting |
| Length | 12.1000 |
| Length UOM | Inch |
| Width | 5.6000 |
| Width UOM | Inch |
| Height | 1.0600 |
| Height UOM | Inch |
| Weight | 2.200 |
| Weight UOM | Pounds |
| Size | 1 |
