HVMB305200 Fusible Mini Break, For Use With HVL/HVLcc Medium Voltage Metal Enclosed Load Interrupter Switchgear, 5 kV, 200 A
- MFR:
- Schneider Electric
- MFR #:
- HVMB305200
- UPC:
- 785901078173
- Item #:
- 224428
HVMB305200 Fusible Mini Break, For Use With HVL/HVLcc Medium Voltage Metal Enclosed Load Interrupter Switchgear, 5 kV, 200 A
- MFR #:
- HVMB305200
- UPC:
- 785901078173
- Item #:
- 224428

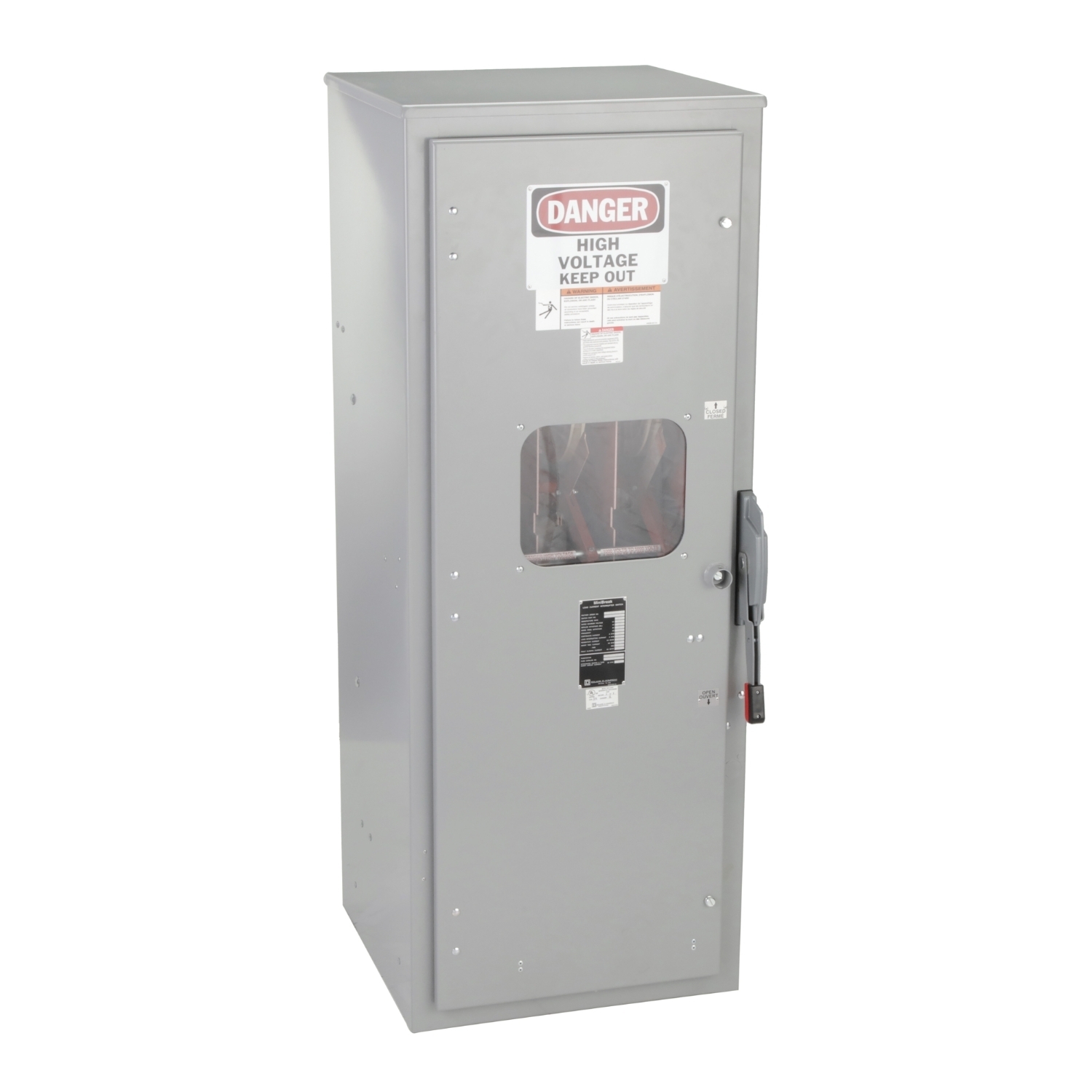

MiniBreak load interrupter switch in compact height enclosures is individual metal enclosed medium voltage switchgear. MiniBreak compact height switches have an enclosure that is only 66 inches high. This switch contains a single 3 pole load interrupter switch that is rated 5.5 kV and 200 A. The enclosures is free standing and is suitable for both NEMA 1 indoor and NEMA 3R outdoor applications. These switches are available unfused or with provisions for ANSI style, 3 inch barrel fuses rated from 10E A to 200E A. This is device is an fused version. Factory installed accessories include an auxiliary switch, strip heaters, and provisions for a key interlock. The door is mechanically interlocked with the switch operating handle. The interrupter switch has set screw cable lugs that for solid 14 AWG to stranded 2/0 AWG copper or aluminum cable. The lugs are on the two line and one load connections. This metal enclosed medium voltage switchgear complies with category B of the UL construction standards.
Manuals & Documentation
| Catalog Number | HVMB305200 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| UPC | 785901078173 |
| GTIN | 00785901078173 |
| Item Type | Load break switch |
| Length | 17.4 |
| Length UOM | Inch |
| Diameter | 2.0 IN |
