Manuals & Documentation
Catalog Number HW13
Manufacturer Acuity Brands
Brand SensorSwitch
Warranty Description 5 Year Limited. Warranty varies by product. See warranty information at: www.acuitybrands.com/resources/terms-and-conditions
Country of Origin Mexico
Made in USA No
Application Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Retail,Sports and Recreation,Warehouses
Color White
Mounting Surface
Sensing Range 100 degrees

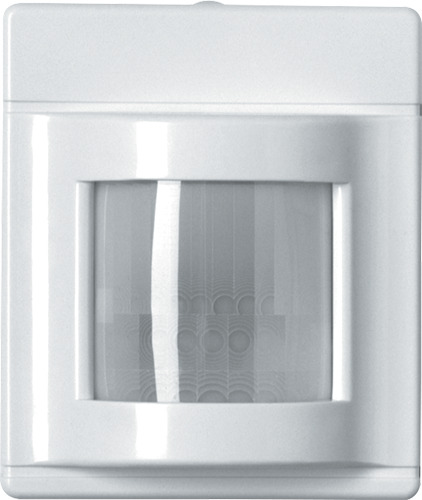

Special Features Long narrow PIR detection for control of hallway lighting is provided by the HW13 Series sensor. Typically mounted at either end of a long corridor, the HW13 detects occupants entering the hallway up to 130 ft away. Detection at these distances is for entrances at right angles to the beam pattern. The HW13 may also be used with other low voltage sensors to adequately view a space. For example, a CM 10 ceiling sensor may be in a vestibule at one end while the HW13 is at the other. The HW13 is best mounted at 7 ft.
Supply Voltage Low Voltage
UPC 745975809561
GTIN 00745975809561
Item Type Occupancy Sensor
Environmental Conditions Indoor
