ACME ELECTRIC

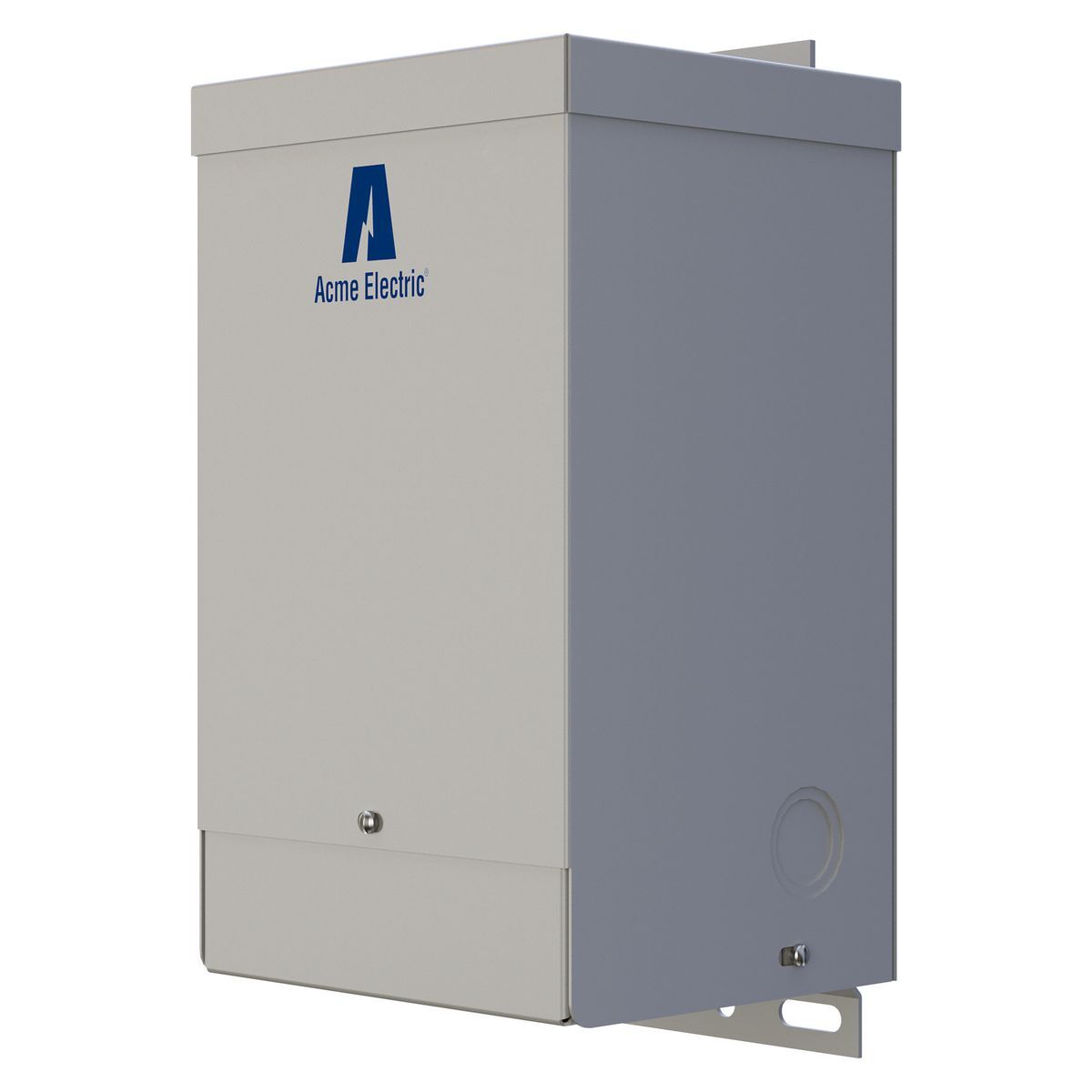

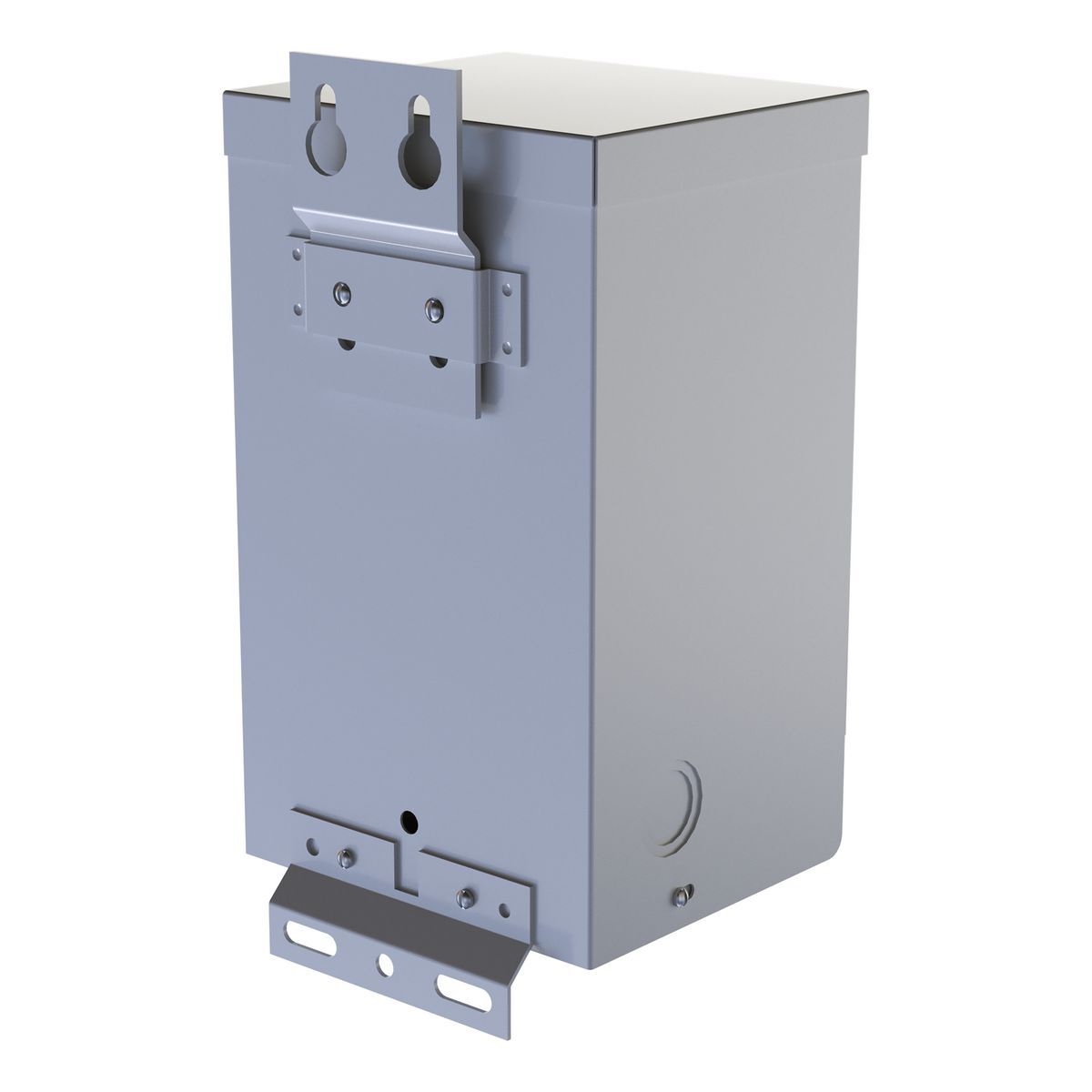

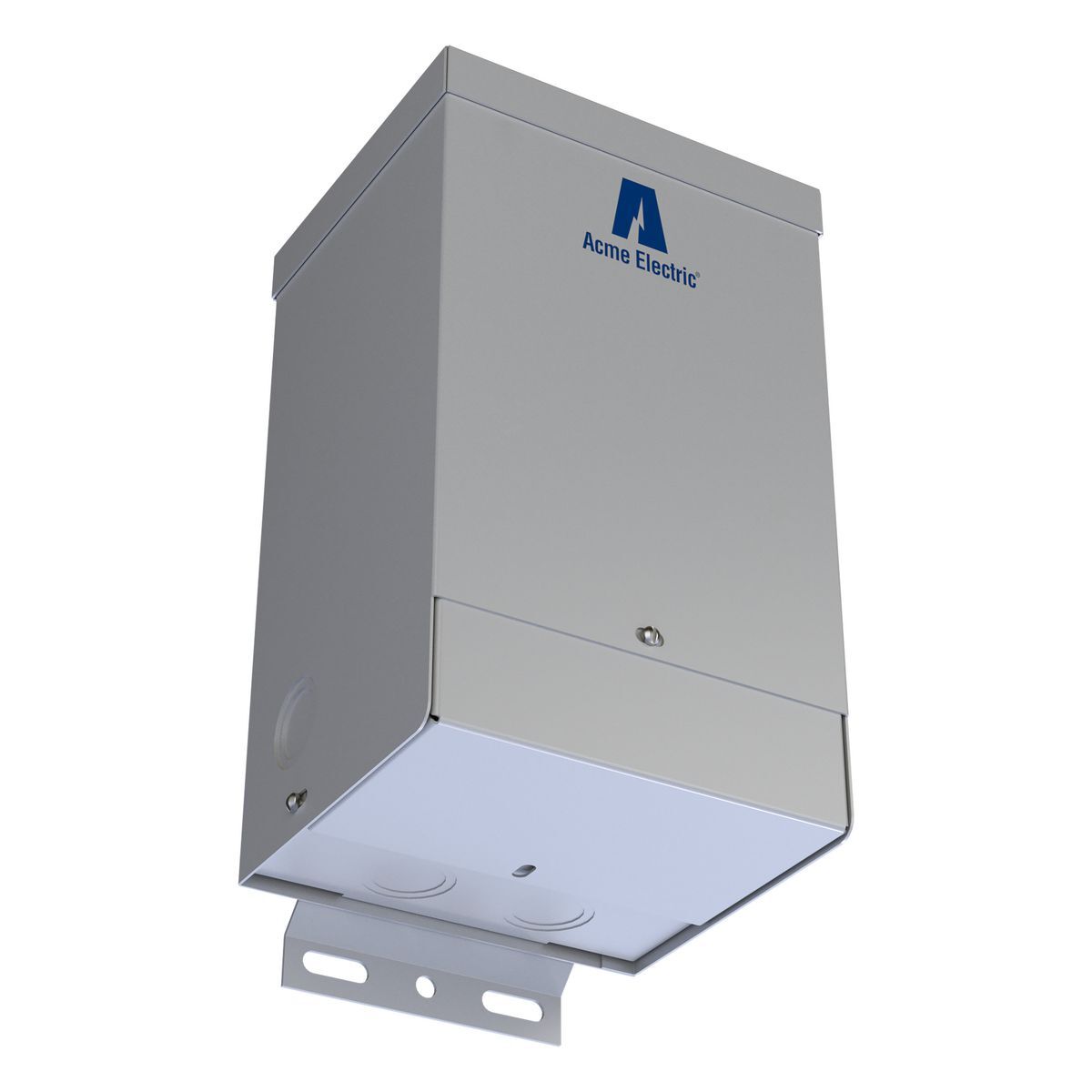

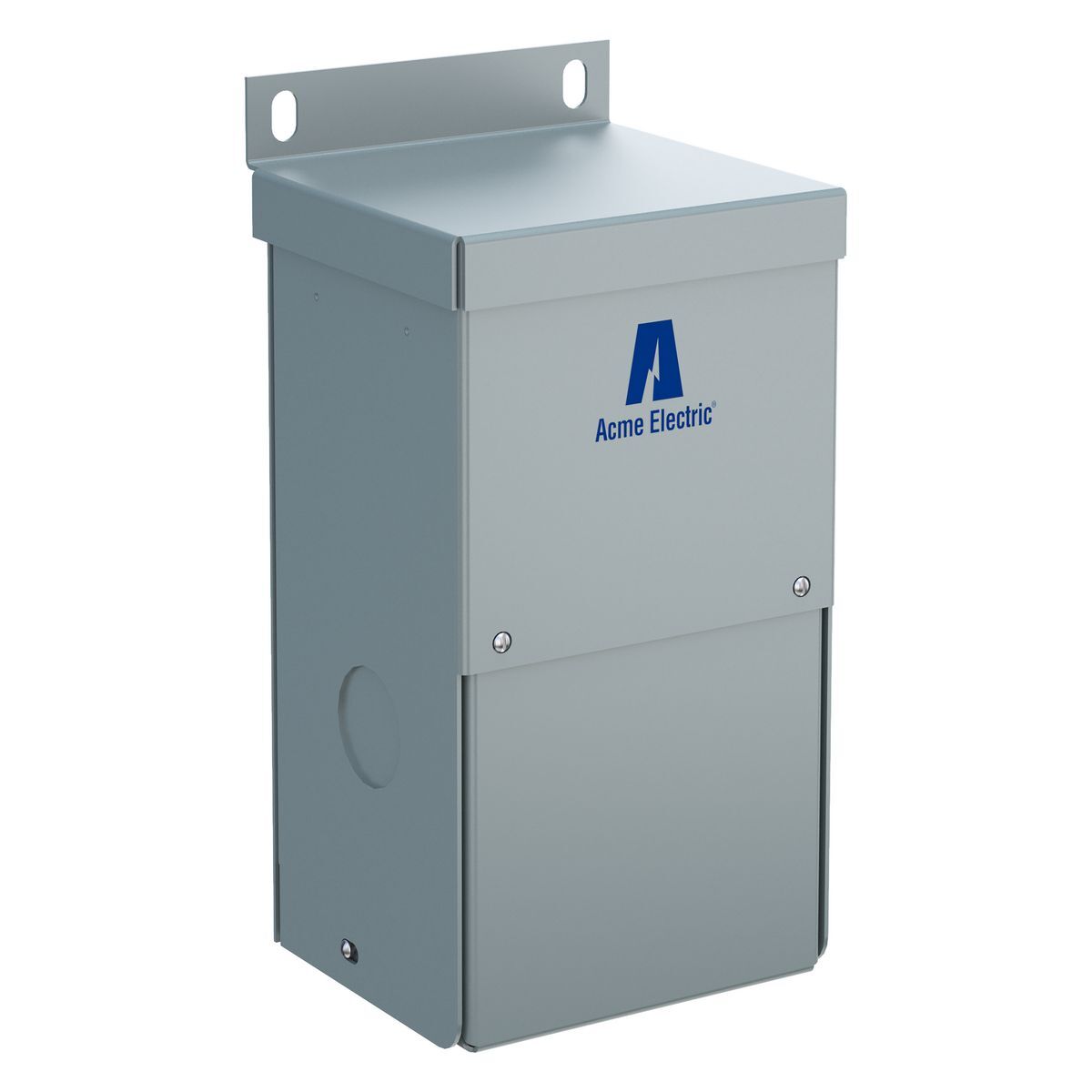

T153005 Air Colled/Dry Distribution Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 0.1 kVA Power Rating, 50/60 Hz, 1 Phase

MFR:
Acme Electric, a Hubbell affiliate
MFR #:
T153005
UPC:
047503085349
Item #:
220854
Manuals & Documentation
Catalog Number T153005
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin China
Made in USA No
Enclosure NEMA 3R Steel
Frequency Rating 50/60 HZ
Mounting Wall
Primary Voltage 240 X 480 V
Secondary Voltage 120/240 V
Special Features Encapsulated core and coil; Easy and convenient installation to meet your re quirements, the transformer can be mounted in any position; Long life UL class 130 DEG C insulation system, transformers can be banked for 3-phase service; Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool; Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction; Plenty of knockouts for multi-directional entry; All copper lead wire terminations; Ground studs for use with non-metallic conduit; 10-year limited warranty
Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number B3223, CSA Certified, OSHA Compliant, ANSI, IEEE
UPC 047503085349
GTIN 00047503085349
Item Type Distribution Transformer
Length 3.67
Length UOM Inch
Width 3.89
Width UOM Inch
Height 7.16
Height UOM Inch
Temperature Rating 115 DEG C Rise
