SCHNEIDER ELECTRIC

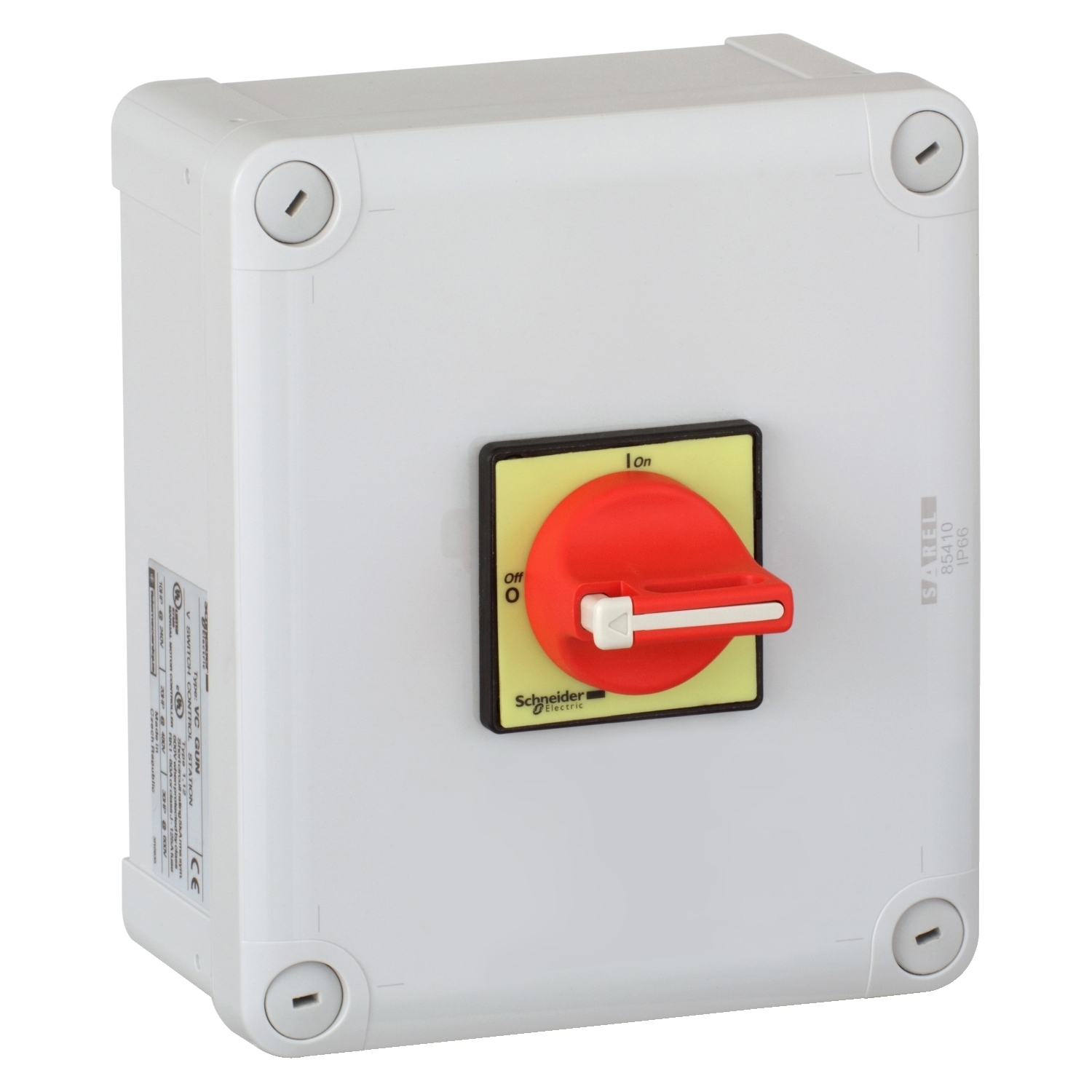

VC3GUN TeSys Emergency Stop Enclosed High Performance Standard Disconnect Switch, 690 V AC/DC, 45 A, 3 Poles

MFR:
Schneider Electric
MFR #:
VC3GUN
Item #:
220448

VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30HP@600V. It provides an IP65 / NEMA type 12 enclosure, V3 Vario switch disconnector and red & yellow operator. VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30HP@600V. It includes a V3 Vario switch disconnector rated 45A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V3 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).

Manuals & Documentation
Catalog Number VC3GUN
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Actuator Red;Rotary handle
Connection screw clamp terminals 25-25 mm² solid - with cable end; screw clamp terminals 16-16 mm² flexible
Number of Poles 3
Special Features 1 to 3 padlocks 4-8 mm;High performance
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61543323&lang=en-us
GTIN 03389119413190
Item Type Enclosed emergency stop switch disconnector
Size 60 x 60 mm
Environmental Conditions Standard environment
