SolaHD

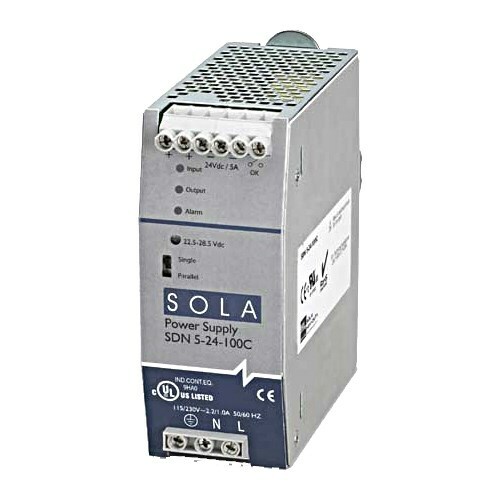

SDN5-24-100C SDN-C Compact Power Supply, 115/230 V AC Input, 24 VDC Output, 120 W Power Rating, 1.65/0.55 A, DIN Rail Mount

MFR:
SolaHD
MFR #:
SDN5-24-100C
UPC:
783472001941
Item #:
220444
Manuals & Documentation
Catalog Number SDN5-24-100C
Manufacturer SolaHD
Brand SolaHD
Country of Origin Philippines
Made in USA No
Application Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment.
Cable Size 16 - 10 AWG Solid
Enclosure NEMA 3R with optional weather shield (WS-15)
Frequency Rating 60
Insulation 220 DEG Insulation System
Material Metal Housing
Mounting Wall
Phase 1
Special Features UL-3R ventilated outdoor enclosures when used with optional weather shields (order separately), UL class 220 DEG C/428 DEG F insulation system, 150 DEG C/302 DEG F temperature rise under full load, Terminal board connections and spacious wiring compartment, Panel enclosure design with wiring diagram on inside front cover reduces labor time, High efficiency for low cost operation, Compliant with NEMA TP-1 standards, Single and three phase models.
Standard UL Listed E25872
UPC 783472001941
GTIN 00783472001941
Item Type Ventilated Distribution Transformer
Length 16
Width 16
Height 4.88
Environmental Conditions 90 RH Humidity Range
Voltage Rating 115 - 230
Wattage 12
