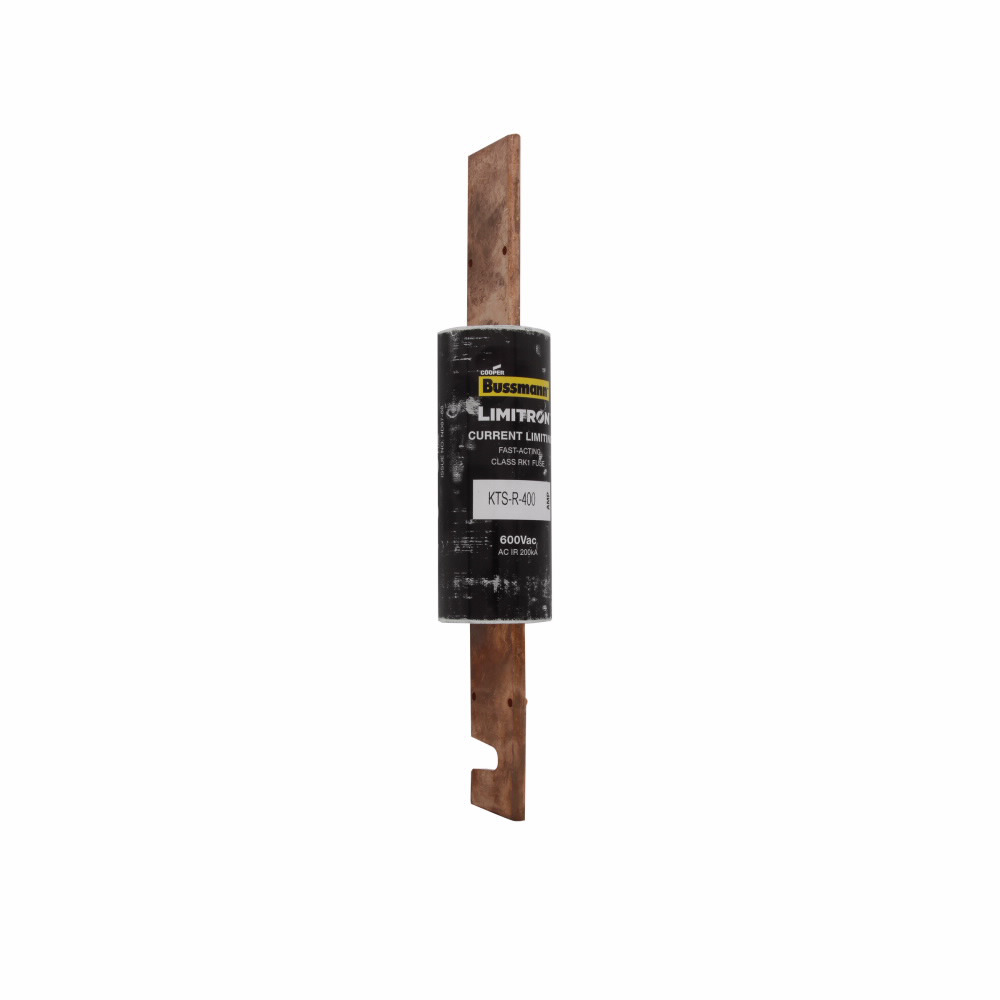

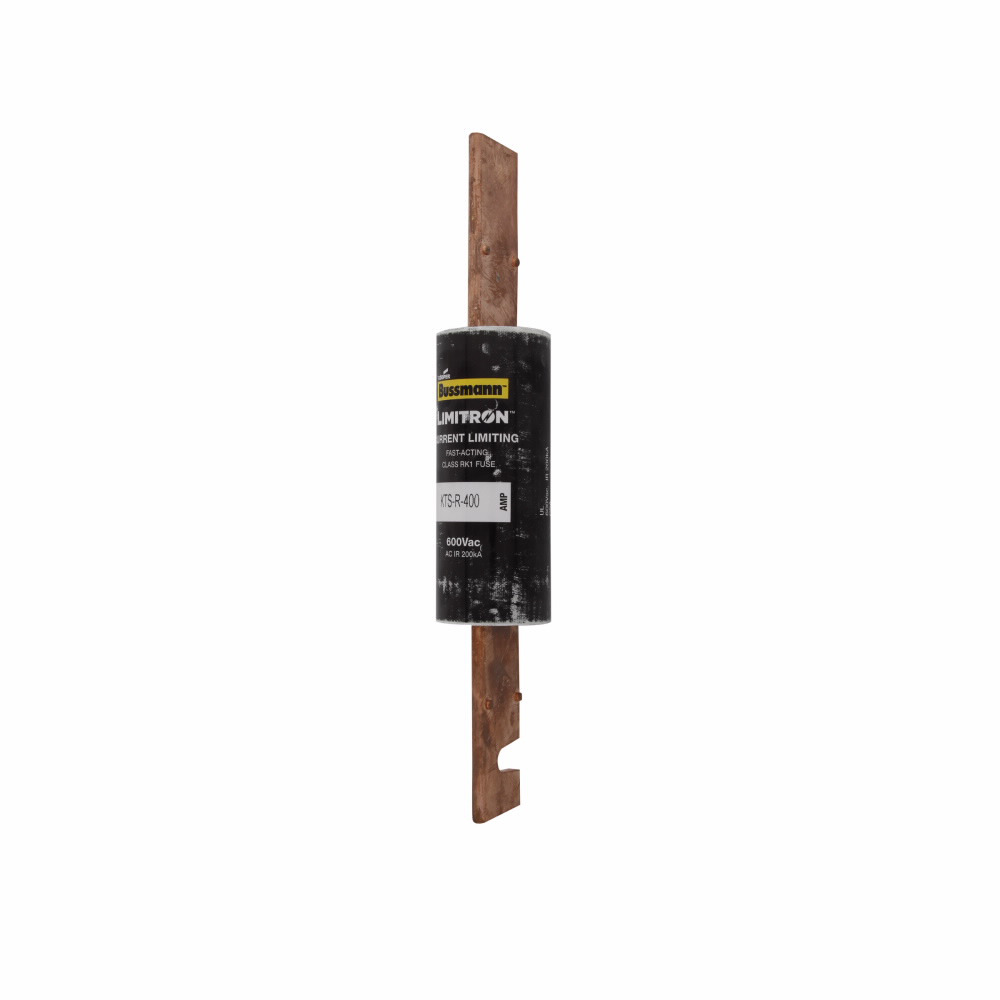

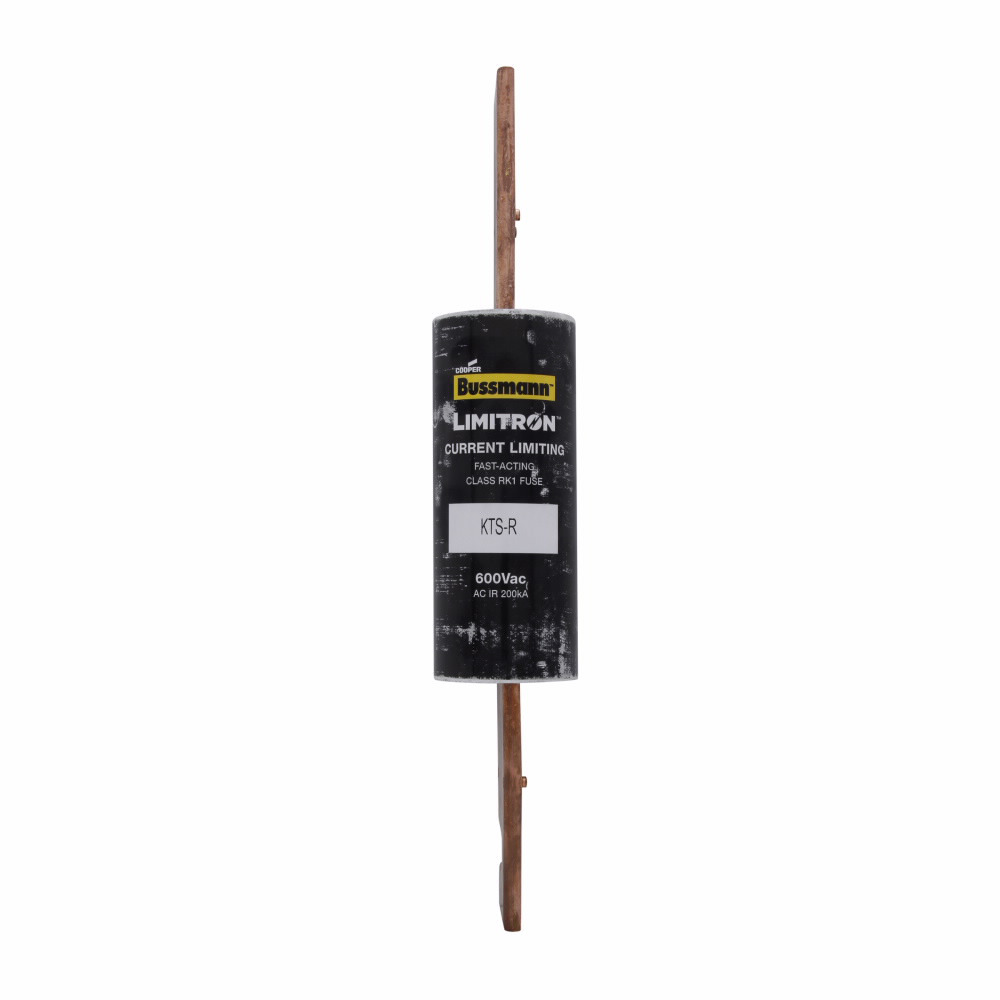

Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 300 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
- MFR:
- Eaton Bussmann
- MFR #:
- KTS-R-300
- UPC:
- 051712417235
- Item #:
- 220270
Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 300 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
- MFR #:
- KTS-R-300
- UPC:
- 051712417235
- Item #:
- 220270
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
| Catalog Number | KTS-R-300 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 300 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Blade end x blade end |
| Interrupt Rating | 200 kAIC at 600 Vac |
| Material | Melamine glass tube |
| Special Features | Ferrule design |
| Standard | CE Marked |
| UPC | 051712417235 |
| GTIN | 00051712417235 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 2.00 In Diameter X 11.63 In Length |
| Voltage Rating | 600 V |
