Appleton

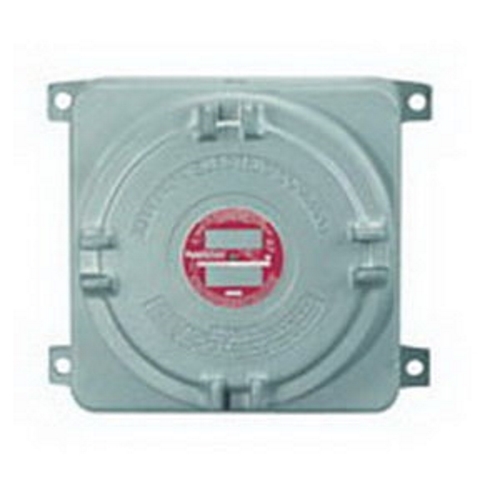

GUBB-22-A Unilets Dust-Ignitionproof Explosionproof Cast Junction Box With Cover, 224 cu-in Capacity, For Use With UNILETS Threaded Metal Conduit, Malleable Iron

MFR:
Appleton Electric
MFR #:
GUBB-22-A
UPC:
781381324472
Item #:
220100

UNILETS GUBB Cast Junction Box, Material: Malleable Iron, Size: 7.19 IN Cover Opening, Mounting: Lugs, Cubic Capacity: 224 CU-IN, Form Number: 2, Width: 8 IN, Depth: 6.88 IN, Height: 10 IN, Cover Opening: 7.19 IN, Standard: UL 886 (UL 1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875 Certified, Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, NEMA 7BCD, 9EFG, For Use With Unilets Threaded Metal Conduit

Manuals & Documentation
Catalog Number GUBB-22-A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin United States
Made in USA Yes
Application For Use With Unilets Threaded Metal Conduit
Cubic Capacity 224 CU IN
Material Malleable Iron
Mounting Lugs
Special Features Provided with mounting lugs; Furnished with covers; Wide selection of sizes and locations for drilled and tapped conduit openings; Suitable for use as an enclosure for relays, instrument and other control apparatus in classified locations; Explosionproof; Dust-ignitionproof; Ideal where number and size of conductors require a junction box with additional space; Drilled and tapped openings from 1/2 IN through 4 IN as specified
Standard UL 886 (UL 1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875 Certified, Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, NEMA 7BCD, 9EFG
RoHS Indicator Contact Manufacturer
UPC 781381324472
GTIN 00781381324472
Item Type GUBB Cast Junction Box
Length 12.3000
Length UOM Inch
Width 10.6000
Width UOM Inch
Height 8.7000
Height UOM Inch
Weight 17.750
Weight UOM Pounds
Size 7.19 IN Cover Opening
