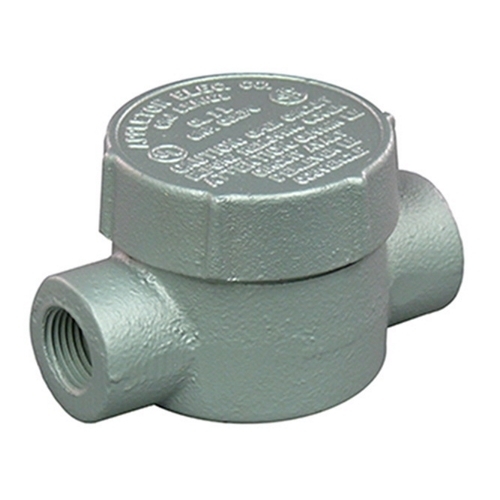

Conduit Outlet Box, Dust-Ignitionproof Explosionproof Raintight, Series: GRJ, 3/4 in, 2.13 in Cover Opening Size, 7.3 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 2.88 in H x 2.88 in W x 2.06 in D
- MFR:
- Appleton Electric
- MFR #:
- GRJC75
- UPC:
- 781381440257
- Item #:
- 219739
Conduit Outlet Box, Dust-Ignitionproof Explosionproof Raintight, Series: GRJ, 3/4 in, 2.13 in Cover Opening Size, 7.3 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 2.88 in H x 2.88 in W x 2.06 in D
- MFR #:
- GRJC75
- UPC:
- 781381440257
- Item #:
- 219739
UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN GRJC Hub, Cubic Capacity: 7.3 CU-IN, Knockouts: No, Cover Opening: 2.13 IN, Height: 2.88 IN, Width: 2.88 IN, Depth: 2.06 IN, Finish: T
Manuals & Documentation
Features
- Explosion proof, dust-ignition proof and raintight
- Furnished with internal ground screw
- Provides great resistance to corrosion
| Catalog Number | GRJC75 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (2) 3/4 IN GRJC Hub |
| Cubic Capacity | 7.3 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover; General purpose wiring; Externally threaded body with internally threaded cover; Small, round conduit outlet boxes; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Standard | UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381440257 |
| GTIN | 00781381440257 |
| Item Type | Outlet Box |
| Length | 17.3000 |
| Length UOM | Inch |
| Width | 11.0000 |
| Width UOM | Inch |
| Height | 1.7000 |
| Height UOM | Inch |
| Weight | 0.610 |
| Weight UOM | Pounds |
| Size | 3/4 |
