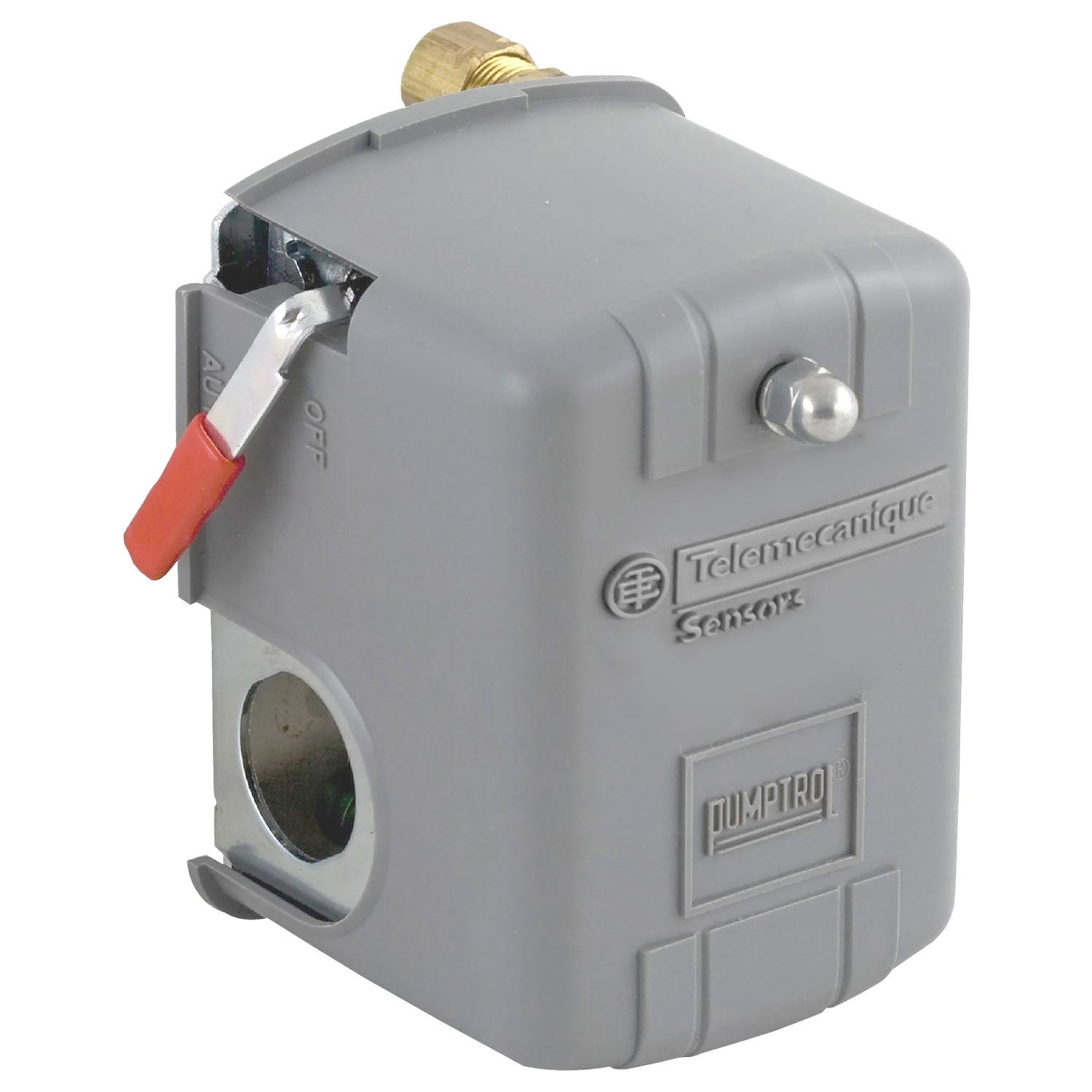

9013FRG2J35M5 Pumptrol Type F Electromechanical Pressure Switch, 23 to 65 psig Pressure, 2NO DPST-DB Contact, Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013FRG2J35M5
- UPC:
- 785901150862
- Item #:
- 21682
9013FRG2J35M5 Pumptrol Type F Electromechanical Pressure Switch, 23 to 65 psig Pressure, 2NO DPST-DB Contact, Screw Clamp Connection
- MFR #:
- 9013FRG2J35M5
- UPC:
- 785901150862
- Item #:
- 21682
water pump switch 9013FR - adjust diff. - 50-30 psi - reverse action
Manuals & Documentation
| Catalog Number | 9013FRG2J35M5 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control electrically driven water pumps;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NO, snap action, DPST-DB, Form XX |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Special Features | Maintained manual cut-in lever (AUTO-ON) |
| Standard | CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529,NSF ANSI 61 ANNEX G-UL 508-CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=388703&lang=en-us |
| UPC | 785901150862 |
| GTIN | 00785901150862 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 65 PSI 23-65 PSI) |
