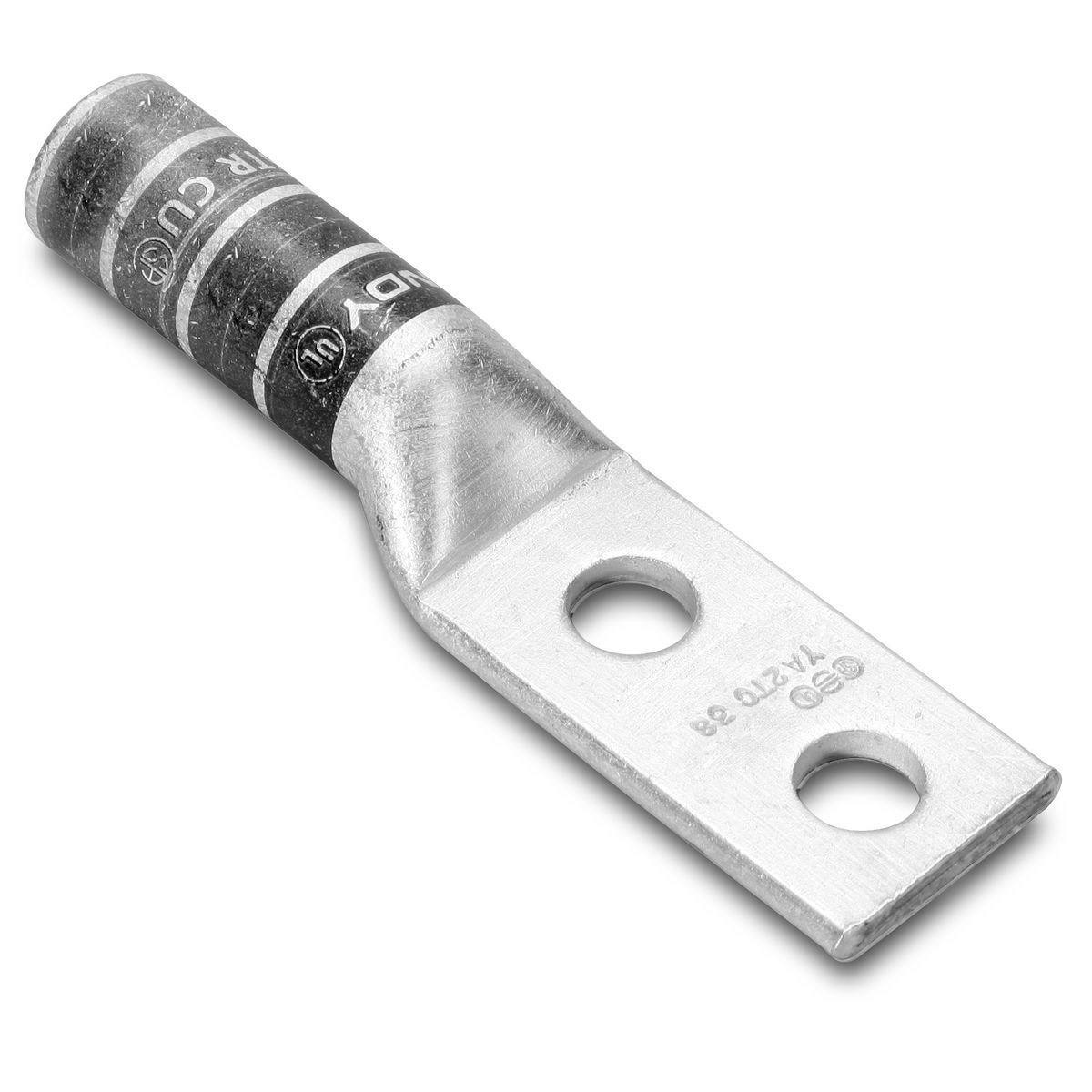

YA362TC38 YA-2TC 2-Hole Compression Lug, 600 kcmil Stranded Copper Conductor, Die Code: 22/472, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA362TC38
- UPC:
- 781810021132
- Item #:
- 216041
YA362TC38 YA-2TC 2-Hole Compression Lug, 600 kcmil Stranded Copper Conductor, Die Code: 22/472, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YA362TC38
- UPC:
- 781810021132
- Item #:
- 216041
Manuals & Documentation
| Catalog Number | YA362TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 22, Tongue Angle: Straight, Wire Strip Length: 2-3/4 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Color Code: Green, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U36RT, U32ART Die, (4), Y46 Tool, U36RT, U32ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4) |
| Standard | UL 486A-486B |
| UPC | 781810021132 |
| GTIN | 00781810021132 |
| Item Type | Long Barrel, Tin Plated |
| Voltage Rating | 35 |
