Square D

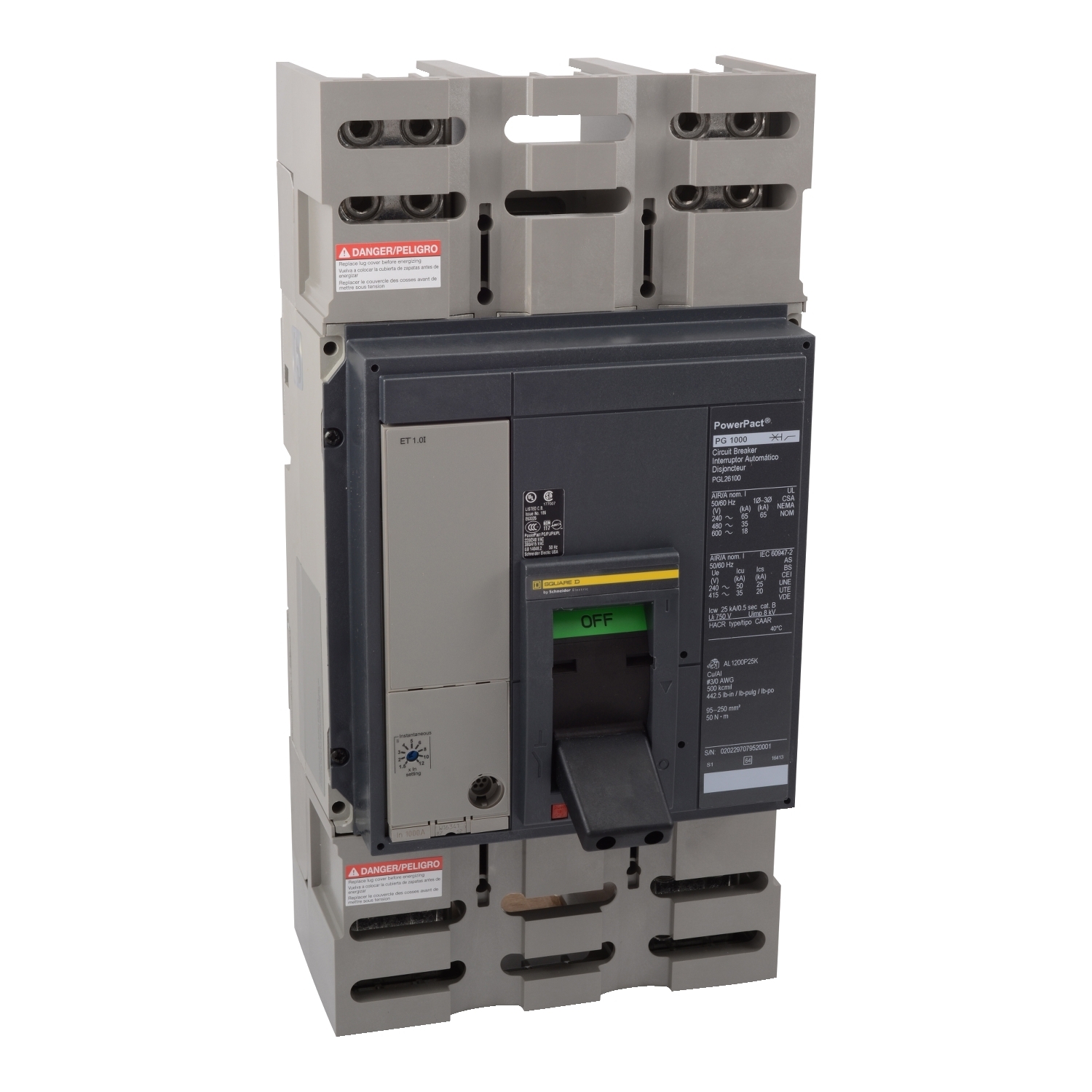

PGL36120U44A PowerPact MasterPact Type PGL Molded Case Circuit Breaker, 600 V AC, 1200 A, 18/35/65 kA Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
PGL36120U44A
UPC:
785901942603
Item #:
215857

PowerPacTP-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number PGL36120U44A
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Distribution
Connection Lugs, load;lugs, line; 4 x AWG 3/0...500 kcmil aluminium/copper
Control Toggle
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431927&lang=en-us
UPC 785901942603
GTIN 00785901942603
Item Type Circuit breaker
Width 8.27
Width UOM Inch
Height 16.16
Height UOM Inch
Depth 8.05 IN
Trip Type Electronic, ammeter, MicroLogic 6.0 A, LSIG
